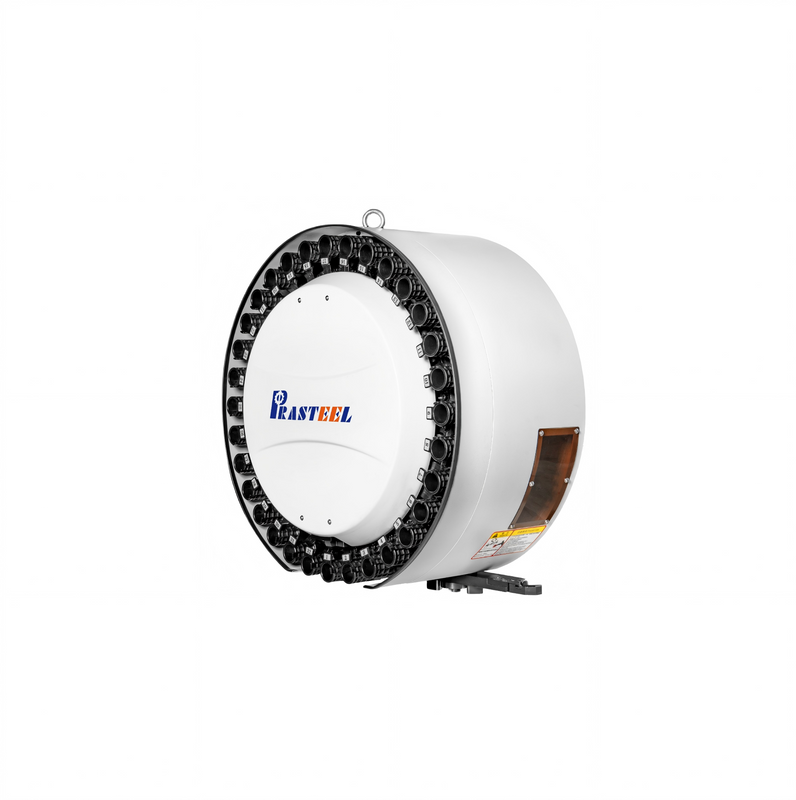

Vertical Disc Tool Magazine 32T

1. Double roller cam splitting mechanism, high splitting accuracy, low failure rate, simple structure, convenient maintenance and long service life.
2. All imported engineering plastic knife cover, light weight, high strength, not easy to damage.
3. Separate knife arm, high concentricity and low noise.
4 The whole series of electronic switches adopts imported originals, and the quality is guaranteed.
Availability:
Quantity:
  • 32T

  • Prasteel

Pocket  Spec           BT40/CAT40/DIN40/HSK63           BT50/CA50/DIN50/HSK100
Tool  Capacity                               32T                             32T
Pocket  Pitch(mm)                               80                             110

Max.Tool  Diameter

With  Adjacent  Pocket  Full/Empty(mm)

                            75/150                          110/200
Max.Tool  Weight(kg)                                8                              15
Tool  Change  Time(sec/50hz)                           1.1-2.9                        2.91-8.28
Magazine  Speed(sec/tool)                             0.75                            0.75
Tool  Change   SelectionRoller  Gear  Cam
