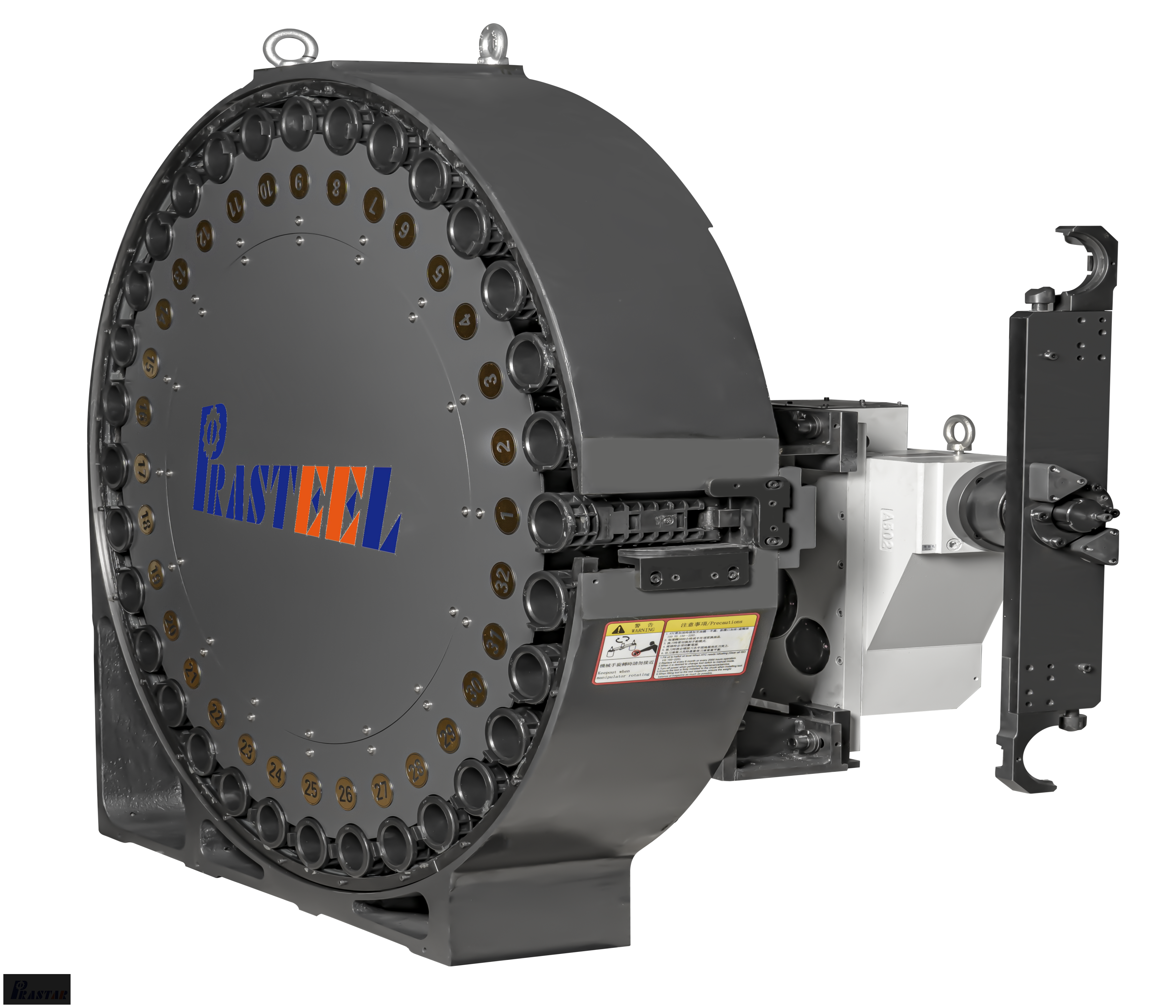

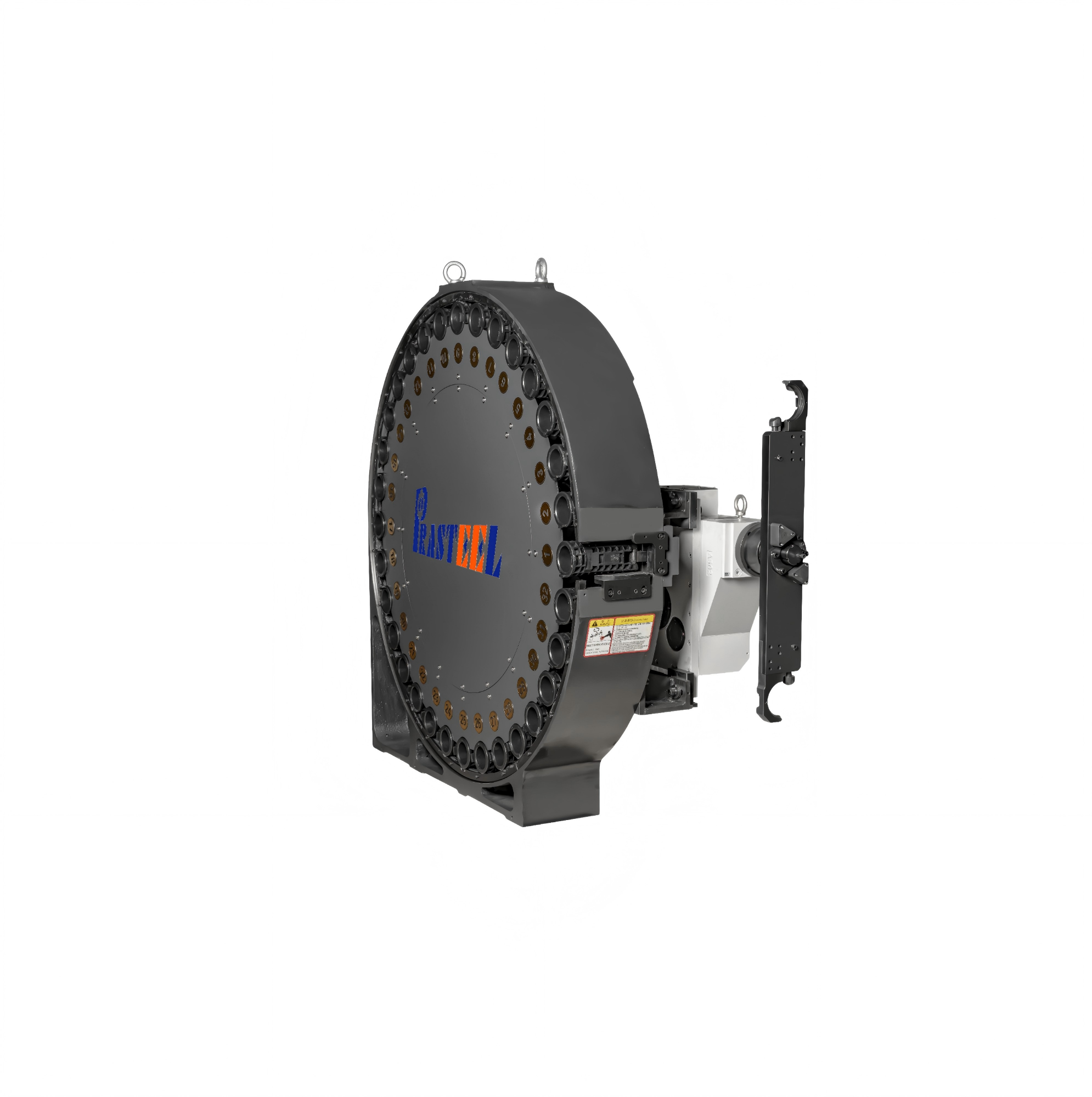

Horizontal Disc Tool Magazine 32T

1.Double roller cam splitting mechanism, high splitting accuracy, low failure rate, compact structure, convenient maintenance and long service life.
2.Fully imported engineering plastic knife cover, light weight, high strength, not easy to damage.
3.Separate knife arm, high concentricity and low noise.
4.The whole series of electronic switches adopts imported originals, and the quality is guaranteed.

Availability:

Quantity:



Inquire Add to Basket

Model:
32T
Brand:
Prasteel

Product Description

Pocket Spec	BT40/CAT40/DIN40/HSK63	BT50/CA50/DIN50/HSK100
Tool Capacity	32T	32T
Pocket Pitch	80	127
Max.Tool Diameter With Adjacent Pocket Full/Empty(mm)	70/150	125/240
Max.Tool Weight(kg)	8	15
Tool Change Time(sec/50hz)	1.1-2.9	2.91-8.28
Magazine Speed(sec/tool)	0.75	0.75
Tool Change Selection	Roller Gear Cam
