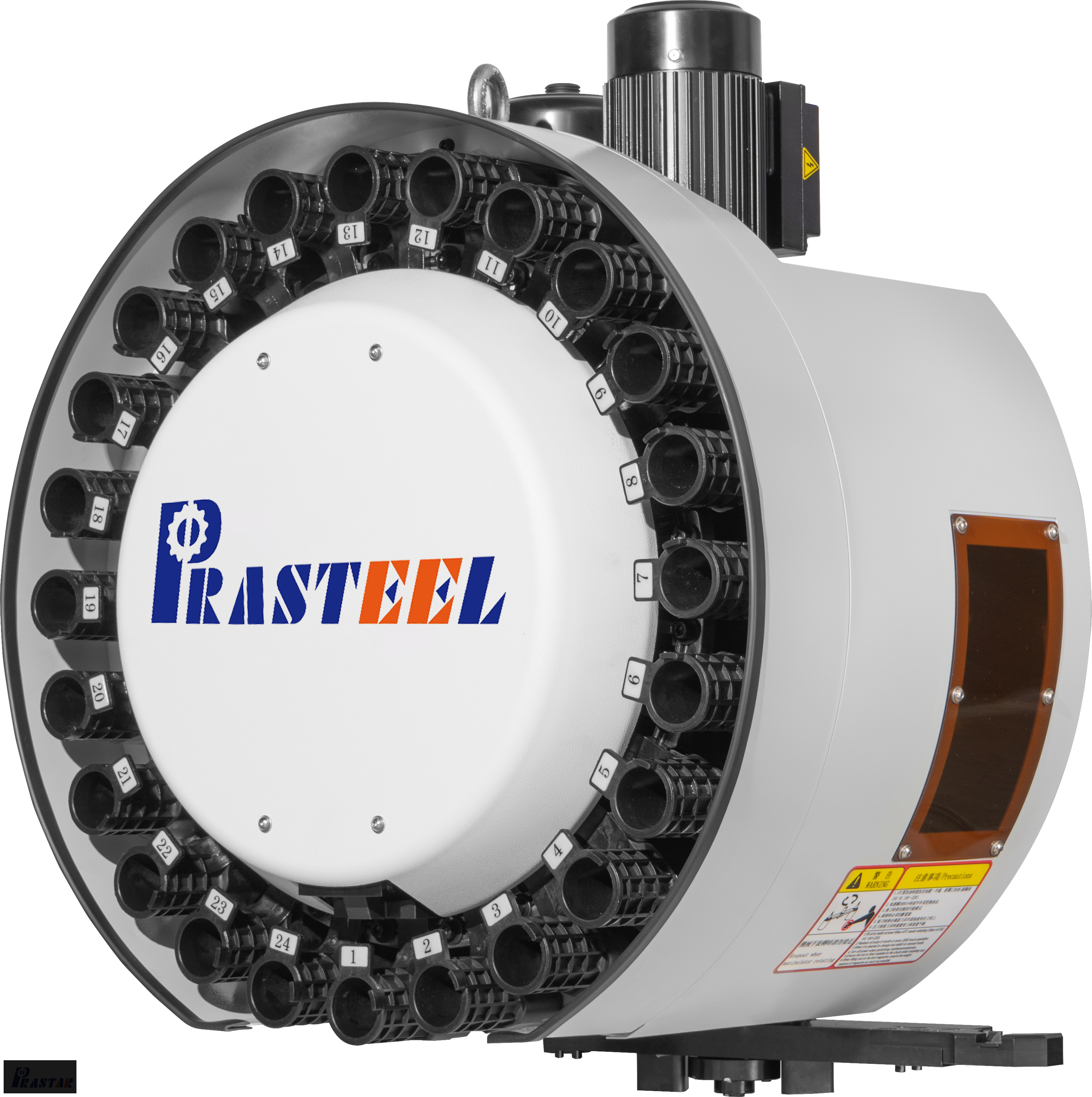

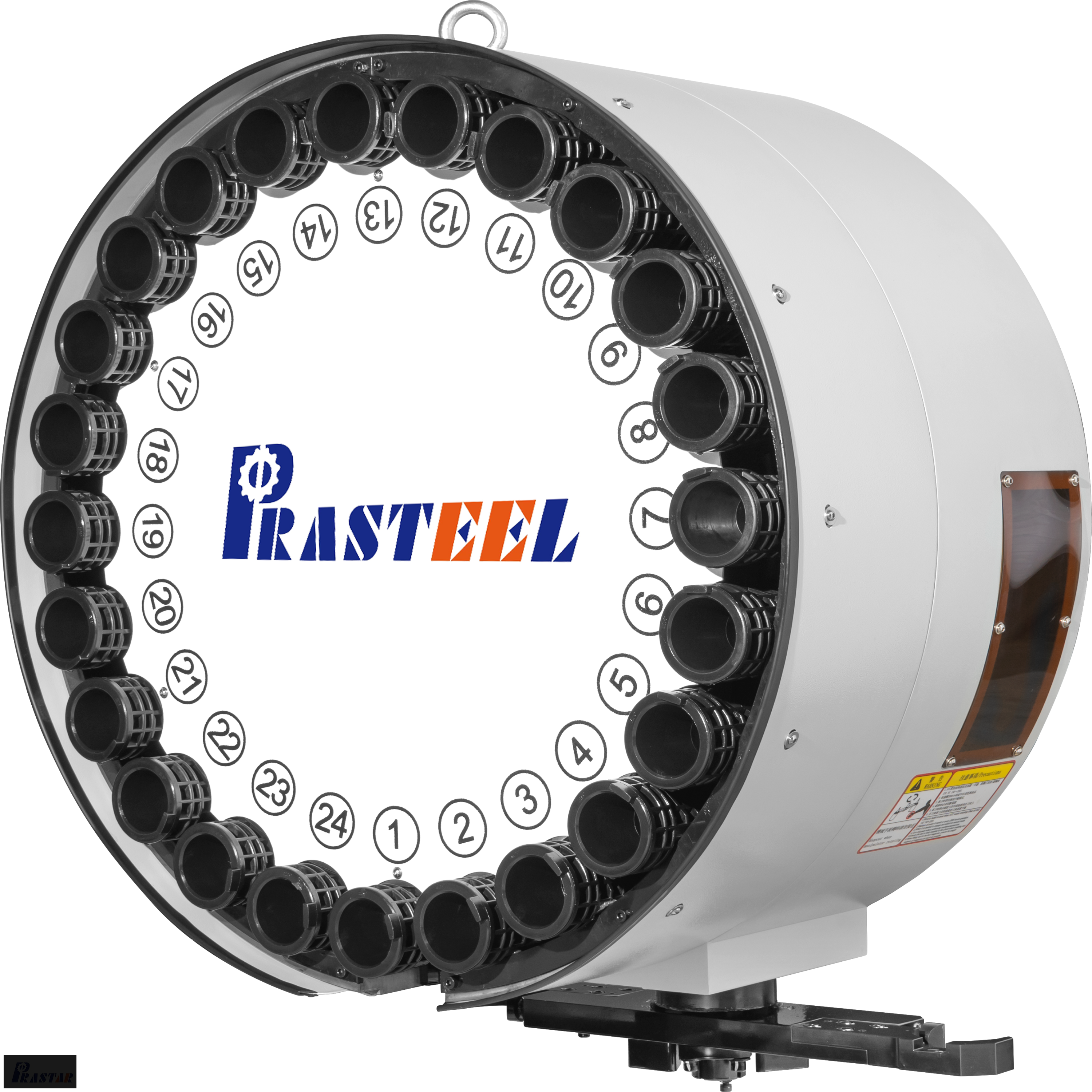

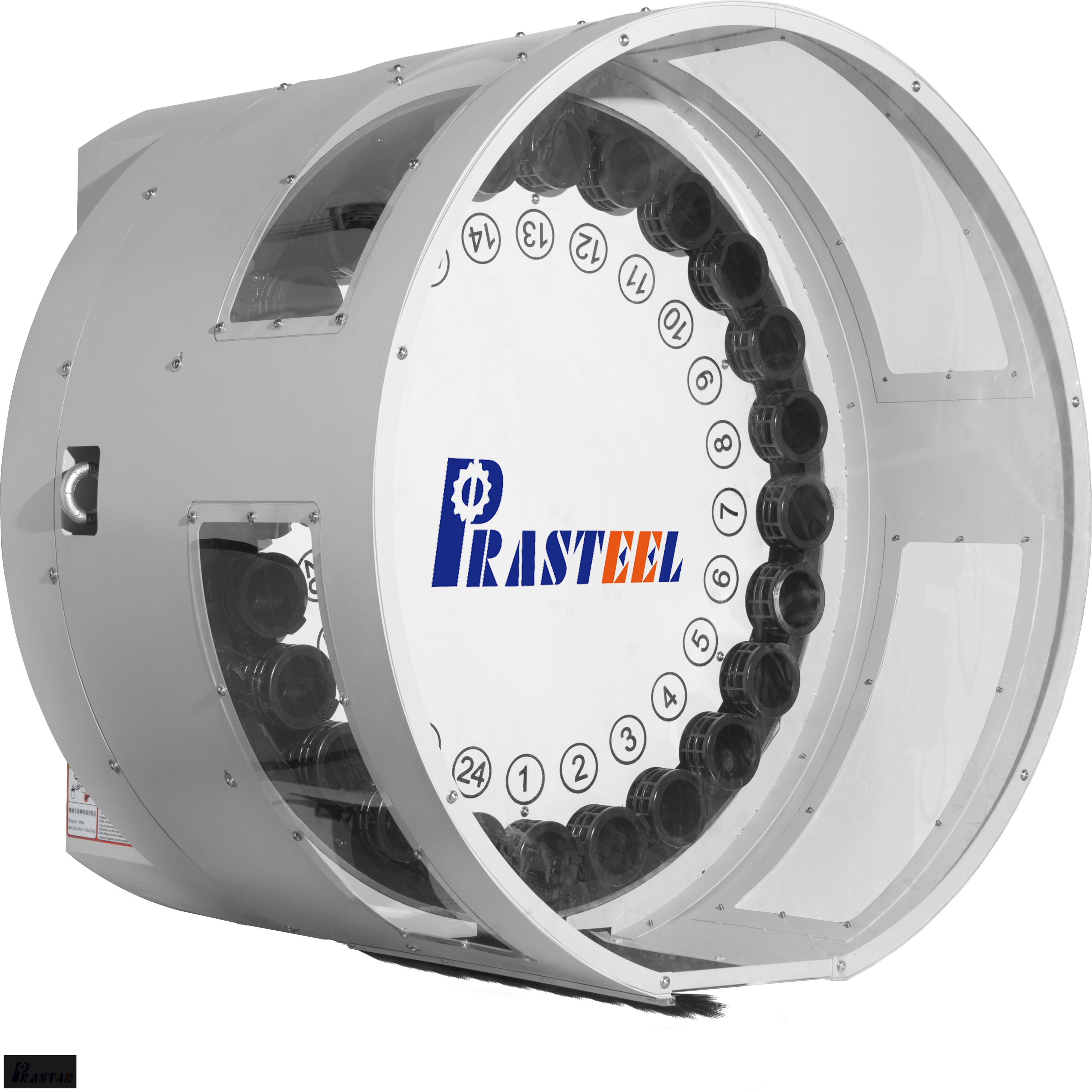

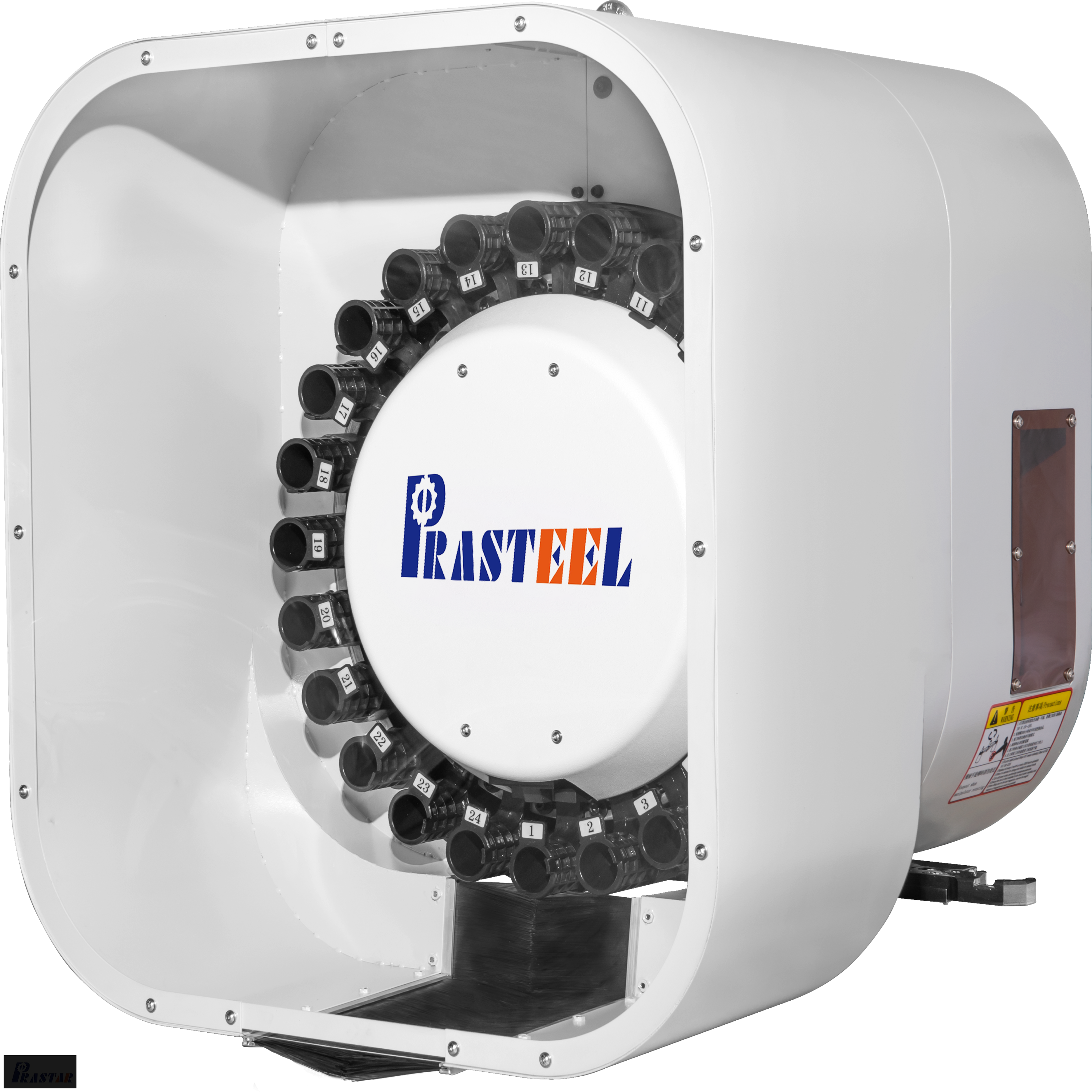

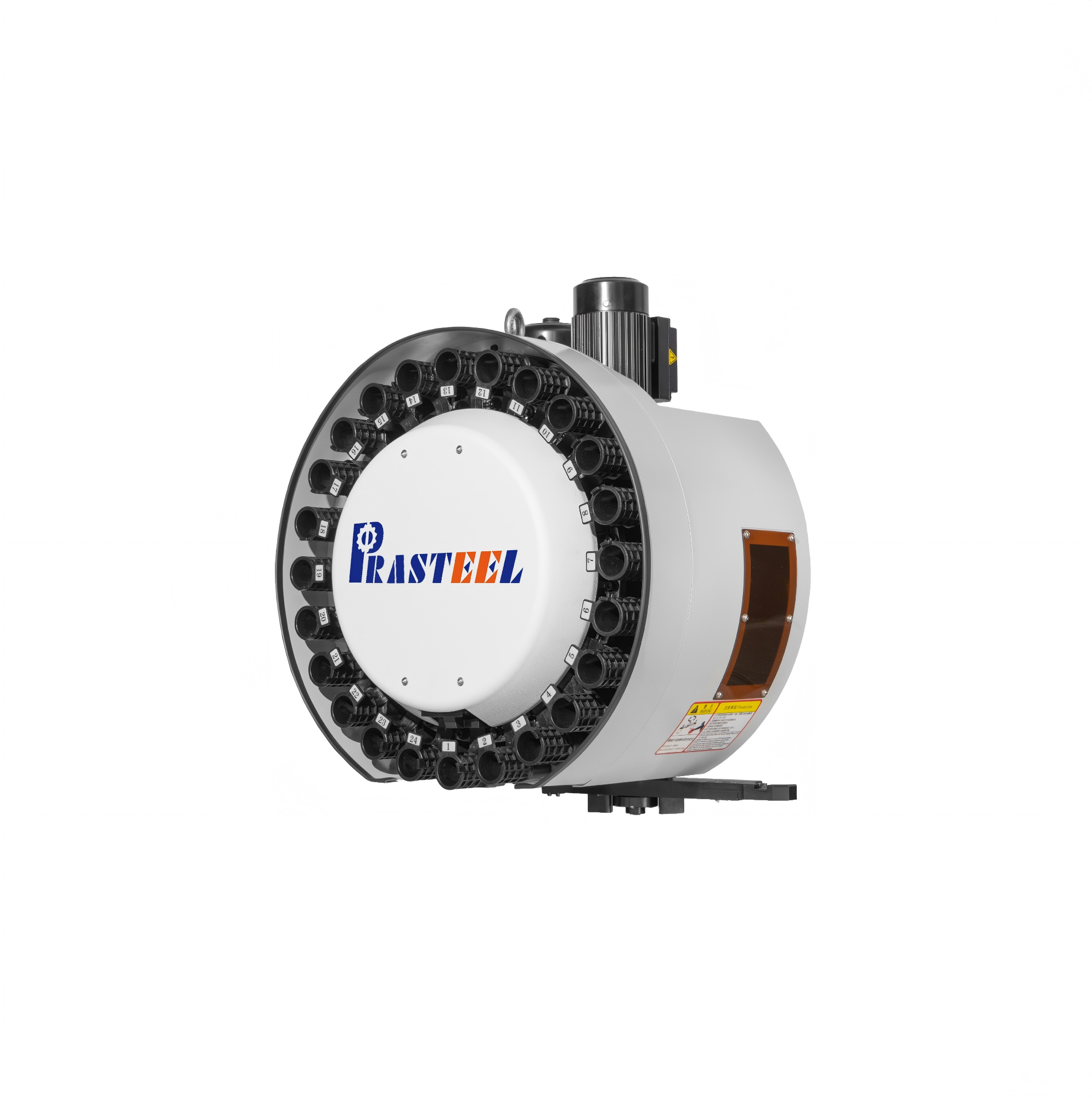

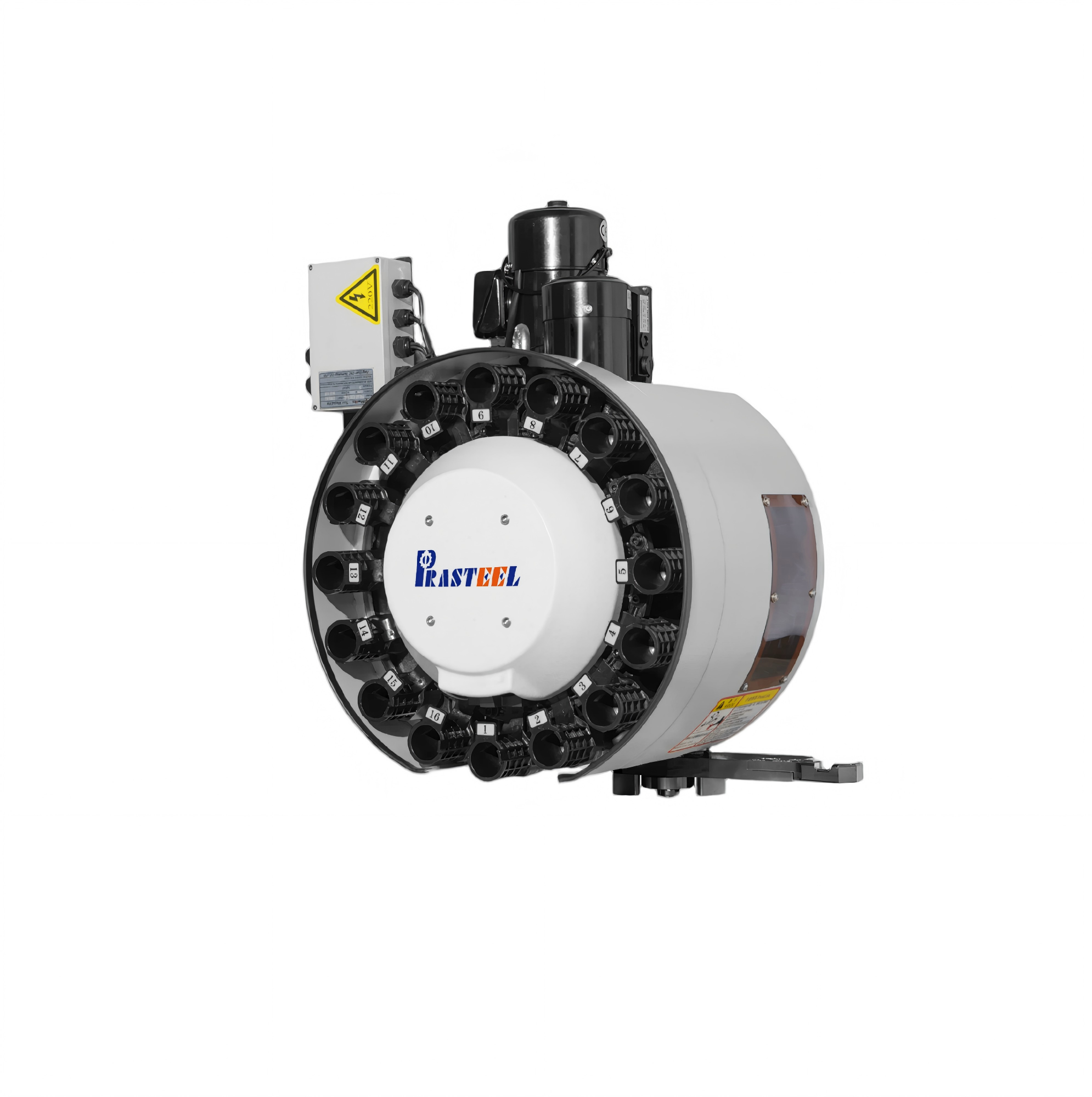

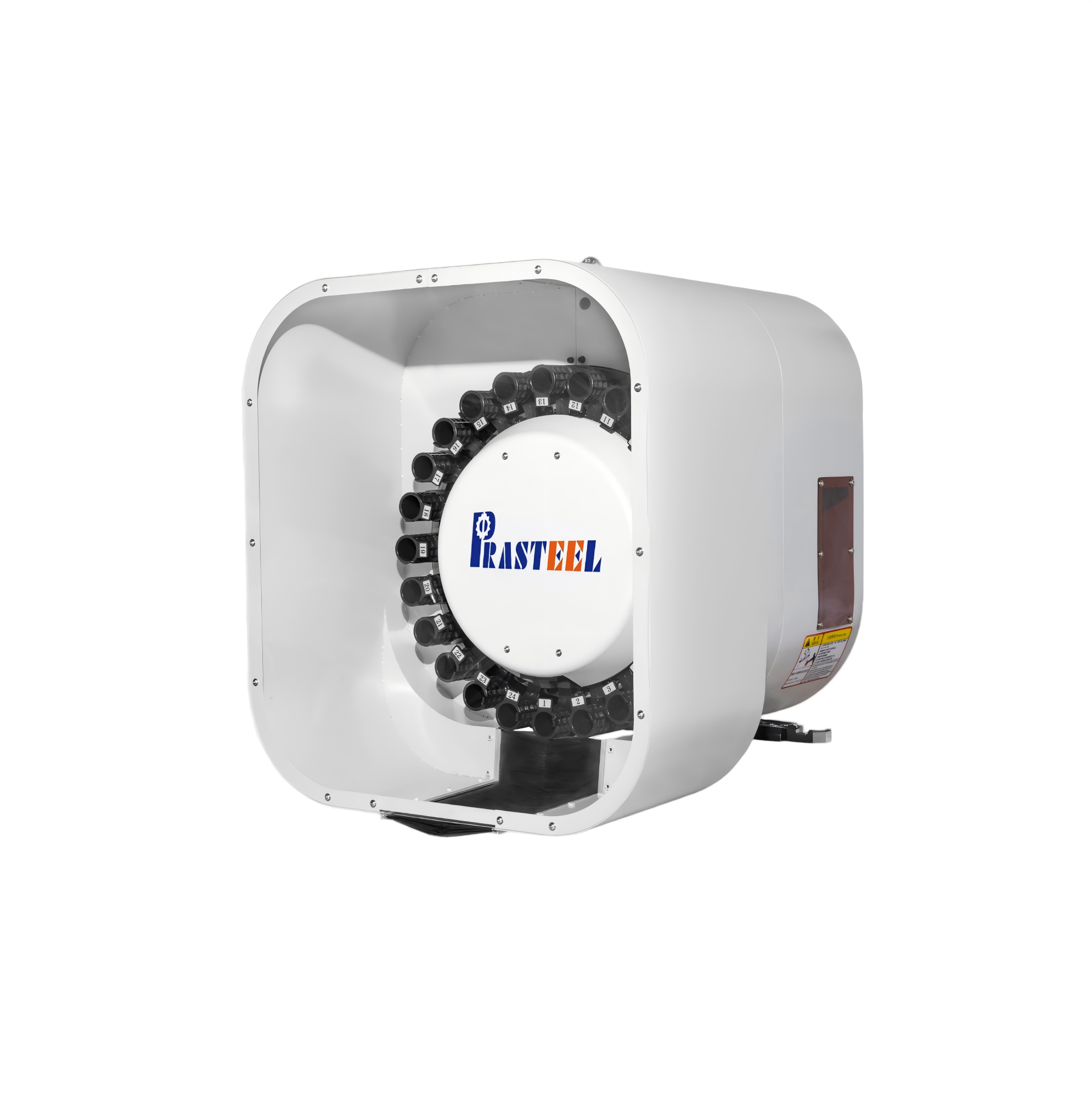

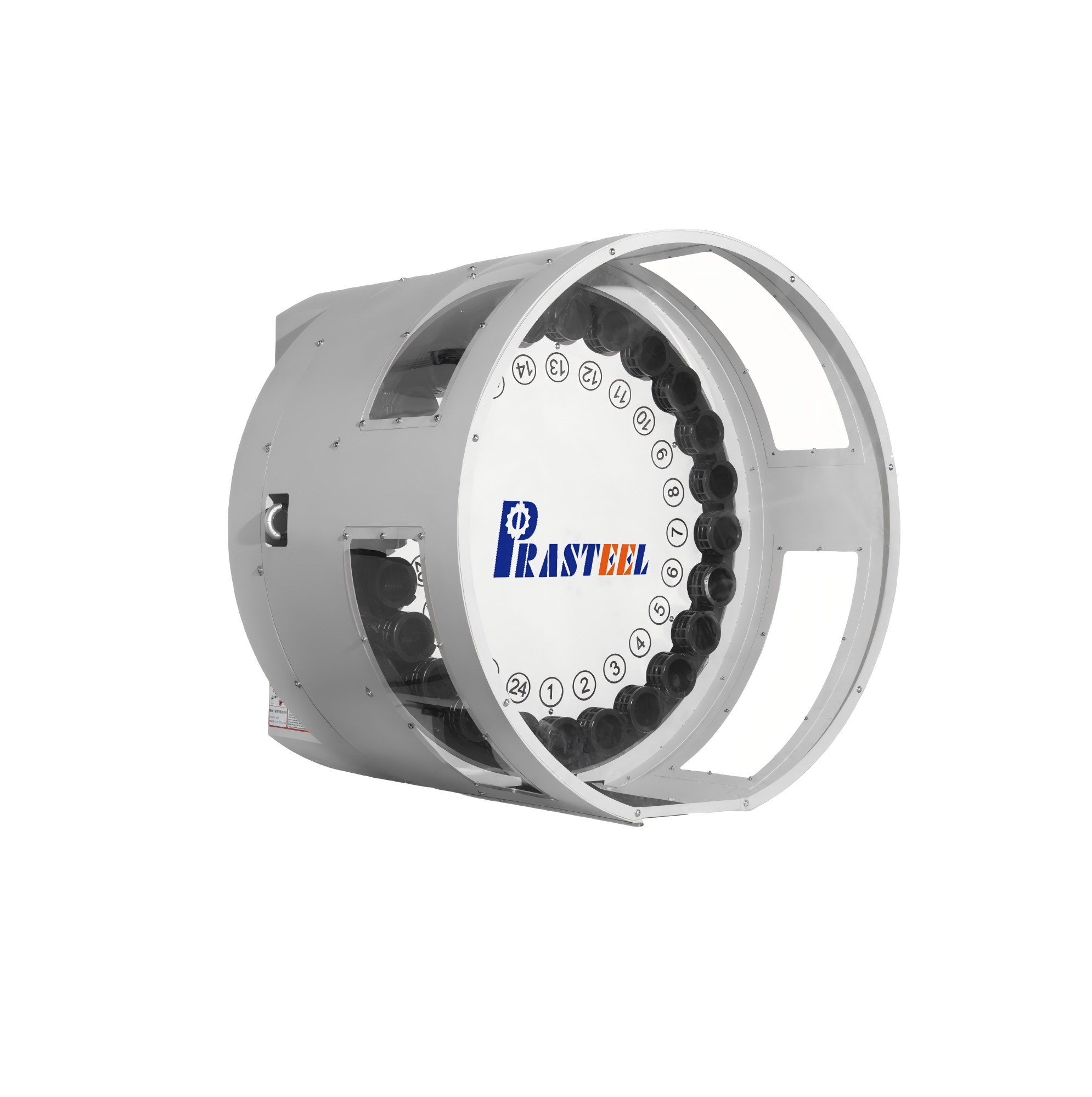

Vertical Disc Tool Magazine 24T

1. Double roller cam splitting mechanism, high splitting accuracy, low failure rate, simple structure, convenient maintenance and long service life.
2. All imported engineering plastic knife cover, light weight, high strength, not easy to damage.
3. Separate knife arm, high concentricity and low noise.
4 The whole series of electronic switches adopts imported originals, and the quality is guaranteed.
Availability:
Quantity:
  • 24T

  • Prasteel

Pocket  Spec         BT40/CAT40/DIN40/HSK63                 BT50/CA50/DIN50/HSK100
Tool  Capacity                            24T                                  24T
Pocket  Pitch(mm)                             80                                  110

Max.Tool  Diameter

With Adjacent Pocket Full/Empty(mm)

                         75/150

                               110/200
Max.Tool  Weight(kg)                              8                                    15
Tool  Change  Time(sec/50hz)                          1.1-2.9                              2.91-8.28
Magazine  Speed(sec/tool)                            0.75                                   0.75
Tool  Change  SelectionRoller  Gear  Cam
