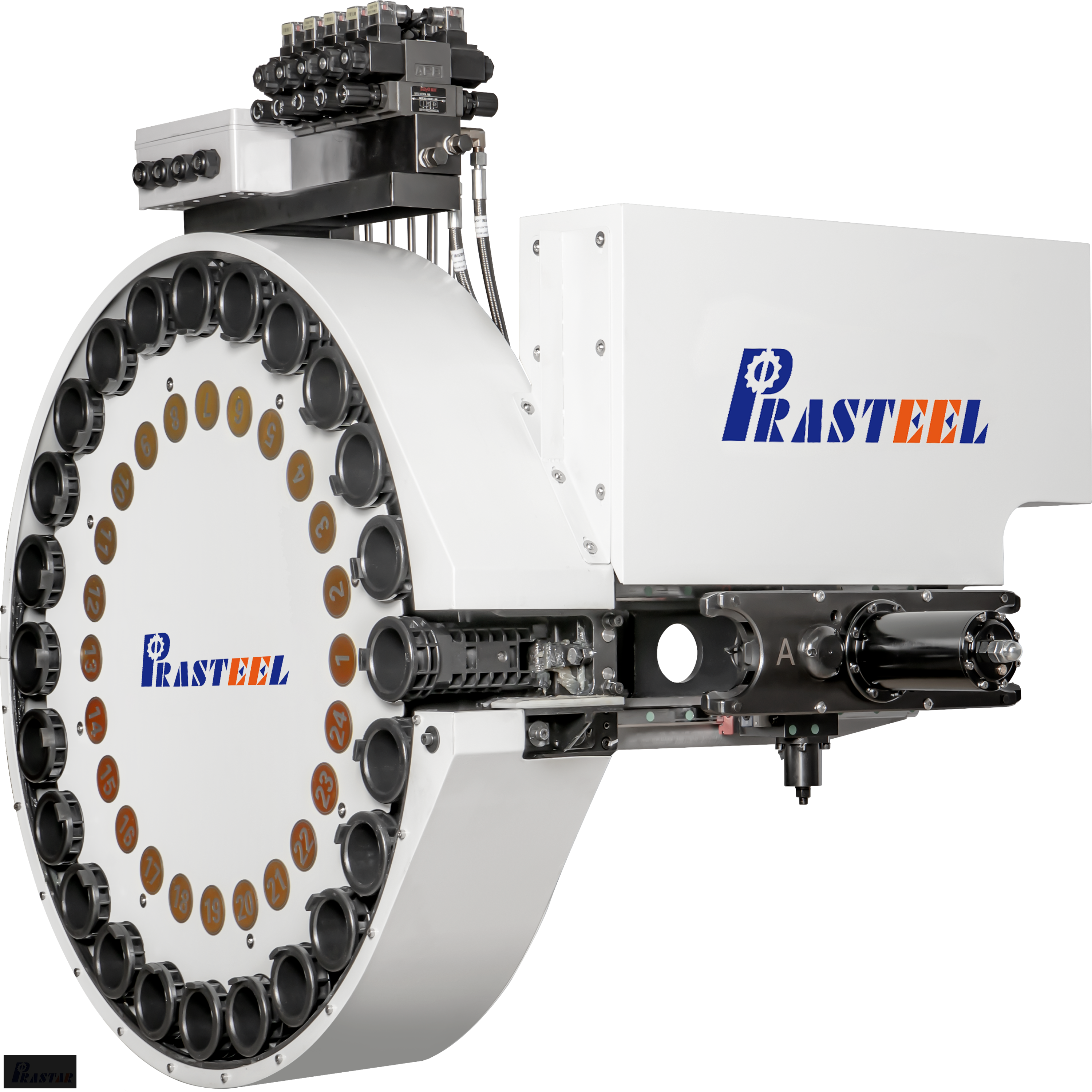

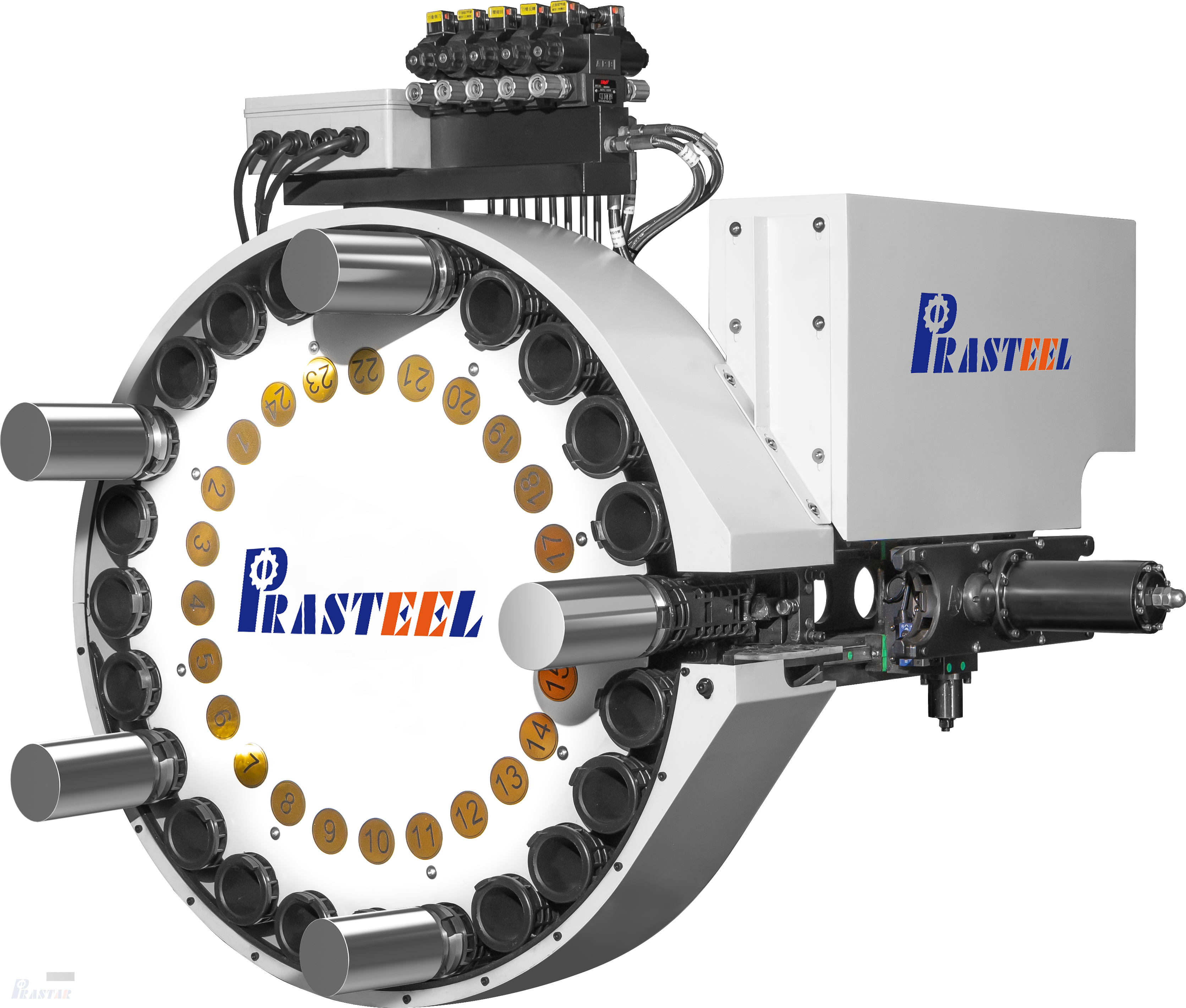

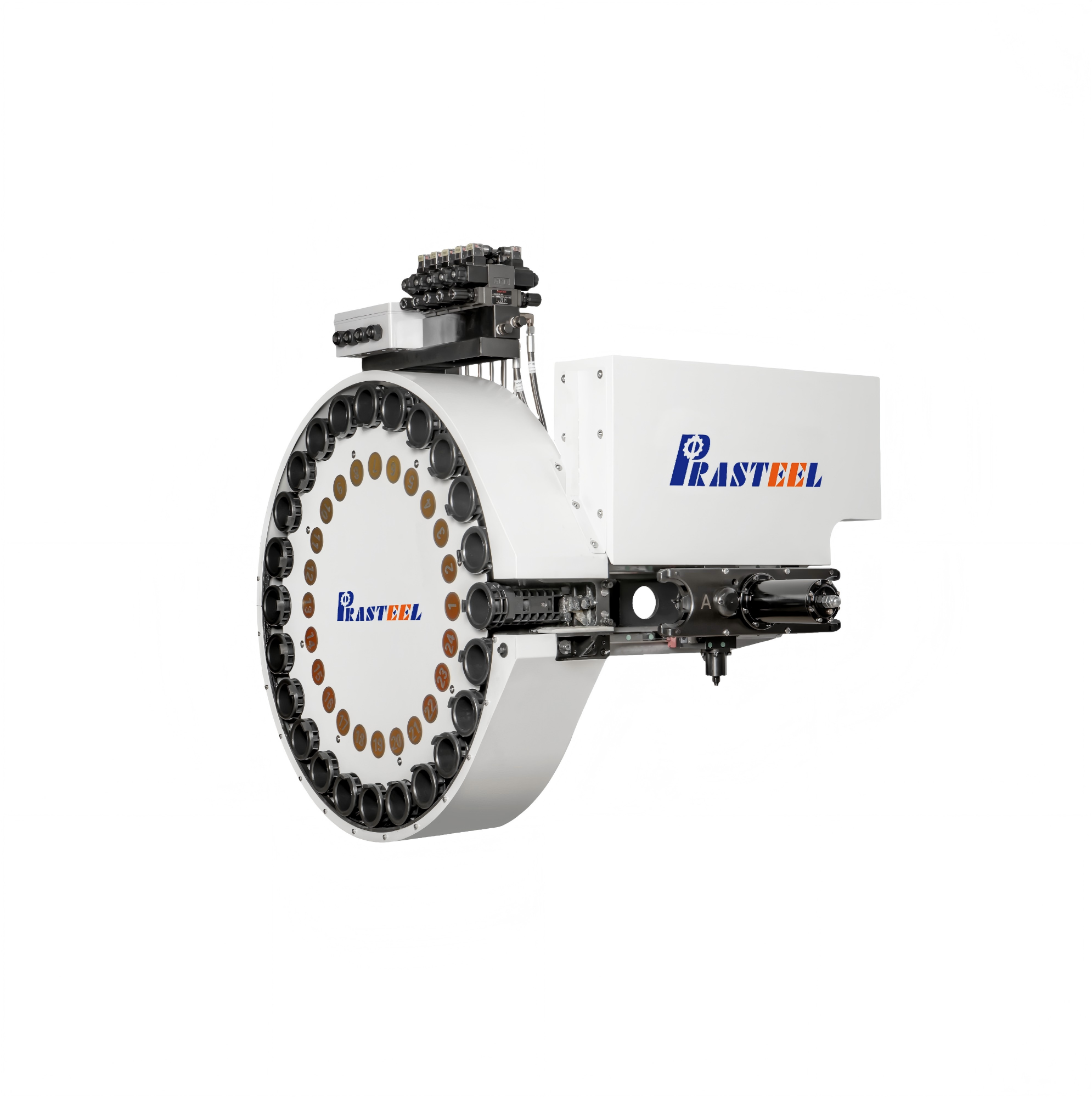

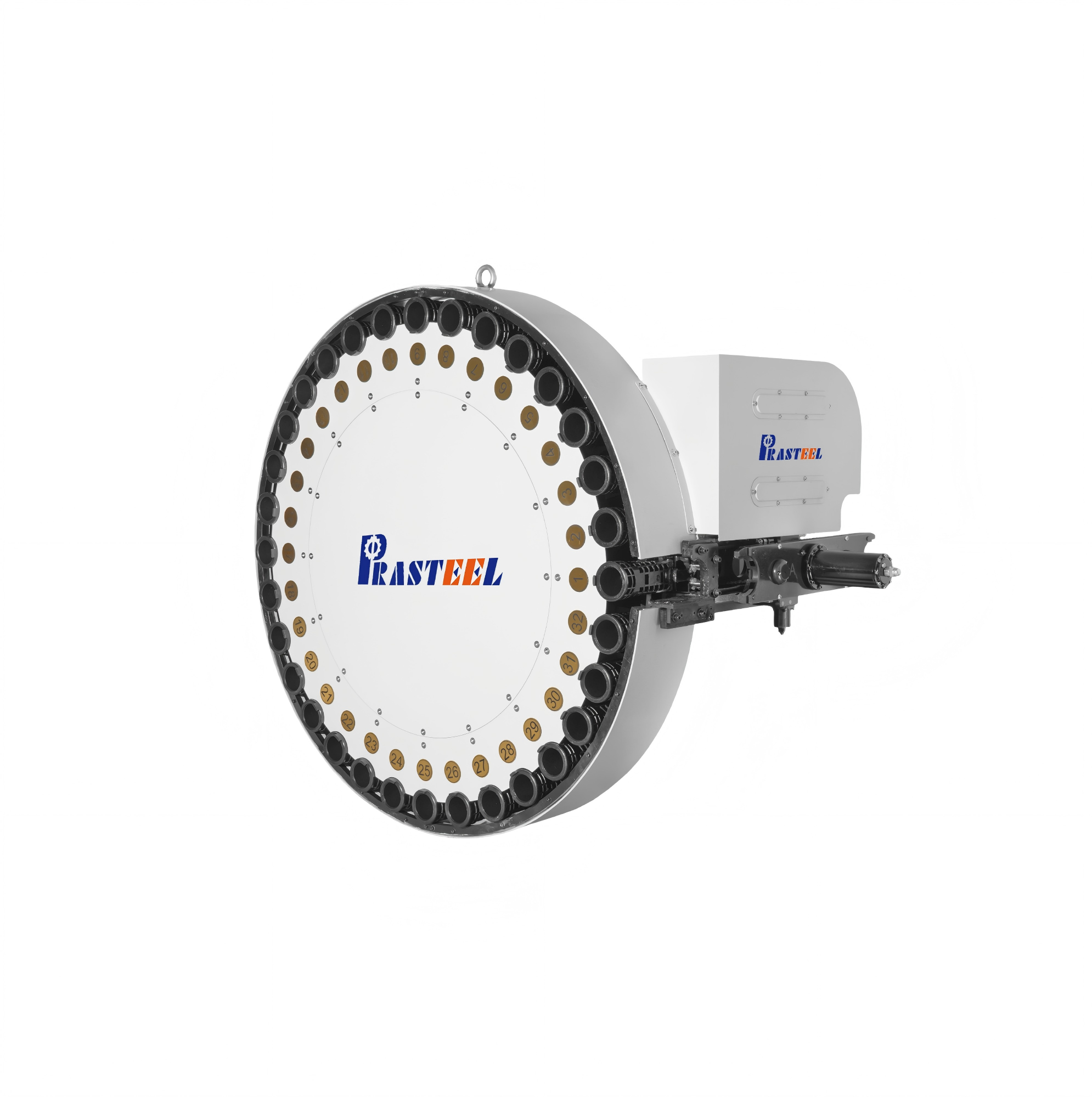

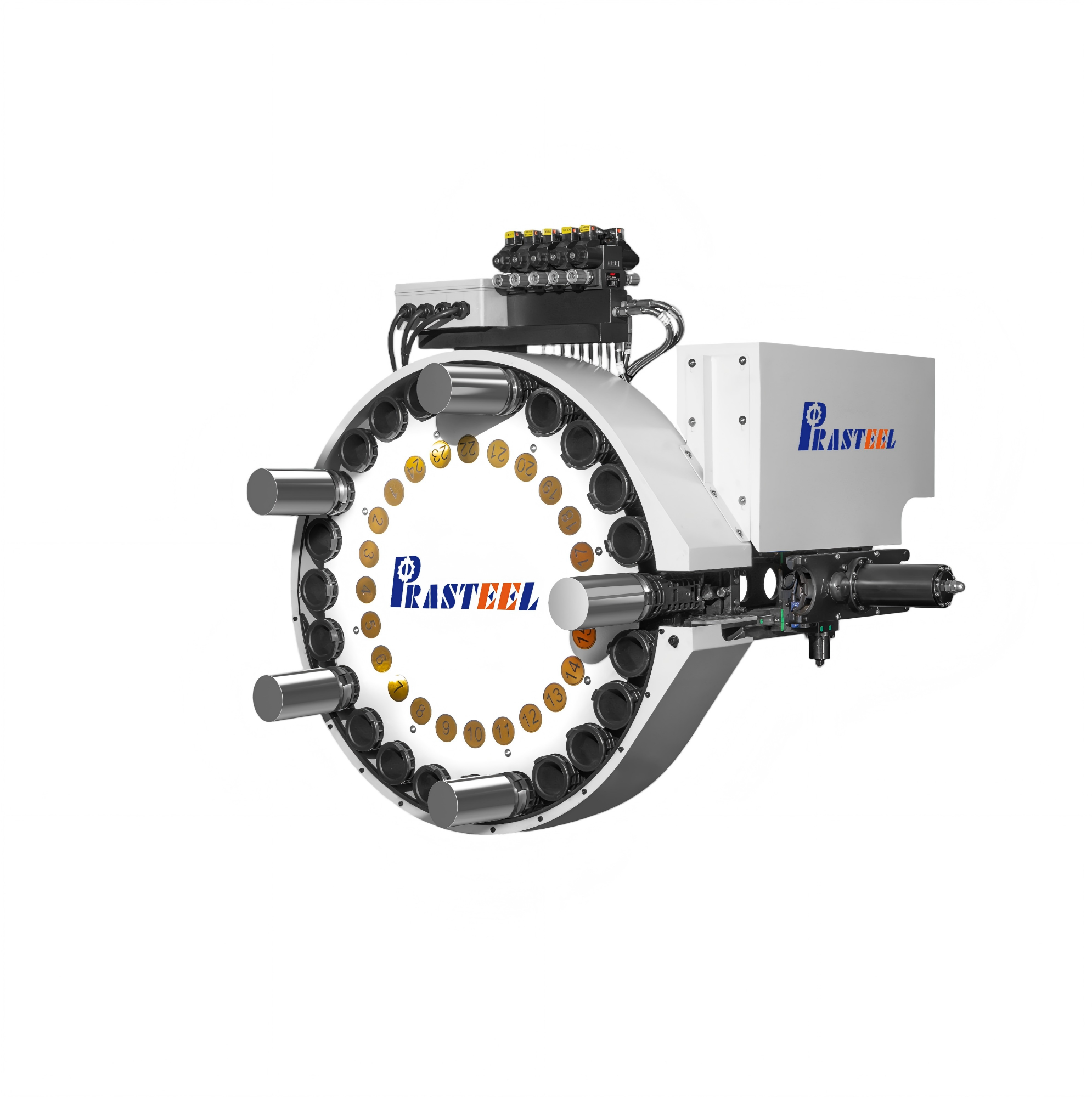

Disc Type Hydraulic Translation Tool Magazine 24T

1.Disc hydraulic translation tool magazine can grasp heavy knives and long knives
2.Strong structure and high stability
3. Non-standard (can be changed according to the shape and requirements of the machine tool)
Availability:
Quantity:
Inquire Add to Basket

  • 24T

  • Prasteel

Pocket  Spec            BT40/CAT40/DIN40/HSK63            BT50/CA50/DIN50/HSK100
Tool  Capacity                            24T/32T                        24T/32T/40T

Max.Tool   Diameter

With  Adjacent  Pocket  Full/Empty(mm)

                             75/150                            125/250
Max.Tool  Weight(kg)                                 8                                 25
Tool  Change  Time(sec/50hz)                            3(ATC)
                            3(ATC)
Magazine  Speed(sec/tool)                              0.75                                  1
Tool  Management  Mode
                            Random                            Random
Tool   Change  SelectionHydraulic  Rock  And  Gear  Machanism
