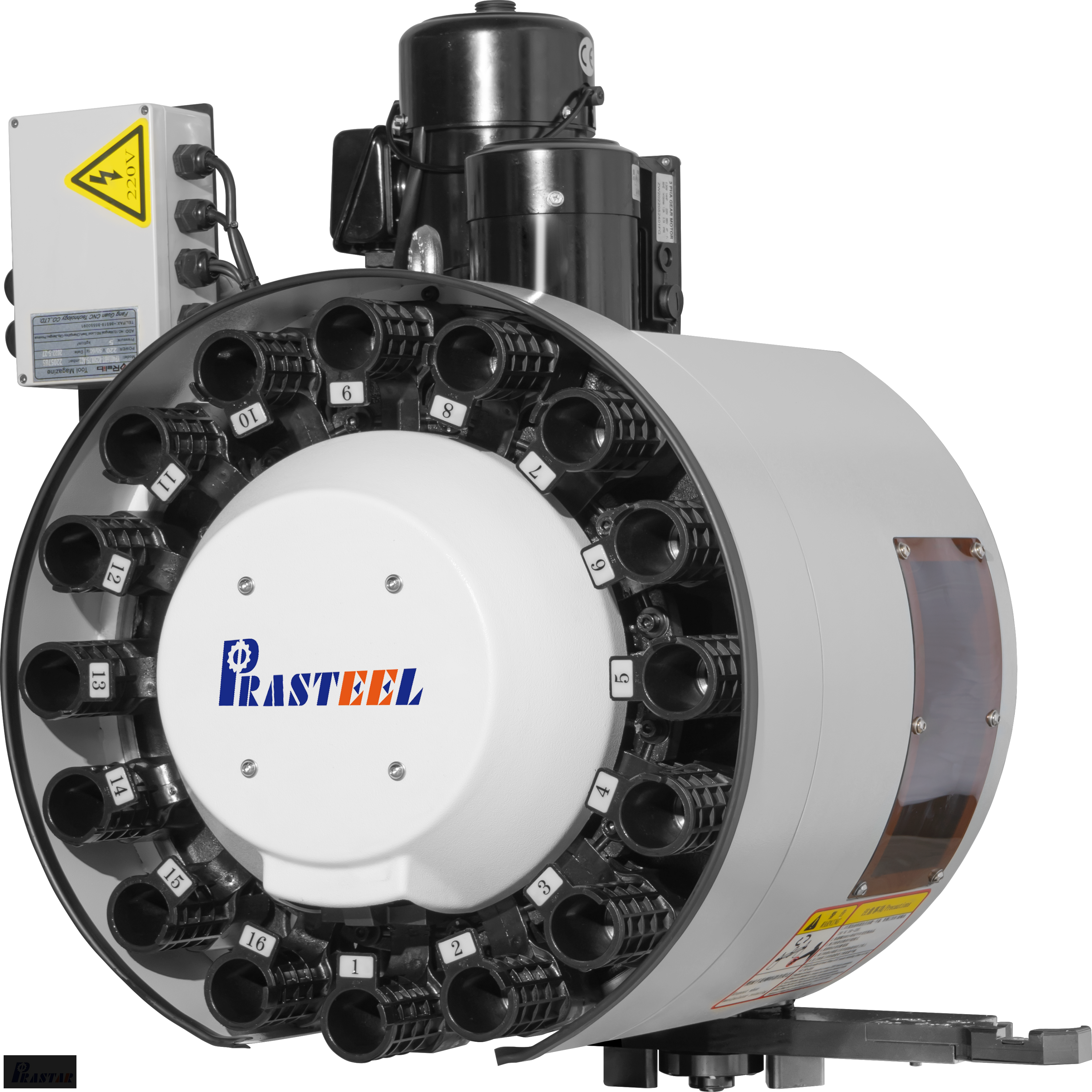

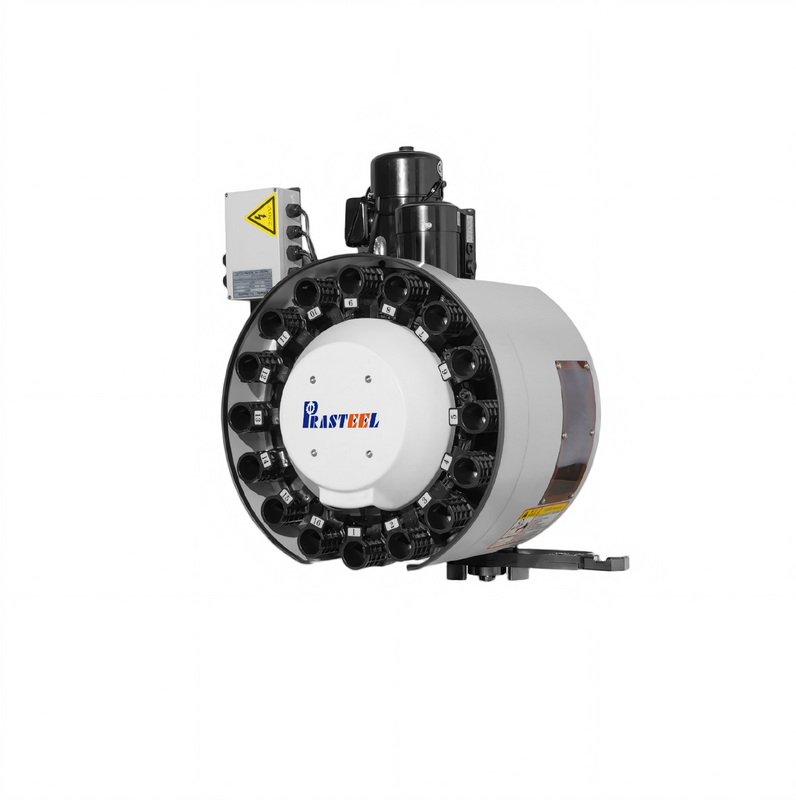

Vertical Disc Tool Magazine 16T

1. Double roller cam splitting mechanism, high splitting accuracy, low failure rate, simple structure, convenient maintenance and long service life.
2. All imported engineering plastic knife cover, light weight, high strength, not easy to damage.
3. Separate knife arm, high concentricity and low noise.
4 The whole series of electronic switches adopts imported originals, and the quality is guaranteed.
Availability:
Quantity:
  • 16T

  • Prasteel

Pocket  Spec                BT40/CAT40/DIN40/HSK63           BT50/CA50/DIN50/HSK100
Tool  Capacity                               16T                               16T
Pocket  Pitch(mm)                                80                               110

Max.Tool   Diameter

With  Adjacent  Pocket  Full/Empty(mm)

                            75/150                           110/200
Max.Tool  Weight(kg)                                 8                                15
Tool  Change  Time(sec/50hz)                             1.1-2.9                          2.91-8.28
Magazine  Speed(sec/tool)                               0.75                               0.75
Tool  Change  SelectionRoller  Gear  Cam
