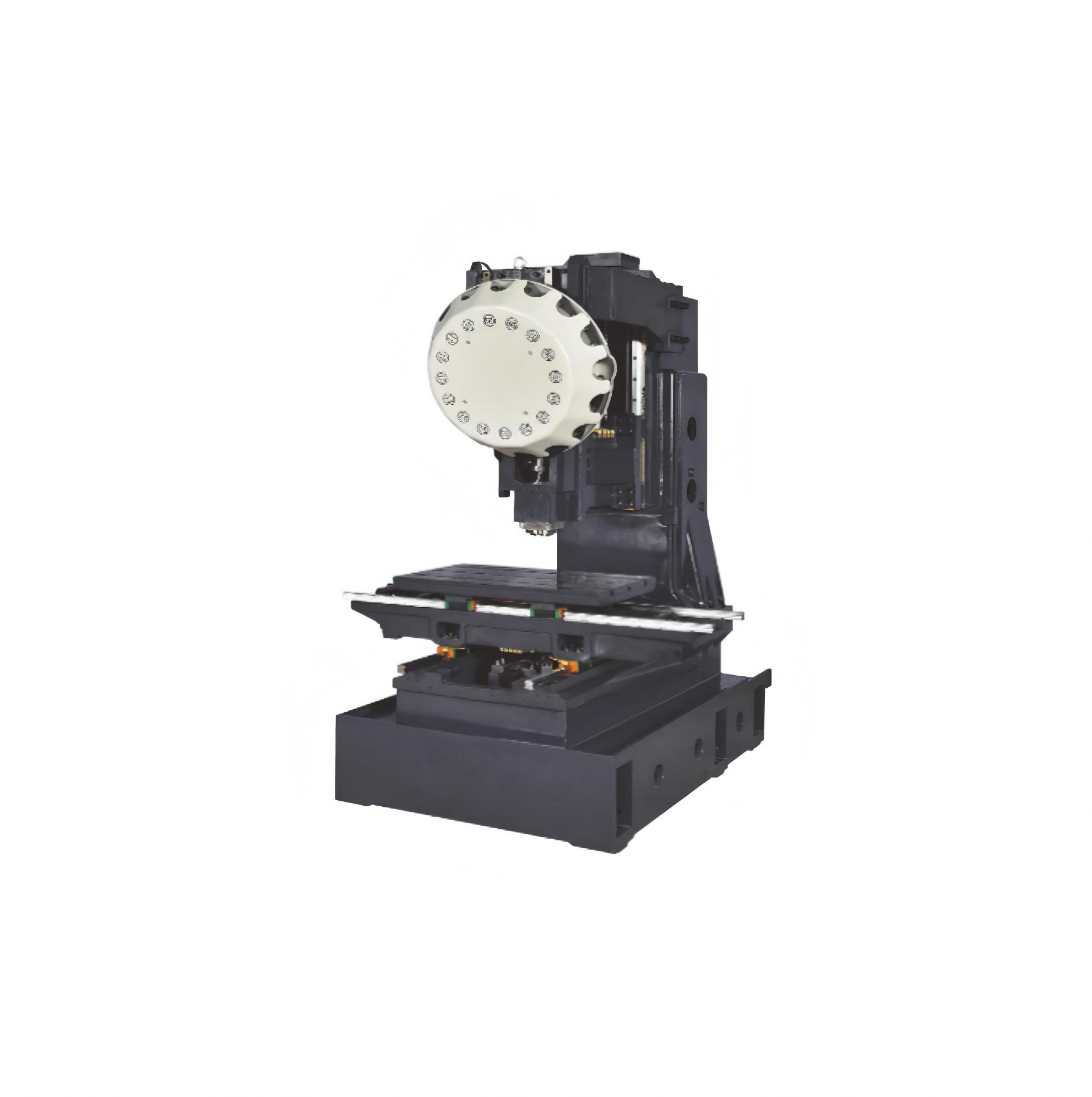

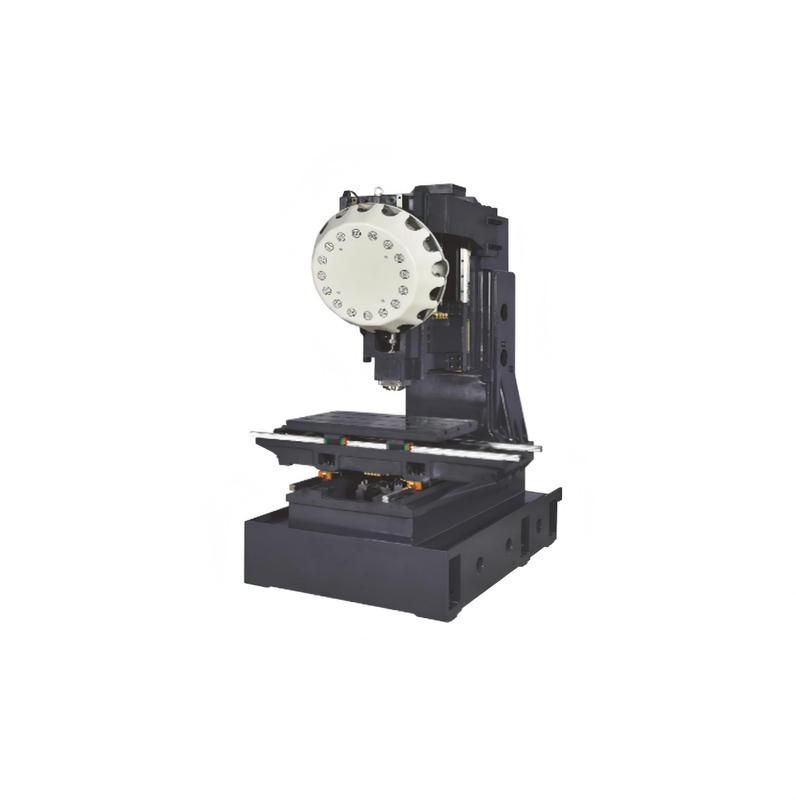

T6
Prasteel
| Item | Specification | Unit | T6Long nose | T6Short nose |
| Travel | Max. travel of X axis | mm | 600 | 600 |
| Max. travel of Y axis | mm | 400 | 400 | |
| Max. travel of Z axis | mm | 300 | 300 | |
Spindle | Spindle specification | / | BT30-Φ95Long nose | BT30-Φ100Short nose |
| Spindle speed | rpm | 15000 | 20000 | |
| Distance from spindle center to worktable | mm | 411 | 150-450 | |
| Distance from spindle nose to worktable center | mm | 150-450 | 411 | |
| Motor power | Spindle motor | kw | 5.5 | 5.5 |
| X/Y/Z axis motor | N.m | X-axis: 40 Y-axis: 40 (Holding brake) Z-axis: 40 | X/y-axis: 12 z-axis: 20 (Holding brake) | |
| Worktable | Worktable size | mm | 700×420 | 700×420 |
| Max. load of worktable | kg | 250 | 250 | |
| T-slots (Number - size × spacing) | mm | 3-14×125 | 3-14×125 | |
| Fast moving speed | X-axis fast moving speed | m/min | 48 | 48 |
| Y-axis fast moving speed | m/min | 48 | 48 | |
| Z-axis fast moving speed | m/min | 48 | 48 | |
| Cutting feed speed | mm/min | 1-12000 | 1-12000 | |
| X/Y/Z rail (ball/roller) | / | X/y/z-axis 30 linear rail 4 slides | X-axis 30 linear rail 4 slides Y-axis 30 linear rail 4 slides Z-axis 30 linear rail 4 slides | |
| X/Y/Z ball screw C3 level | / | X/y axis: Φ28×16 z axis: Φ28×16 | X/Y/Z axis: Φ28×16 z axis: Φ32×16 |
