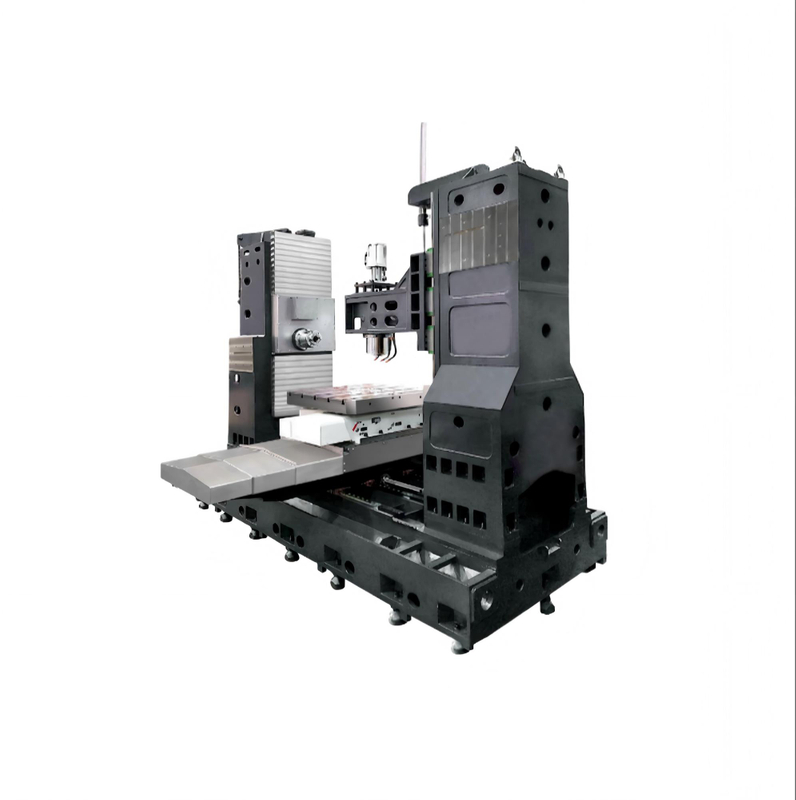

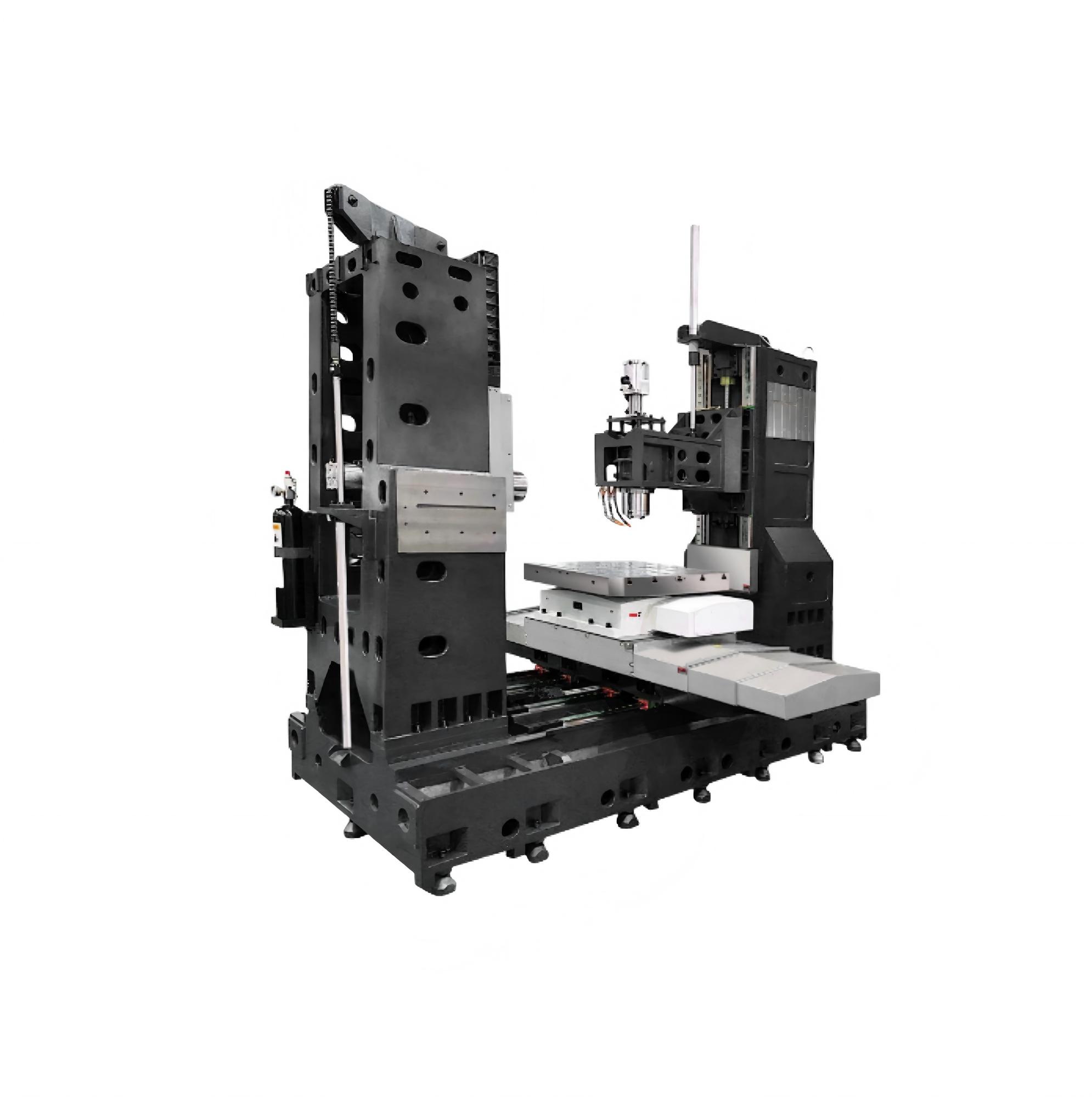

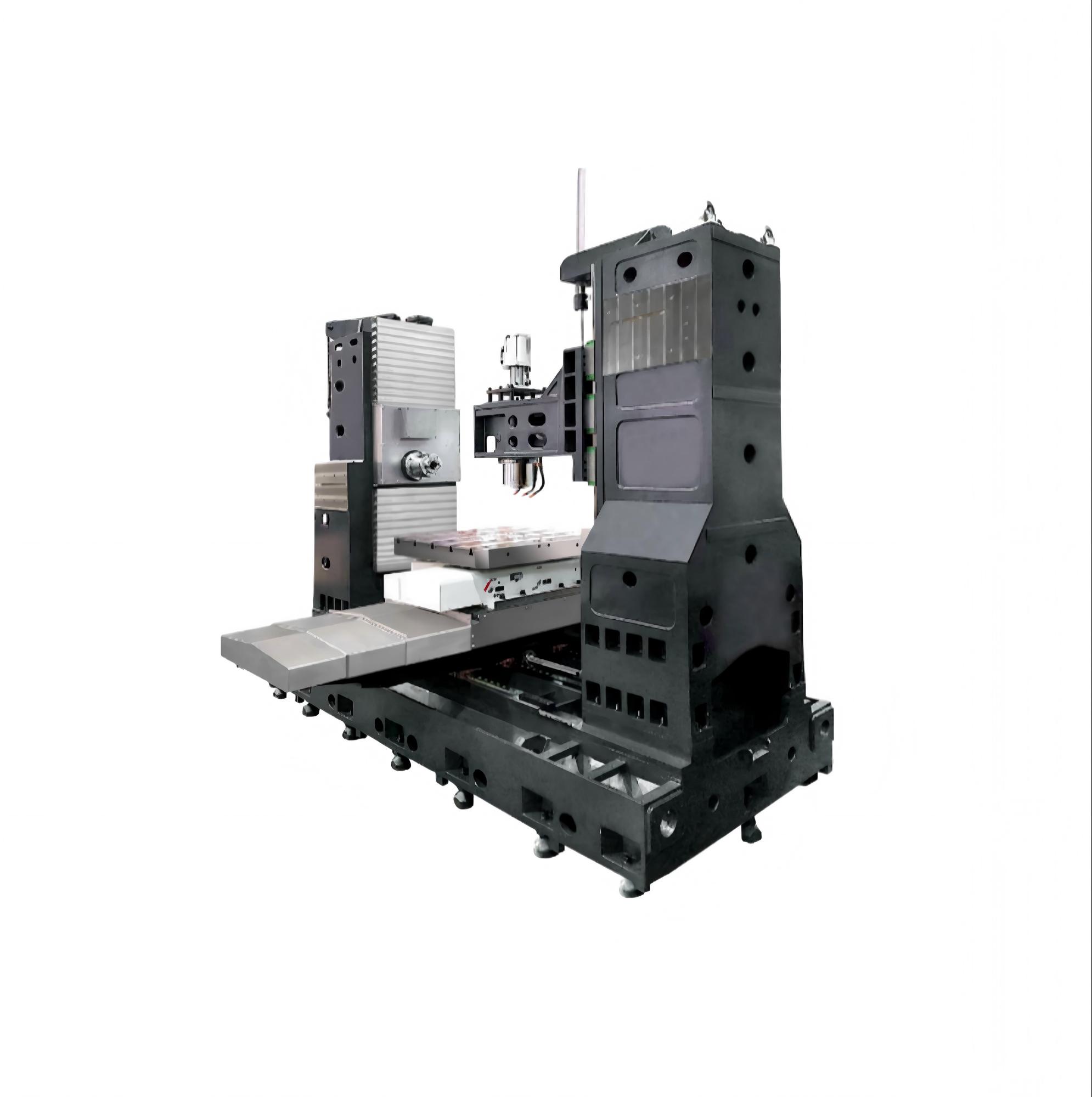

PL1210
Prasteel
| Item | Specification | Unit | PL1210 Vertical | PL 1210 Horizontal |
| Travel | Vertical and Horizontal X-axis travel (worktable left to right) | mm | 1200 | |
| Vertical Y-axis travel (vertical spindle center forward and backward) | mm | -280~ 720=1000 | ||
| Horizontal Y-axis travel (spindle head up and down) | -- | 1000 | ||
| Vertical Z-axis travel (spindle head up and down) | mm | 650 | -- | |
| Distance from vertical spindle nose to rotary table surface | / | 120~770 | -- | |
| Distance from horizontal spindle center to rotary table center | -- | 50~ 1050 | ||
| Distance from horizontal spindle nose to rotary table center | rpm | -- | 200~ 1200 | |
| Distance from vertical guide way to spindle center | mm | 870 | -- | |
| Distance from horizontal guide way to spindle nose | mm | -- | 370 | |
| Worktable | Rotary worktable size | 1000x1000/* | ||
| Rotation method | N.m | oil pressure | ||
| Indexing accuracy Maximum passing workpiece width Worktable load capacity | / | 15 | ||
| Spindle | Maximum spindle speed | mm | 8000 | |
| Spindle taper | kg | BT50-190 | ||
| Selected motor power | Recommended spindle motor | m/min | 70 | 70 |
| Recommended X/Y/Z-axis motors | Y-axis for vertical machining | 27 | 27 | |
| Y-axis for vertical machining | 27 | -- | ||
| Z-axis for vertical machining | 27 | -- | ||
| Y-axis for horizontal machining | -- | 36 | ||
| Z-axis for horizontal machining Automatic tool changer Tool holder type | -- | 36 | ||
| Automatic tool changer | Tool holder type | BT50 | ||
| Tool magazine capacity | 24 | |||
| Maximum tool diameter | Φ200 | |||
| Maximum tool length | 300 | |||
| Tool exchange method | robotic arm tool change | |||
| Guide way form | X-axis roller guide | 55 linear guide rails with 6 sliders | ||
| Y-axis roller guide | 4 sets of 45 linear guide rails with 8 sliders | |||
| Vertical /Z-axis roller guide | 55 linear guide rails with 6 sliders | |||
| Horizontal /Y-axis roller guide | 55 linear guide rails with 6 sliders | |||
| Ball screw | X/Y/Z ball screws | R50 x10 | ||
