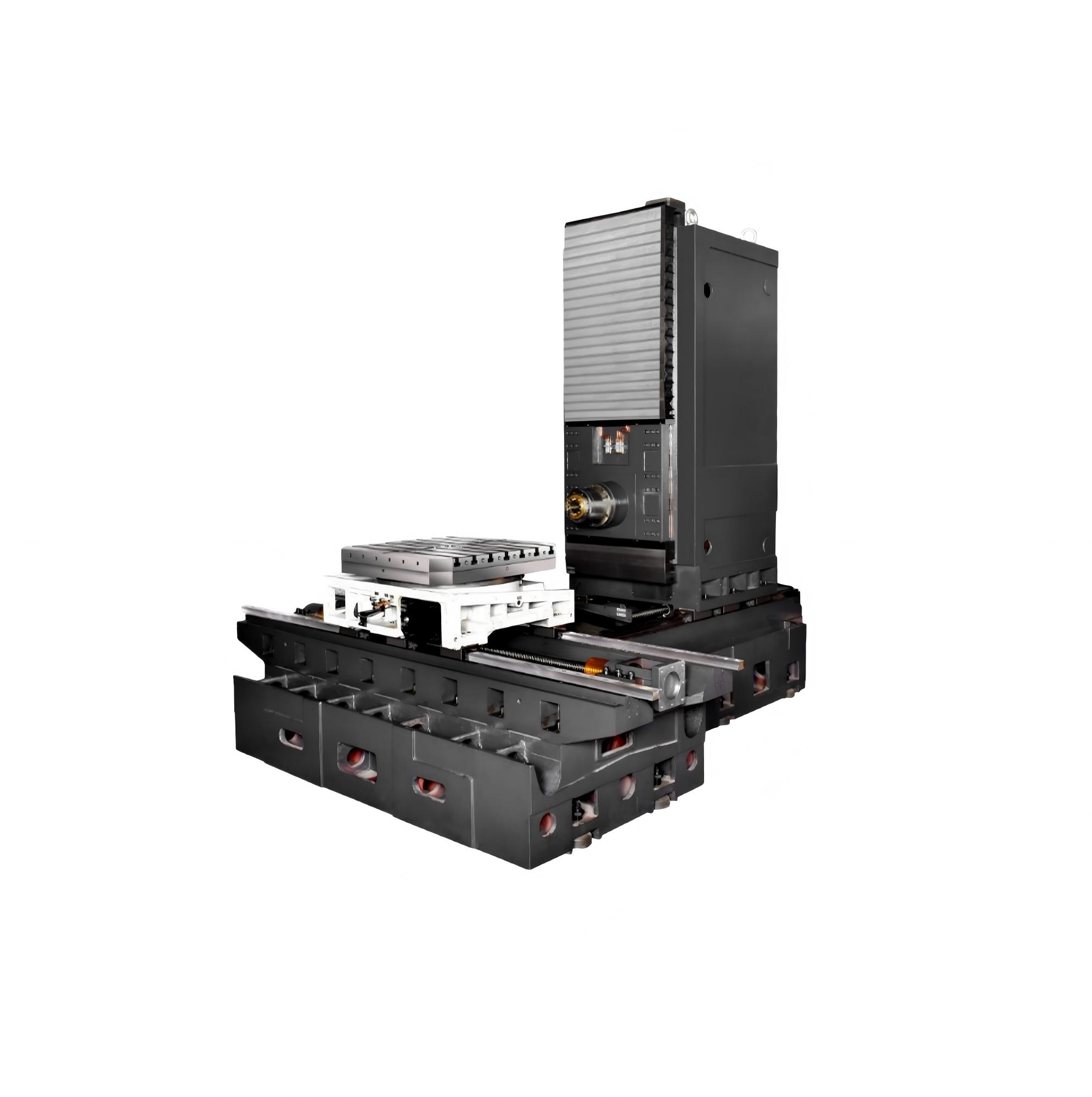

PL63GW
Prasteel
| Item | Specification | Unit | PL800W | PL1280WD | PL1380WD | PL1580WD |
| Travel | Max. travel of X axis | mm | 1700 | 1200 | 1300 | 1500 |
| Max. travel of Y axis | mm | 1000/1300 | 750/800 | 800 | 800/1000 | |
| Max. travel of Z axis | mm | 1000 | 800 | 800 | 800 | |
Spindle | Spindle specification | / | BT50-Φ190 | BT50-Φ155 | BT50-Φ150/Φ155/Φ190 | BT50-Φ190 |
| Spindle speed | rpm | 6000 | 6000/8000 | Φ150-8000/12000 Φ155-6000/8000 Φ190-6000 | 6000 | |
| Distance from spindle center to worktable | mm | 50-1050/90-1390 | 100-850/205-1005 | 205-1005 | 205-1005/ 405-1405 | |
| Distance from spindle nose to worktable center | mm | Φ190(Long nose): 210-1210 Φ190(Gear head): 300-1300 | 215-1015 | Φ150(Long nose): 250-1050 Φ155(Long nose): 215-1015 Φ190(Short nose): 245-1045 Φ190(Long nose): 175-975 | Φ190(Short nose): 245-1045 Φ190(Long nose): 175-975 | |
| Motor power | Spindle motor | kw | 18.5 | 15~18.5 | Φ150:11~15/ Φ155: 15~18.5 | 18.5 |
| X/Y/Z axis motor | N.m | X-axis: 30 Y-axis: 30 (Holding brake) Z-axis: 30 | X/Z-axis: 30 Y-axis: 30 (Holding brake) | X-axis: 30 Y-axis: 30 (Holding brake) Z-axis: 30 | ||
| X/Y/Z axis connection mode | / | - | - | - | - | |
| Worktable | Worktable size | mm | Rotary table: 800×800/1000×1000 | 1500×700 | 1500×700 | 1700×800 |
| Max. load of worktable | kg | 3000 | 1500 | 1500 | 1500 | |
| T-slots (Number - size × spacing) | mm | 7-22×100/9-22×100 | 5-18×145 | 5-18×145 | 5-22×145 | |
| Number of worktable/indexing unit | / | - | - | - | - | |
| Fast moving speed | X-axis fast moving speed | m/min | 16 | 20 | 20 | 20 |
| Y-axis fast moving speed | m/min | 16 | 20 | 20 | 20 | |
| Z-axis fast moving speed | m/min | 16 | 20 | 20 | 20 | |
| Cutting feed speed | mm/min | 1-8000 | 1-6000 | 1-6000 | 1-6000 | |
| X/Y/Z rail (ball/roller) | / | X-axis 45 linear rail 6 slides Y-axis 55 linear rail 6 slides Z-axis 55 linear rail 6 slides | X-axis 45 linear rail 6 slides Y-axis 45 linear rail 6 slides Z-axis 4 pcs 45 linear rail 8 slides | X-axis 45 linear rail 6 slides Y-axis 45 linear rail 6 slides Z-axis 4 pcs 45 linear rail 8 slides | X-axis 55 linear rail 6 slides Y-axis 45 linear rail 6 slides Z-axis 4 pcs 45 linear rail 8 slides | |
| X/Y/Z ball screw C3 level | / | X/Z axis: Φ55×12 Y axis: Φ50×10 | X/Y/Z axis: Φ40×10/*Φ190 spindle Y axis: Φ50×10 | X/Y axis: Φ40×10 Z axis: Φ50×10/*Φ190 spindle Y axis: Φ50×10 | Φ50×1 | |
