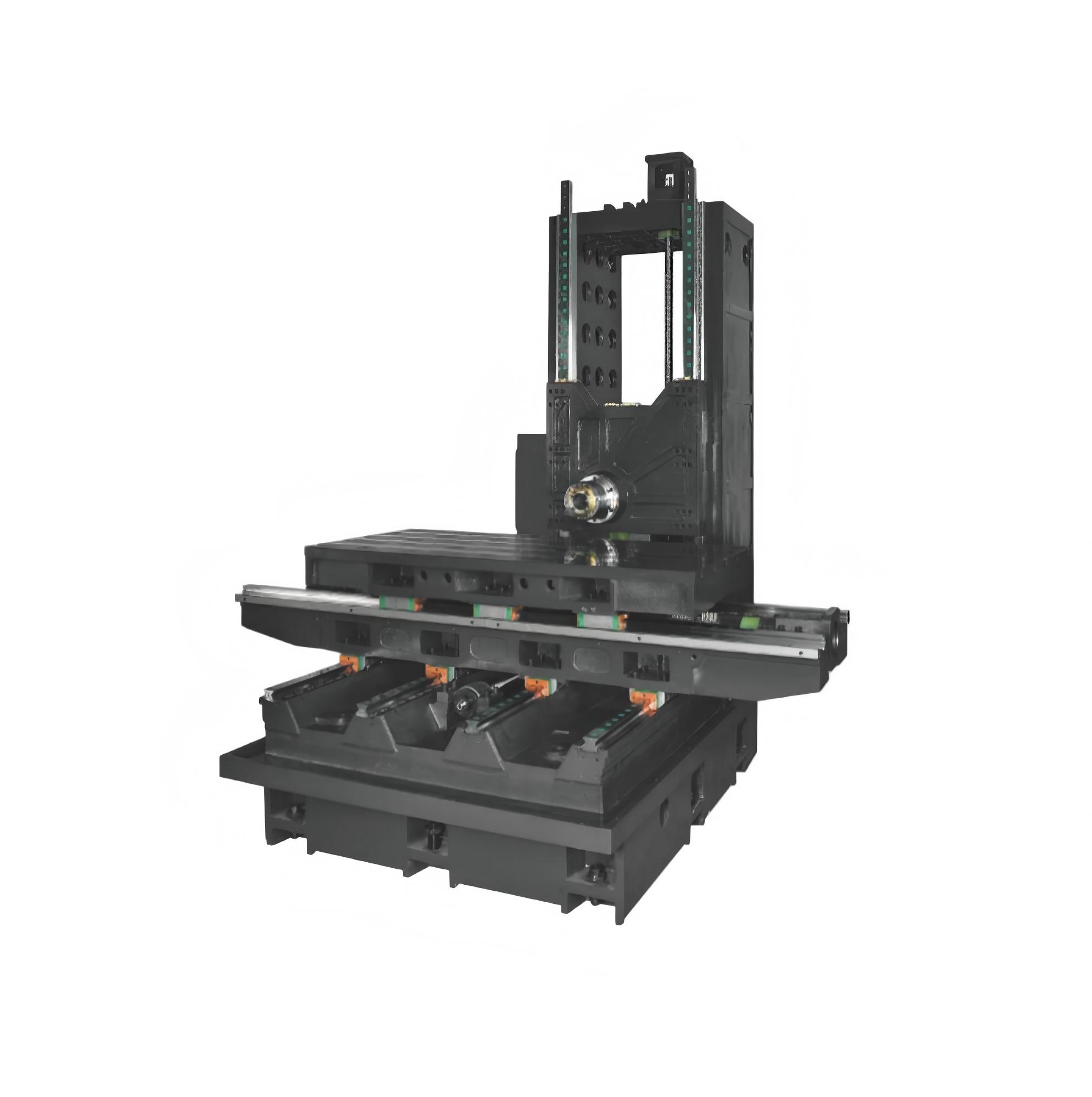

PL1370WD
Prasteel
X-Axis 45mm Linear Rails 6 Sliding Blocks
Y-Axis 45mm Linear Rails 6 Sliding BlocksX-Axis 45mm Linear Rails 6 Sliding Blocks
Y-Axis 45mm Linear Rails 6 Sliding Blocks
| Main Configuration | Unit | PL1370WD | |
| Three-axis travel | X-axis travel | mm | 1300 |
| Y-axis travel (Spindle moves up and down) | mm | 750 /* Increase the height of the column： 800 | |
| Z-axis travel | mm | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 /*Φ190-6000 | |
| Distance from spindle center to worktable | mm | 100-850 /* Increase the height of the column： 200-1000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 195-945 Φ155 Long nose : 155-905 Φ190 Long nose :120-870 Φ190 Short nose : 190-940 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15-18.5 /*Φ190：18.5 |
| Recommended X/Y/Z axis motors | N.m | X：20 Y：20 Z：20 | |
| Worktable | Worktable size | mm | 1500x700 |
| Maximum worktable load | kg | 1000 | |
| T-Slots (number - size x spacing) | 5-18x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | |
| Rapid traverse on Z-Axis | M/min | 20 | |
| Cutting feed rate | mm/min | 1-6000 | |
| X/Y/ axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 6 Sliding Blocks | ||
| Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | Z-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks | ||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | X\Y\Z：Φ40x10 /*Φ190 Spindle Y ：Φ50x10 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 5.5 | |
| Machine footprint (length x width x height) | mm | 3620x2600x3550 /*3620x2600x3700 | |
