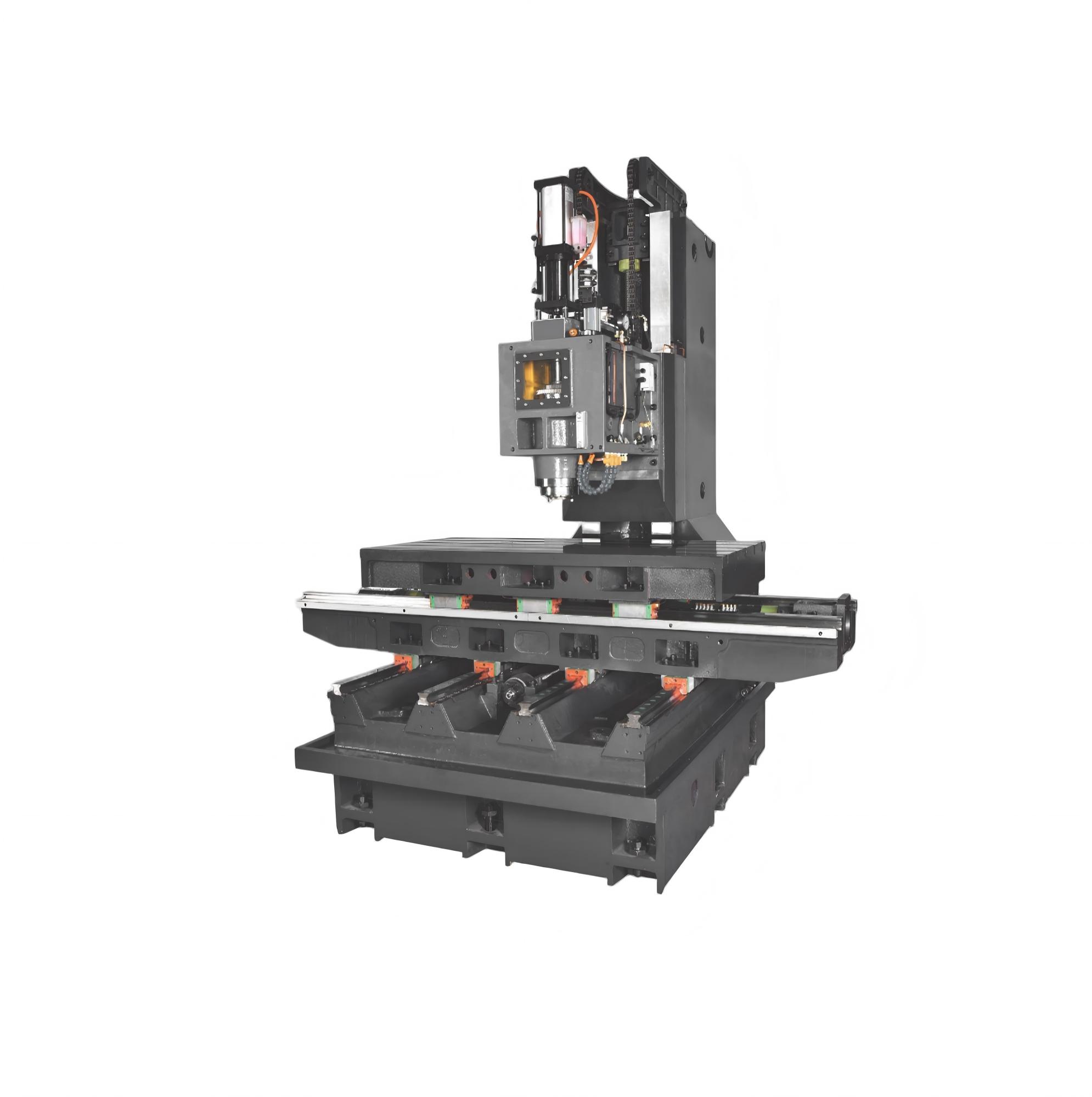

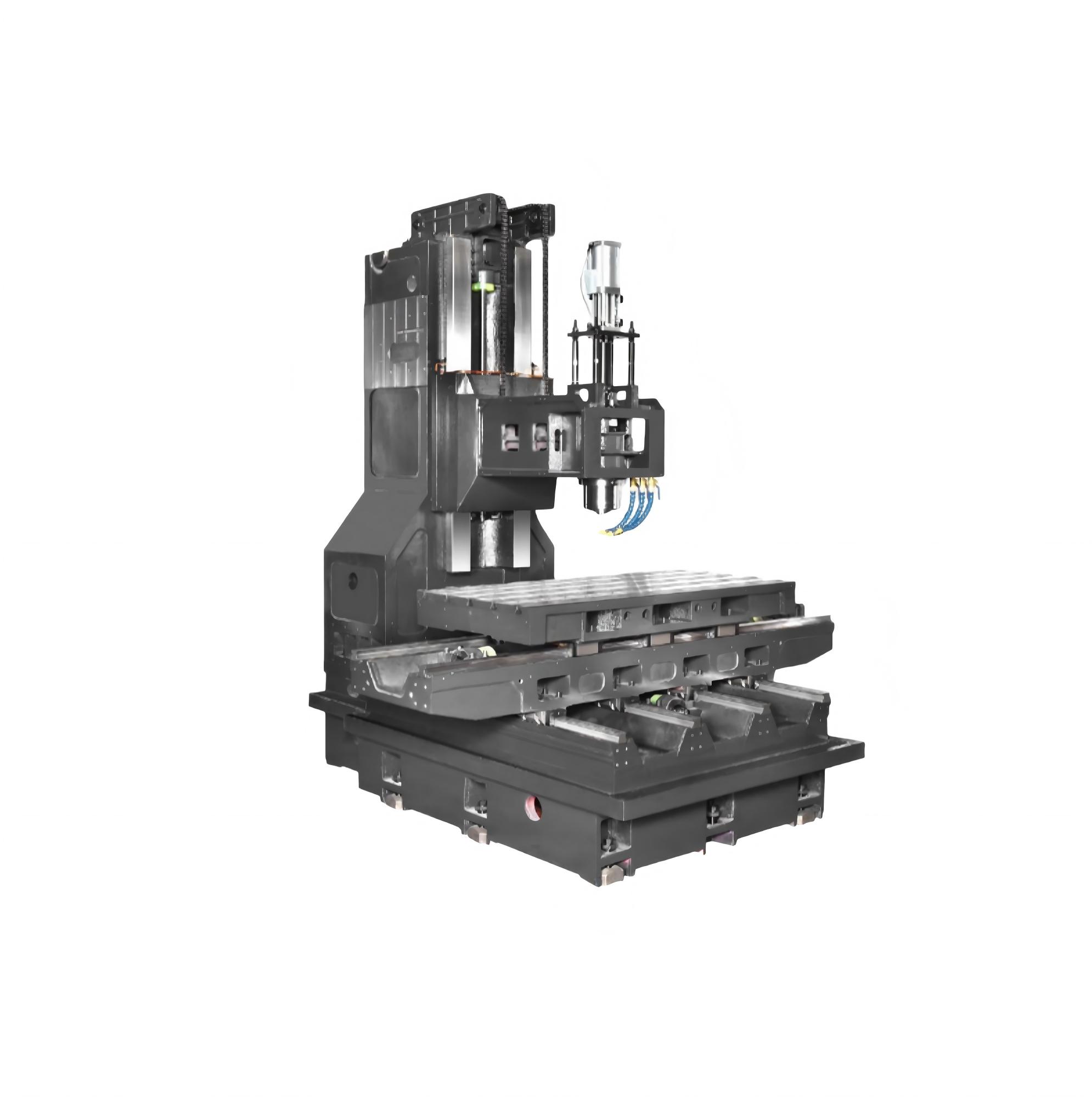

PL1270LD2/PL1370LD2
Prasteel
| Main Configuration | Unit | PL1270LD2 | PL1370LD2 | |
| Three-axis travel | X-axis travel | mm | 1200 | 1300 |
| Y-axis travel | mm | 700 | 700 | |
| Z-axis travel | mm | 700 | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | ||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000/8000/*Φ190-6000 | ||
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-820 Φ150 Short nose: 150-820 Φ155 Long nose : 150-850 Φ155 Short nose: 200-900 Φ190 Short nose: 150-850 Φ190 Long nose : 90-790 Φ160 Gear head : 190-890 | ||
| Distance from spindle center to column guide surface | mm | BT40：750 BT50：760 | BT40：750 BT50：760 | |
| Gear head | *BT50-160-3: Split type | |||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15-18.5 /*Φ190:18.5 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | ||
| Worktable | Worktable size | mm | 1500x700 | 1500x70 |
| Maximum worktable load | kg | 1000 | 1000 | |
| T-Slots (number - size x spacing) | 5 -18x145 | 5 -18x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30/*24/36 | 20/30/*24/36 |
| Rapid traverse on Y-Axis | M/mim | 20/30/*24/36 | 20/30/*24/36 | |
| Rapid traverse on Z-Axis | M/min | 18 | 18 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 8 Sliding Blocks | |||
| Z-Axis Hard box | ||||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×10/*Φ40×12 | Φ40×10/*Φ40×12 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 6.6 | 6.7 | |
| Machine footprint (length x width x height) | mm | 3520x2600x2665 | 3620x2600x2665 | |
