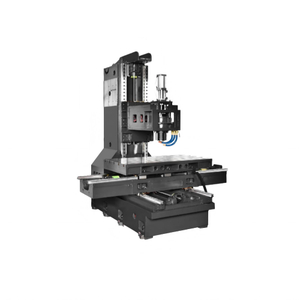

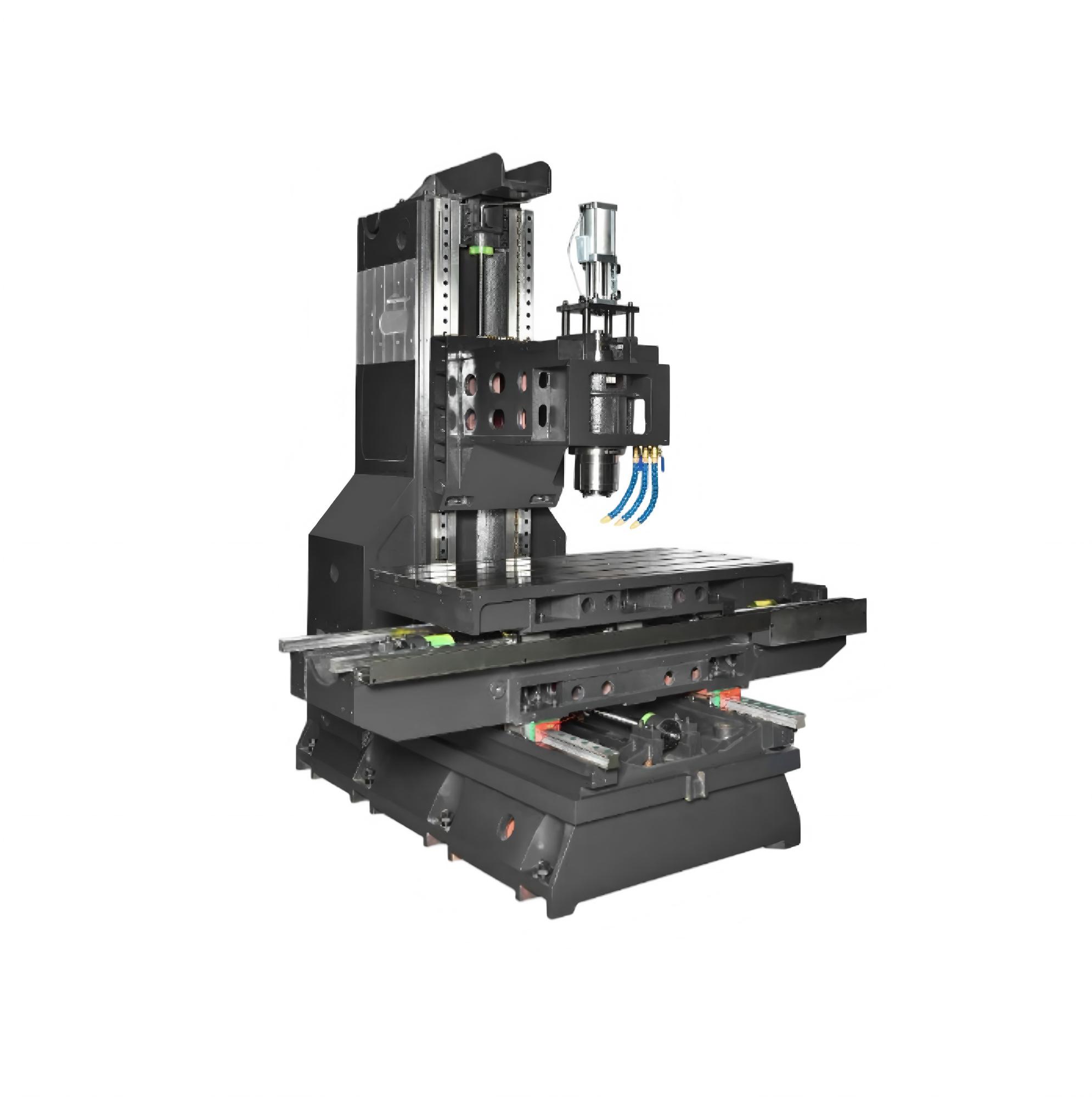

PL1270LC/PL1370LC
Prasteel
| Main Configuration | Unit | PL1270LC | PL1370LC | |
| Three-axis travel | X-axis travel | mm | 1200 | 1300 |
| Y-axis travel | mm | 700 | 700 | |
| Z-axis travel | mm | 700 | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50*Φ155 /*BT50-Φ190 | ||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000/8000/*Φ190-6000 | ||
| Distance from spindle nose to table surface | mm | Φ150Long nose : 140-840 Φ150Short nose: 140-840 Φ155Long nose : 100-800 Φ155Short nose: 150-850 Φ190Long nose: 70-770 | ||
| Distance from spindle center to column guide surface | mm | BT40：752 BT50：762 | BT40：752 BT50：762 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150：11-15/*Φ155：15-18.5/*Φ190：18.5 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | ||
| Worktable | Worktable size | mm | 1400x700 | 1500x70 |
| Maximum worktable load | kg | 1000 | 1000 | |
| T-Slots (number - size x spacing) | 5 -18x145 | 5 -18x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30/*24/36 | 20/30/*24/36 |
| Rapid traverse on Y-Axis | M/mim | 20/30/*24/36 | 20/30/*24/36 | |
| Rapid traverse on Z-Axis | M/min | 20/30/*24/36 | 20/30/*24/36 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | Z-Axis 45mm Linear Rails 6 Sliding Blocks | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×10/*Φ40×12 | Φ40×10/*Φ40×12 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 6.1 | 6.2 | |
| Machine footprint (length x width x height) | mm | 3280x2370x2625 | 3260x2370x2625 | |
| Main Configuration | Unit | PL1270LC | PL1370LC | |
| Three-axis travel | X-axis travel | mm | 1200 | 1300 |
| Y-axis travel | mm | 700 | 700 | |
| Z-axis travel | mm | 700 | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50*Φ155 /*BT50-Φ190 | ||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000/8000/*Φ190-6000 | ||
| Distance from spindle nose to table surface | mm | Φ150Long nose : 140-840 Φ150Short nose: 140-840 Φ155Long nose : 100-800 Φ155Short nose: 150-850 Φ190Long nose: 70-770 | ||
| Distance from spindle center to column guide surface | mm | BT40：752 BT50：762 | BT40：752 BT50：762 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150：11-15/*Φ155：15-18.5/*Φ190：18.5 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | ||
| Worktable | Worktable size | mm | 1400x700 | 1500x70 |
| Maximum worktable load | kg | 1000 | 1000 | |
| T-Slots (number - size x spacing) | 5 -18x145 | 5 -18x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30/*24/36 | 20/30/*24/36 |
| Rapid traverse on Y-Axis | M/mim | 20/30/*24/36 | 20/30/*24/36 | |
| Rapid traverse on Z-Axis | M/min | 20/30/*24/36 | 20/30/*24/36 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | Z-Axis 45mm Linear Rails 6 Sliding Blocks | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×10/*Φ40×12 | Φ40×10/*Φ40×12 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 6.1 | 6.2 | |
| Machine footprint (length x width x height) | mm | 3280x2370x2625 | 3260x2370x2625 | |
