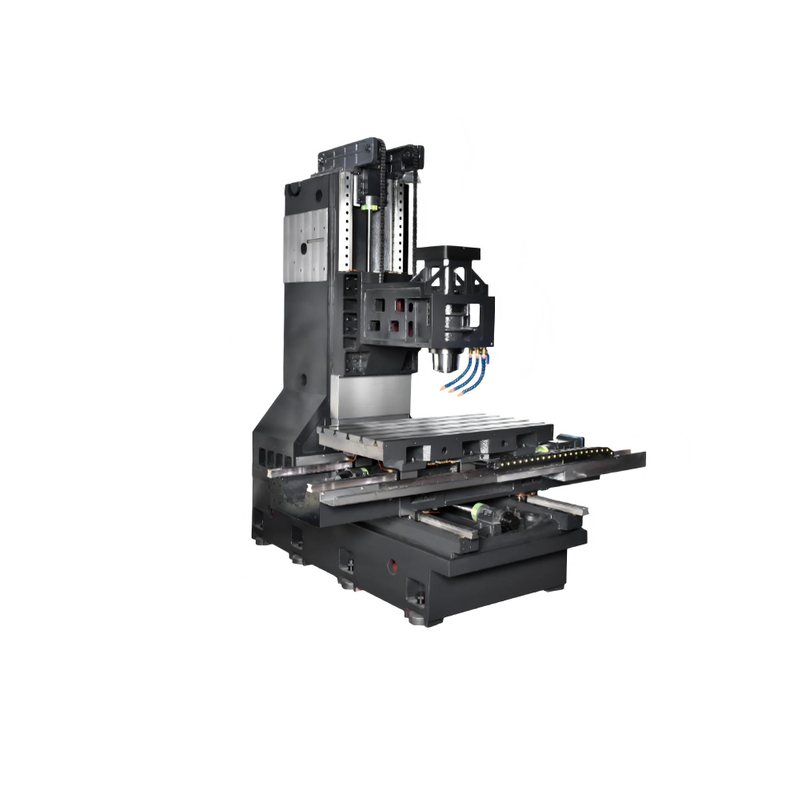

PL1167L/PL1167L2
Prasteel
| Main Configuration | Unit | PL1167L | PL1167L2 | |
| Three-axis travel | X-axis travel | mm | 1100 | 1100 |
| Y-axis travel | mm | 600 | 600 | |
| Z-axis travel | mm | 700 | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 | BT40-Φ150 | |
| Spindle speed | rmp | 8000/*12000 | ||
| Distance from spindle nose to table surface | mm | Φ150Long nose : 95-795 | ||
| Distance from spindle center to column guide surface | mm | 686 | 654 | |
| Selected Motor Power | Recommended spindle motor | Kw | 7.5-11 | 7.5-11 |
| Recommended X/Y/Z axis motors | N.m | X/Y:16 Z:20 | X/Y:16 Z:20 | |
| Worktable | Worktable size | mm | 1200x1600 | 1200x1600 |
| Maximum worktable load | kg | 800 | 800 | |
| T-Slots (number - size x spacing) | 5 -18x120 | 5 -18x120 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 24 | 24 |
| Rapid traverse on Y-Axis | M/mim | 24 | 24 | |
| Rapid traverse on Z-Axis | M/min | 24 | 24 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | |||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | Z-Axis Hardened ways | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×12 | X/Y :Φ40×12 Z :Φ40x10 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 3.9 | 4.5 | |
| Machine footprint (length x width x height) | mm | 2900x2060x2300 | ||
