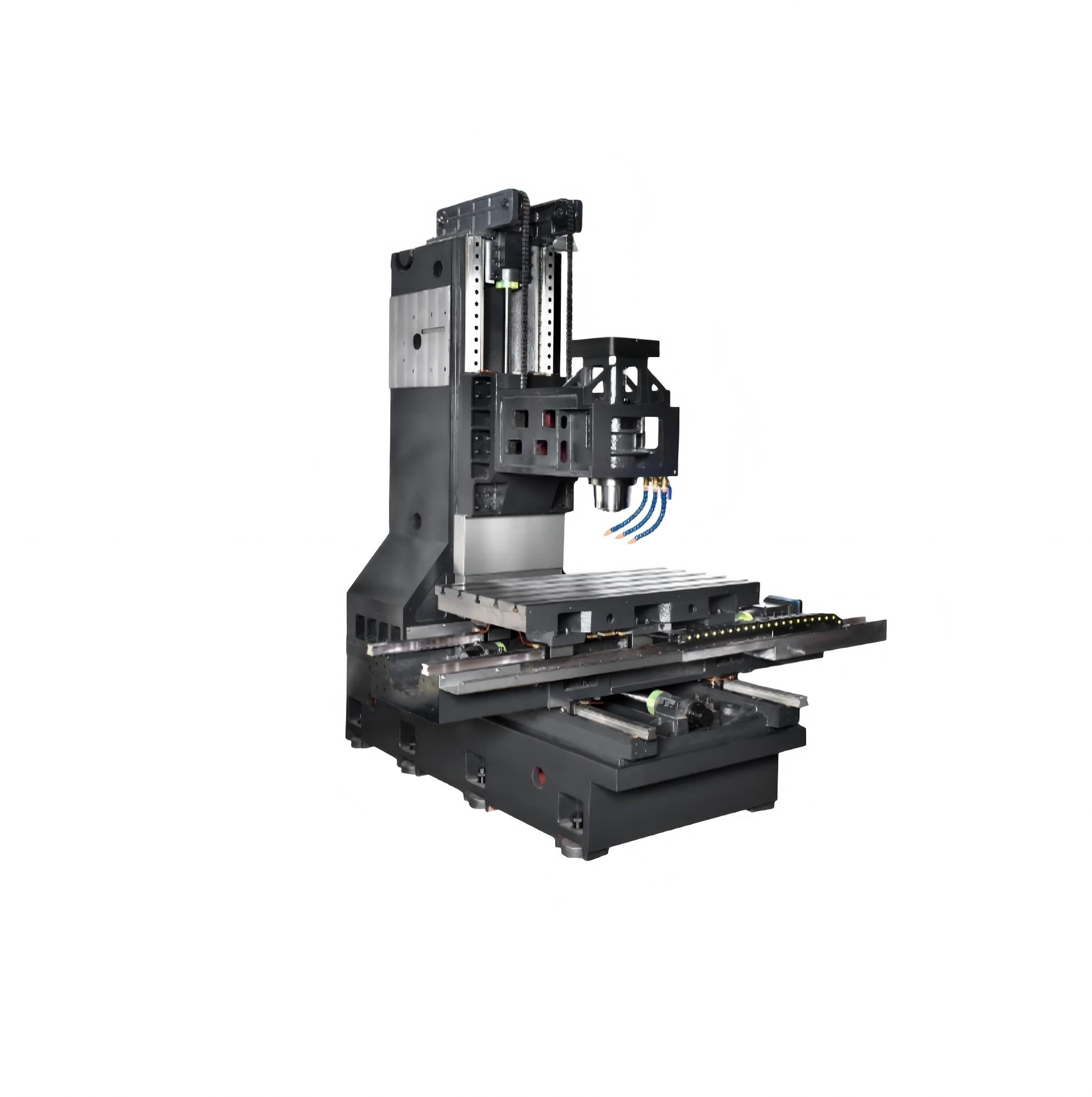

PL1165L
Prasteel
| Main Configuration | Unit | PL1165L | |
| Three-axis travel | X-axis travel | mm | 1100 |
| Y-axis travel | mm | 650 | |
| Z-axis travel | mm | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 / BT50-155 | |
| Spindle speed | rmp | Φ150-8000/12000 Φ155-6000/8000 | |
| Distance from spindle nose to table surface | mm | Φ150Long nose : 140-840 Φ155Long nose : 120-820 | |
| Distance from spindle center to column guide surface | mm | 702 | |
| Selected Motor Power | Recommended spindle motor | Kw | 11-15 |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | |
| Worktable | Worktable size | mm | 1380x600 |
| Maximum worktable load | kg | 900 | |
| T-Slots (number - size x spacing) | 5 -18x110 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30 /*24/36 |
| Rapid traverse on Y-Axis | M/mim | 20/30 /*24/36 | |
| Rapid traverse on Z-Axis | M/min | 20/30 /*24/30 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×10 / *Φ40x12 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 5.2 | |
| Machine footprint (length x width x height) | mm | 3230x2330x2560 | |
| Main Configuration | Unit | PL1165L | |
| Three-axis travel | X-axis travel | mm | 1100 |
| Y-axis travel | mm | 650 | |
| Z-axis travel | mm | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 / BT50-155 | |
| Spindle speed | rmp | Φ150-8000/12000 Φ155-6000/8000 | |
| Distance from spindle nose to table surface | mm | Φ150Long nose : 140-840 Φ155Long nose : 120-820 | |
| Distance from spindle center to column guide surface | mm | 702 | |
| Selected Motor Power | Recommended spindle motor | Kw | 11-15 |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | |
| Worktable | Worktable size | mm | 1380x600 |
| Maximum worktable load | kg | 900 | |
| T-Slots (number - size x spacing) | 5 -18x110 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30 /*24/36 |
| Rapid traverse on Y-Axis | M/mim | 20/30 /*24/36 | |
| Rapid traverse on Z-Axis | M/min | 20/30 /*24/30 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×10 / *Φ40x12 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 5.2 | |
| Machine footprint (length x width x height) | mm | 3230x2330x2560 | |
