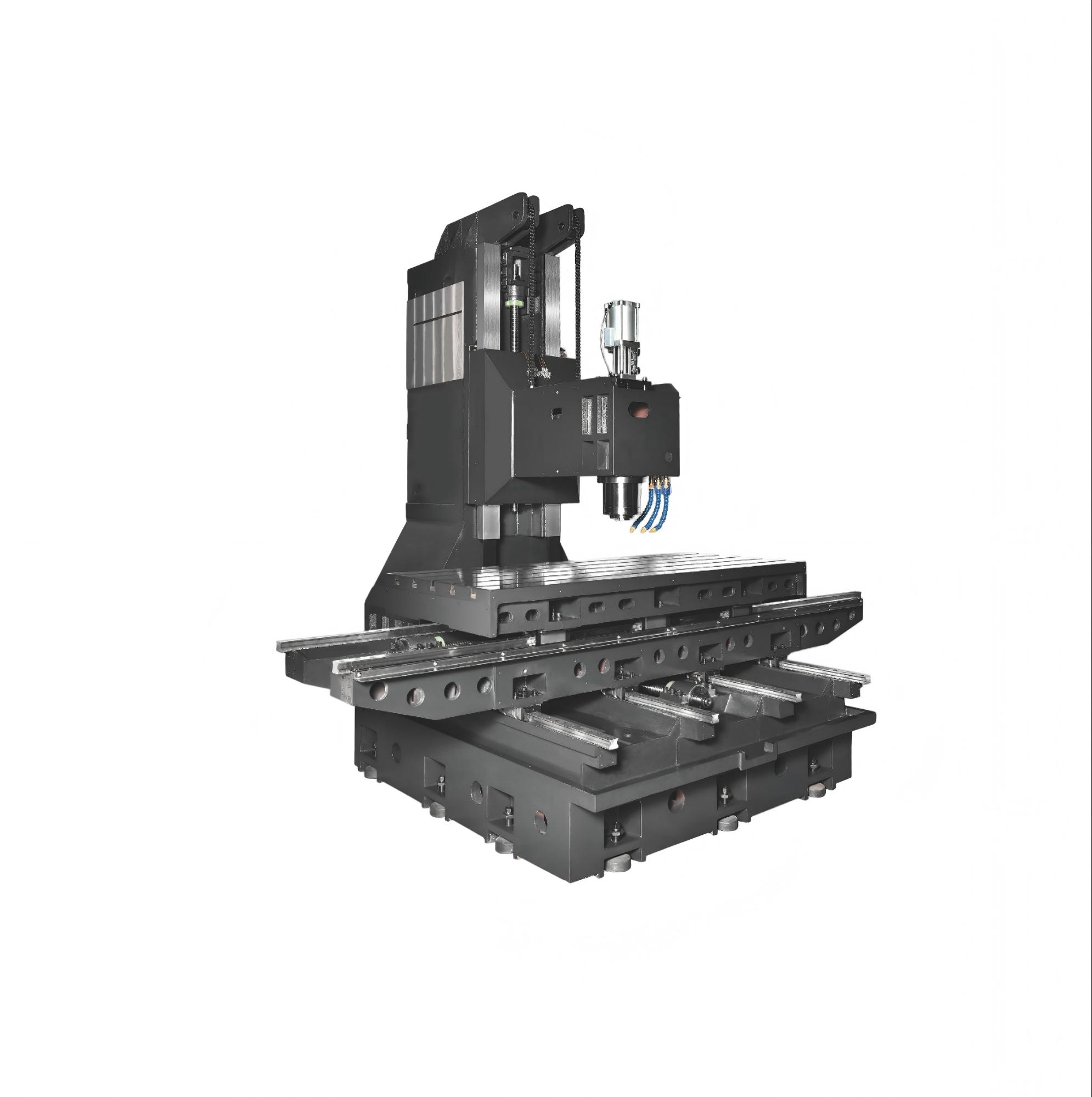

PL1890L2
Prasteel
| Main Configuration | Unit | PL1890L2 | PL1890L2 Gear head | |
| Three-axis travel | X-axis travel | mm | 1800 | 1800 |
| Y-axis travel | mm | 900 | 900 | |
| Z-axis travel | mm | 750 | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 /*Φ190-6000 | 6000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 160-900 Φ155 Long nose : 130-880 Φ190 Long nose : 100-850 Φ190 Long nose : 150-900 | 150-880 | |
| Distance from spindle center to column guide surface | mm | 950 | 950 | |
| Gear head | / | BT50-190 | ||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15-18.5 /*Φ190:18.5-22 | 18.5-22 |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 /*36 | ||
| Worktable | Worktable size | mm | 2000x900 | 2000x900 |
| Maximum worktable load | kg | 1800 | 1800 | |
| T-Slots (number - size x spacing) | 5 -22x164 | 5-22x164 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 16 | 16 |
| Rapid traverse on Y-Axis | M/mim | 16 | 16 | |
| Rapid traverse on Z-Axis | M/min | 16/*12 | 12 | |
| Cutting feed rate | mm/min | 1-5000 | 1-5000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 55mm Linear Rails 6 Sliding Blocks Y-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks Z-Axis hard rail | X-Axis 55mm Linear Rails 6 Sliding Blocks Y-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks Z-Axis hard rail | ||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ55x12 | Φ55x12 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 11.5 | 12.5 | |
| Machine footprint (length x width x height) | mm | 4800x3200x3135 | 4800x3200x3135 | |
