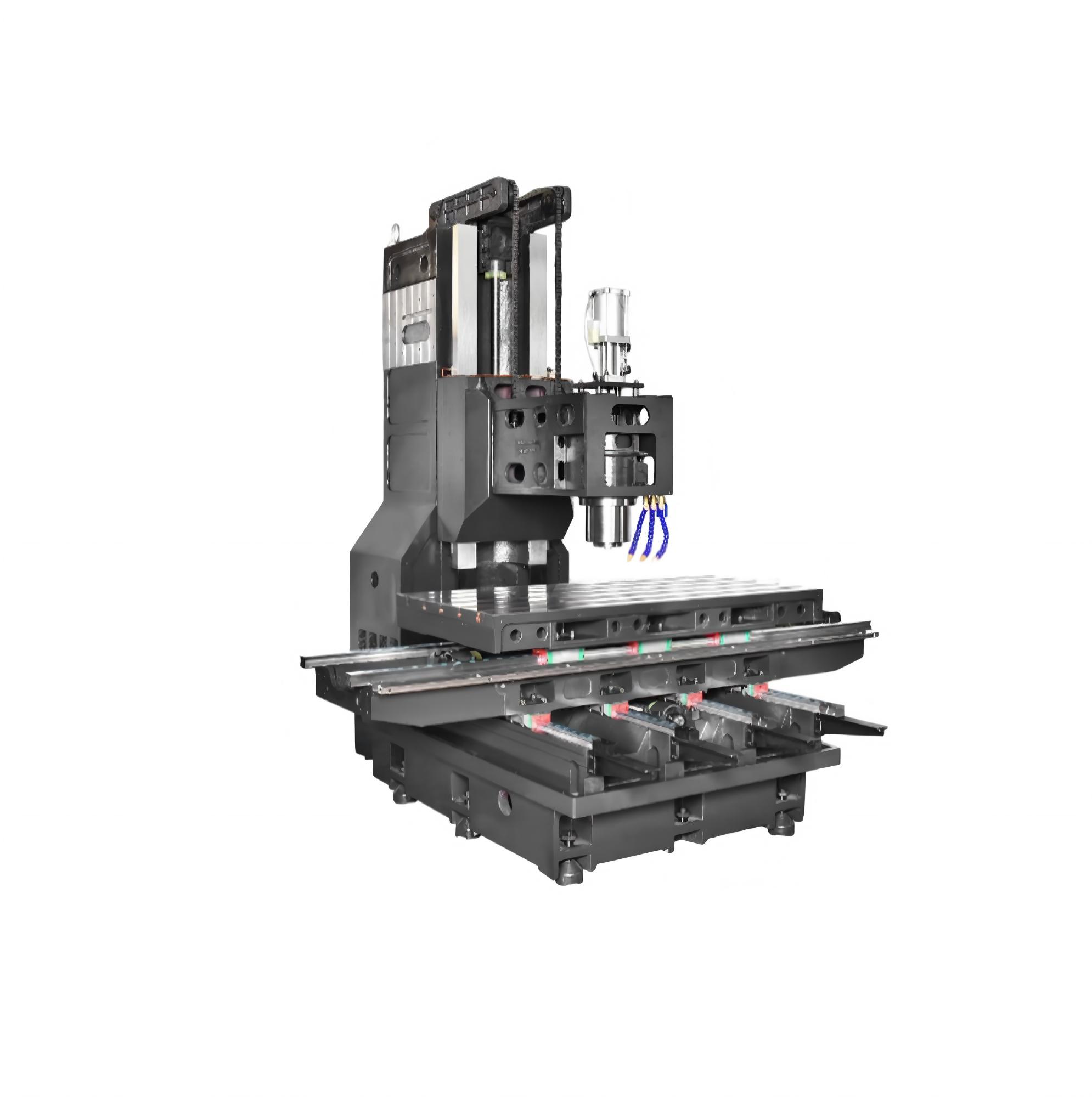

PL1580LD2
Prasteel
| Main Configuration | Unit | PL1580LD2 | |
| Three-axis travel | X-axis travel | mm | 1500 |
| Y-axis travel | mm | 800 | |
| Z-axis travel | mm | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 /*Φ190-6000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-900 Φ155 Long nose : 130-880 Short nose : 160-910 Φ190 Long nose : 150-900 Short nose : 200-950 Φ160 Gear head : 150-900 Φ190 Gear head : 150-900 | |
| Distance from spindle center to column guide surface | mm | 870 | |
| *Gear head | *BT50-160 *BT50-190 | ||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15/*Φ155:15-18.5/*Φ190:18.5 |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | |
| Worktable | Worktable size | mm | 1700x800 |
| Maximum worktable load | kg | 1500 | |
| T-Slots (number - size x spacing) | 5 -22x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | |
| Rapid traverse on Z-Axis | M/min | 12 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 55mm Linear Rails 6 Sliding Blocks Y-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks | ||
| Z-Axis hard rail | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ50x10 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 7.5 *Gead head : 8.3 | |
| Machine footprint (length x width x height) | mm | 4110x2920x2900 | |
| Main Configuration | Unit | PL1580LD2 | |
| Three-axis travel | X-axis travel | mm | 1500 |
| Y-axis travel | mm | 800 | |
| Z-axis travel | mm | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 /*Φ190-6000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-900 Φ155 Long nose : 130-880 Short nose : 160-910 Φ190 Long nose : 150-900 Short nose : 200-950 Φ160 Gear head : 150-900 Φ190 Gear head : 150-900 | |
| Distance from spindle center to column guide surface | mm | 870 | |
| *Gear head | *BT50-160 *BT50-190 | ||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15/*Φ155:15-18.5/*Φ190:18.5 |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | |
| Worktable | Worktable size | mm | 1700x800 |
| Maximum worktable load | kg | 1500 | |
| T-Slots (number - size x spacing) | 5 -22x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | |
| Rapid traverse on Z-Axis | M/min | 12 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 55mm Linear Rails 6 Sliding Blocks Y-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks | ||
| Z-Axis hard rail | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ50x10 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 7.5 *Gead head : 8.3 | |
| Machine footprint (length x width x height) | mm | 4110x2920x2900 | |
