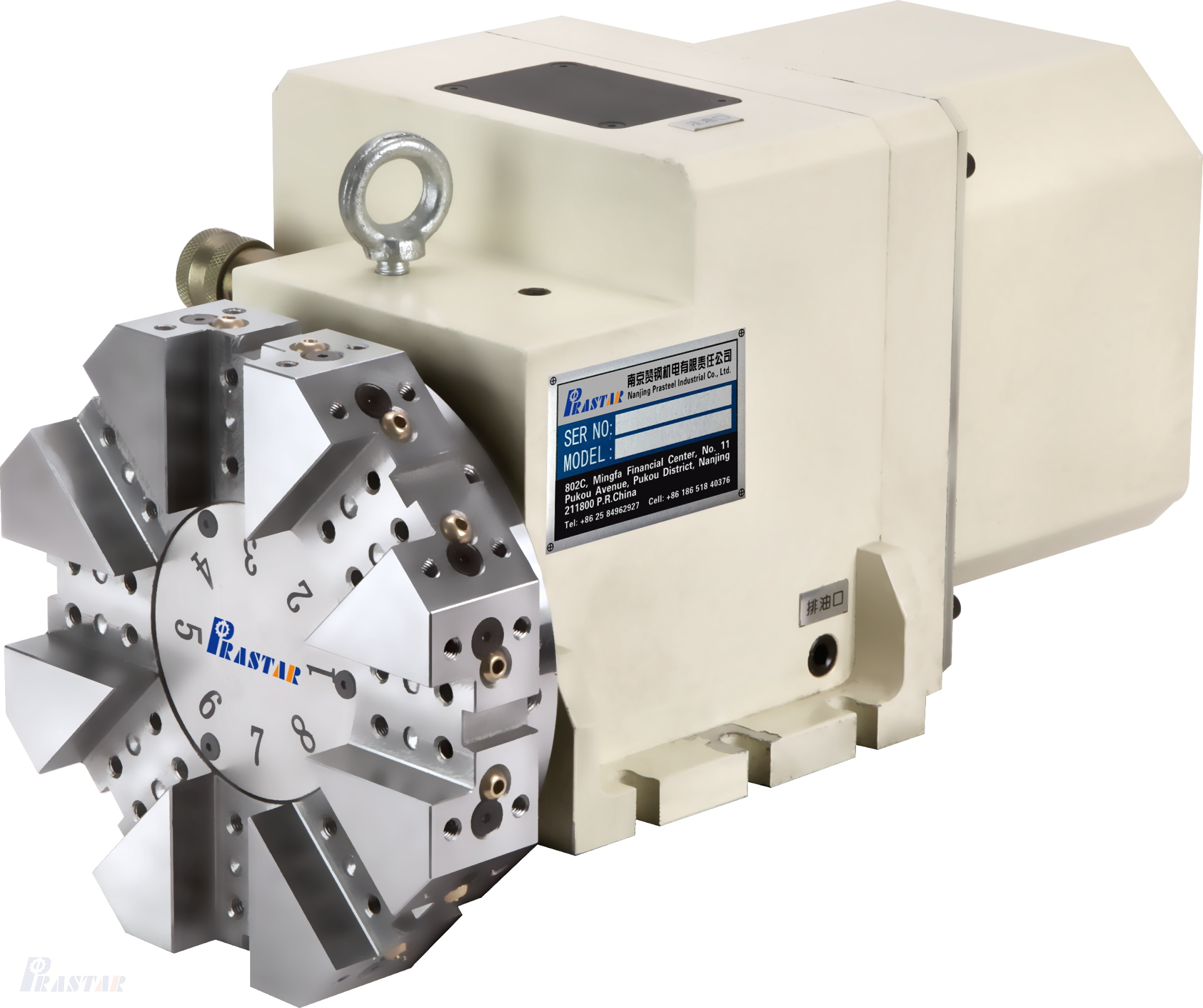

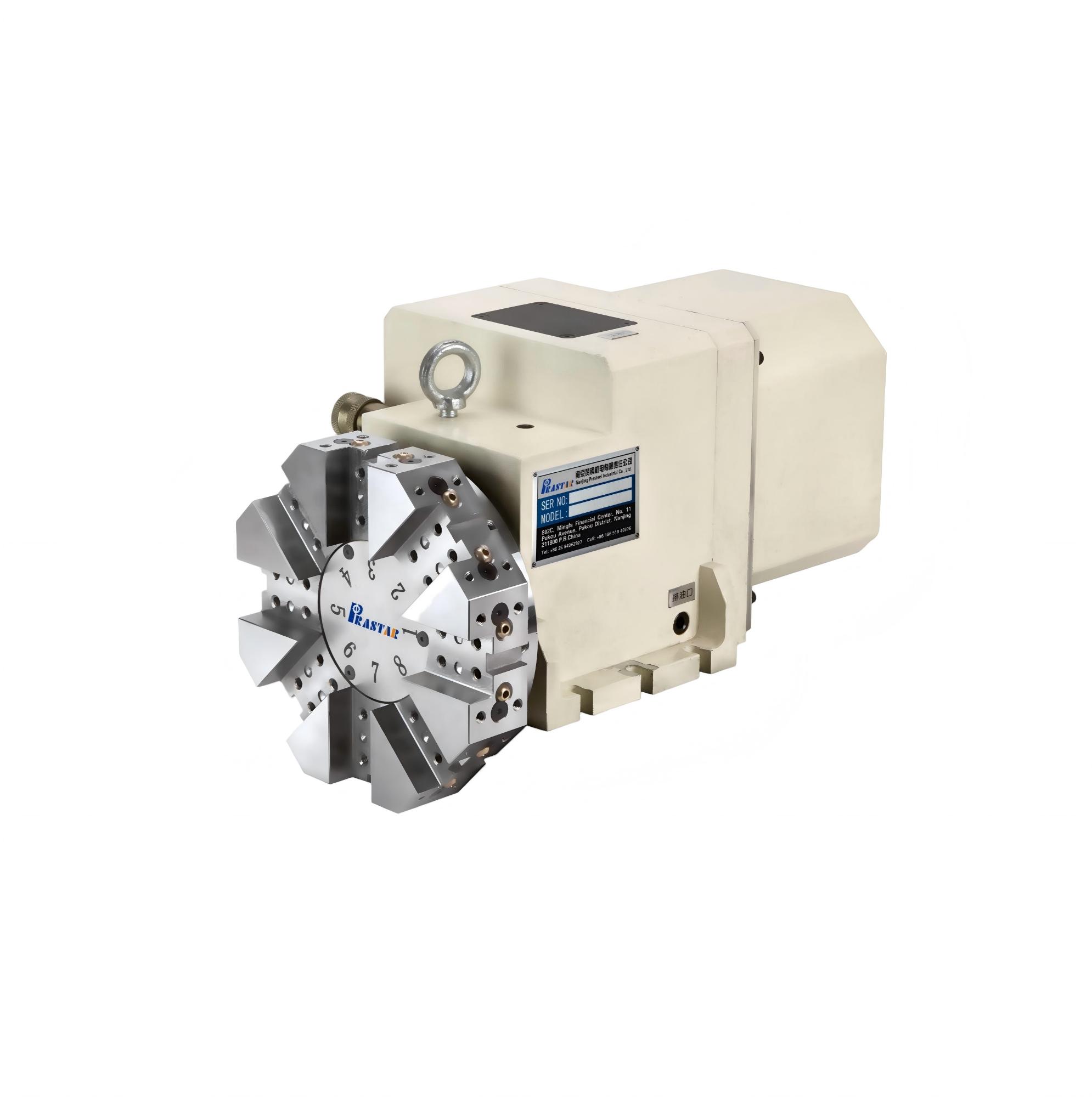

Hydraulic Servo Turret TCS-50

1.Very high rotate speed with min. indexing time
2.High rigidity, durability and low noise
3.Bi-direction rotate, double sensor for locking and unlocking status
4.Tool disc of 6T, 8T, 10T, 12T is optional
Accept OEM/ODM order
Availability:
Quantity:
  • TCS-50

Technical Parameter

MODEL

TCS-50

Center height

mm

50

Number of tools

N

8T

Gear speed ratio


36:1

Servo motor speed

rpm

3000

Servo motor power

Kw

0.4

Rotating time(tool to tool)

s

0.4

Rotating time (including locking)

s

0.5

Total indexing time for 180°

s

0.6

Total indexing time for 180°

(including locking)

s

0.7

Curvic coupings type


2piece

Hydraulic working pressure

kgf/cm²

25-30

Flow rate

L/min

20

Thrusting force of hyd.cyl.

kgf

560

Accuracy of repeatability

mm

0.003

N.W.(Without tool disc)

Kg

30

Turret Disc Size And Accessories

8T/Disc size SW

mm

178

12T/Disc size SW

mm


O.D.Tool

mm

16

Facing Tool

mm

16

Boring Tool

mm

Φ20


Previous:
Next:

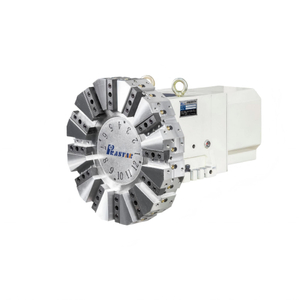

Related Products
