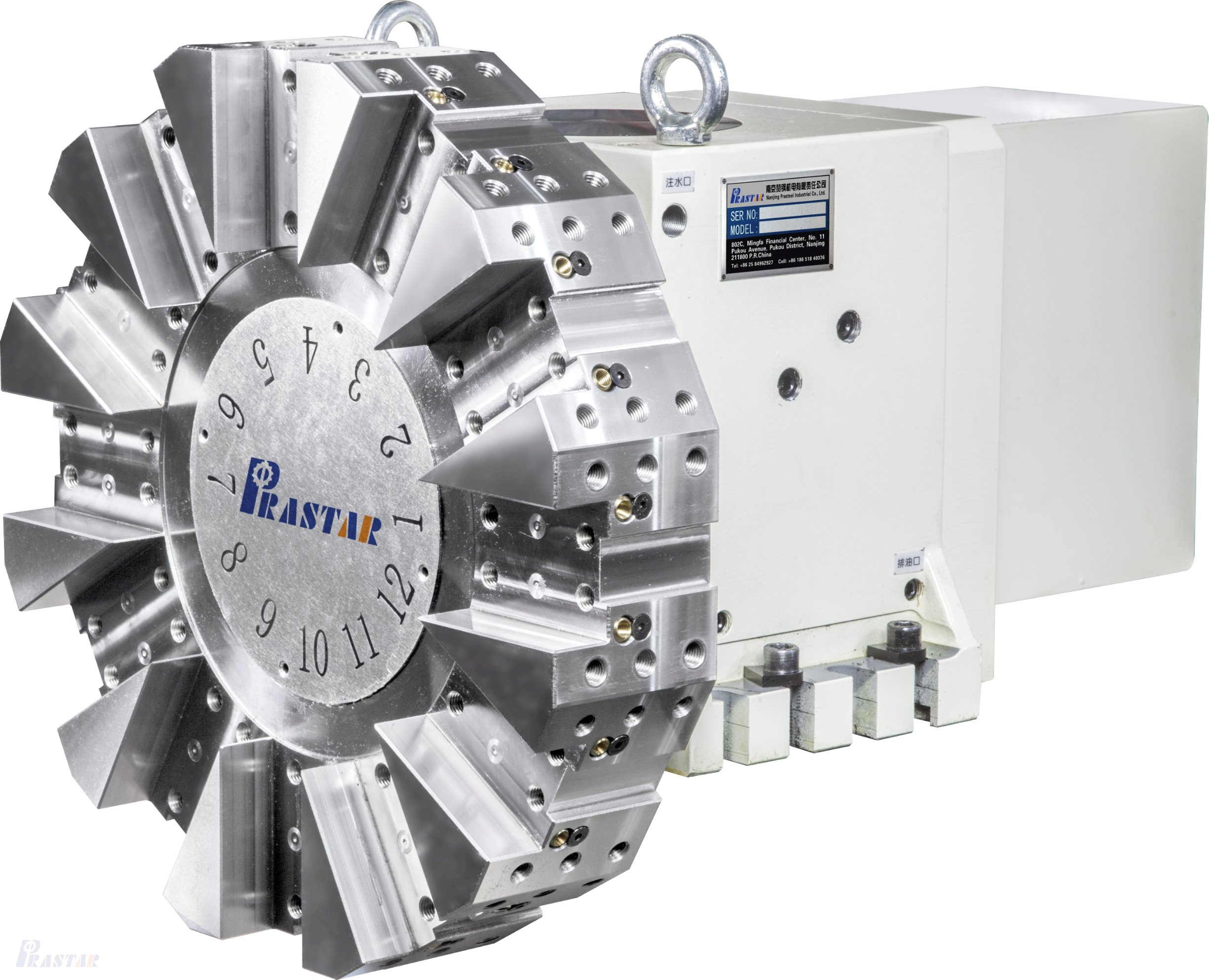

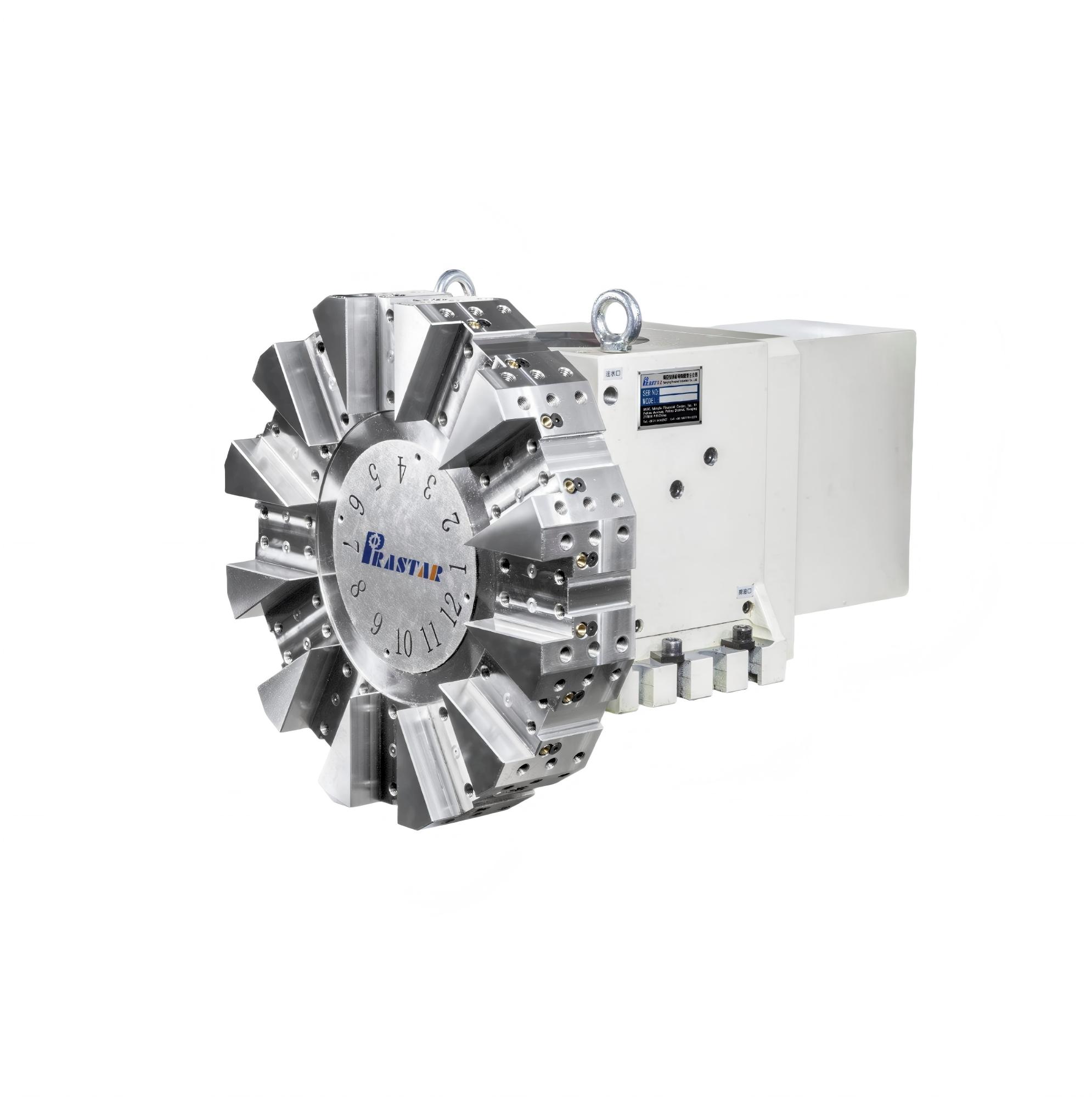

TCS-125
Technical Parameter
MODEL | TCS-125 | |
Center height | mm | 125 |
Number of tools | N | 8T/12T |
Gear speed ratio | 36:1 | |
Servo motor speed | rpm | 2000 |
Servo motor power | Kw | 1 |
Rotating time(tool to tool) | s | 0.6 |
Rotating time (including locking) | s | 0.75 |
Total indexing time for 180° | s | 0.8 |
Total indexing time for 180° （including locking） | s | 0.95 |
Curvic coupings type | 3piece | |
Hydraulic working pressure | kgf/cm² | 30-35 |
Flow rate | L/min | 30 |
Thrusting force of hyd.cyl. | kgf | 7500 |
Accuracy of repeatability | mm | 0.003 |
N.W.(Without tool disc) | Kg | 130 |
Turret Disc Size And Accessories | ||
8T/Disc size SW | mm | 380/420 |
12T/Disc size SW | mm | 440 |
O.D.Tool | mm | 32 |
Facing Tool | mm | 32 |
Boring Tool | mm | Φ50 |
