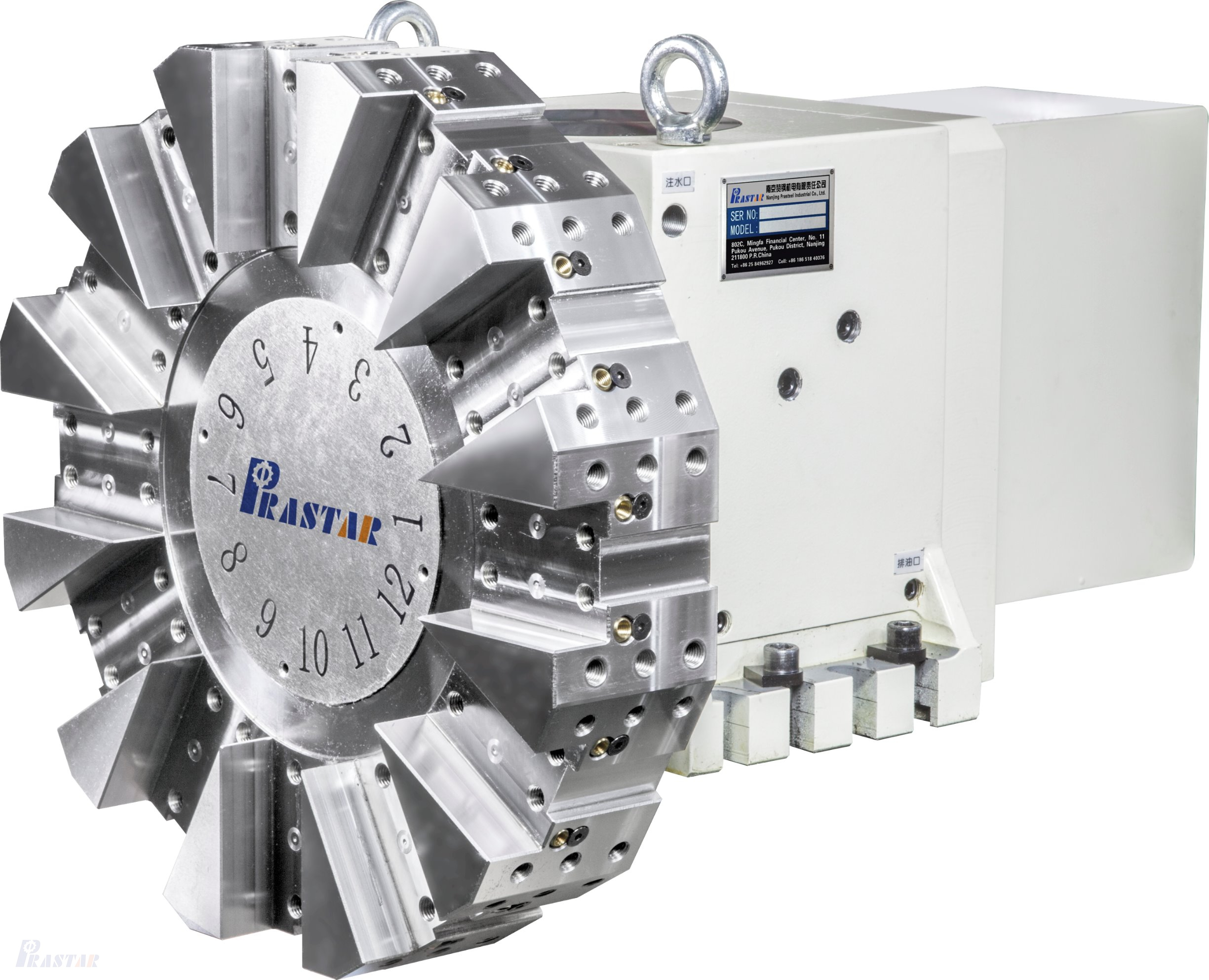

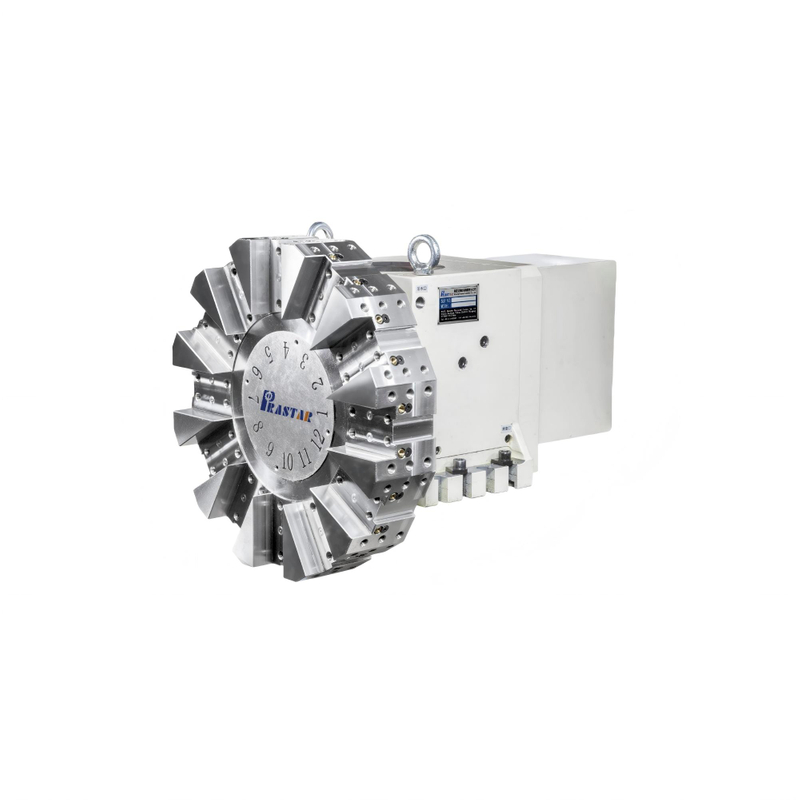

Hydraulic Servo Turret TCS-160

Very high rotate speed with min. indexing time
High rigidity, durability and low noise
Bi-direction rotate, double sensor for locking and unlocking status
Tool disc of 6T, 8T, 10T, 12T is optional
Availability:
Quantity:
  • TCS-160

Technical Parameter

MODEL

TCS-160

Center height

mm

160

Number of tools

N

8T/12T

Gear speed ratio


57:1

Servo motor speed

rpm

2000

Servo motor power

Kw

1

Rotating time(tool to tool)

s

0.7

Rotating time (including locking)

s

0.9

Total indexing time for 180°

s

0.9

Total indexing time for 180°

(including locking)

s

1.15

Curvic coupings type


3piece

Hydraulic working pressure

kgf/cm²

30-35

Flow rate

L/min

30

Thrusting force of hyd.cyl.

kgf

11000

Accuracy of repeatability

mm

0.003

N.W.(Without tool disc)

Kg

200

Turret Disc Size And Accessories

8T/Disc size SW

mm

480

12T/Disc size SW

mm

550

O.D.Tool

mm

32

Facing Tool

mm

32

Boring Tool

mm

Φ50
