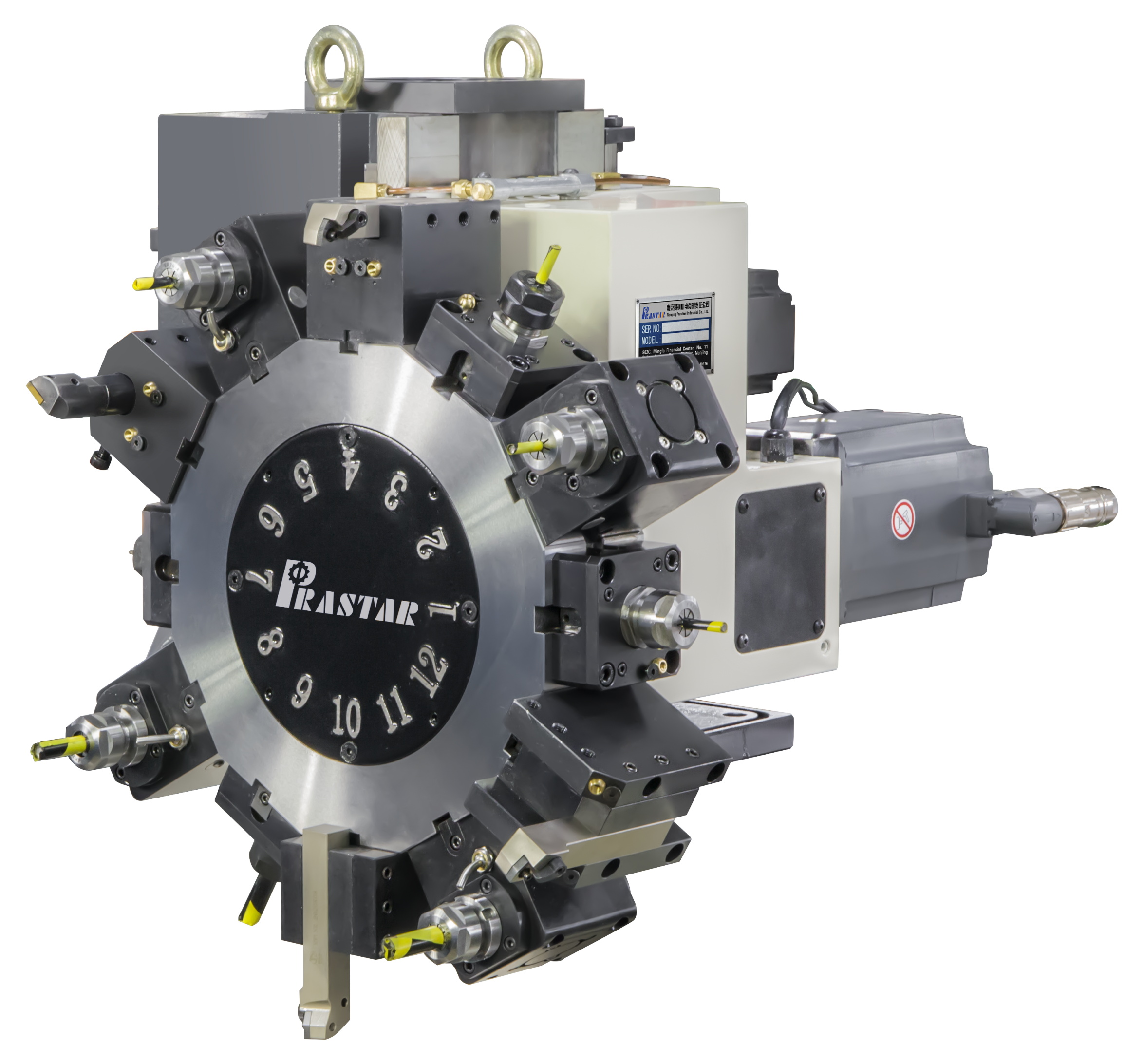

Y-axis live tooling disc turret TCSDY-100-12

New prodcut,integrated Y-axis power turret
With hard,high rigidity guideway.Turret combined with Y axis. Can be used on flat or slant bed CNC lathe
Patented locking mechanism can guarantee best rigidity for turning and milling, either with normal or power tool holders
Long stroke, BMT tooling system, allow turning and milling,can do turning, milling,drilling,tapping, keyway

Availability:

Quantity:



Inquire Add to Basket

Model:
TCSDY-100-12

Product Description

Technical Parameter

MODEL		TCSDY-100
Center height	mm	100
Number of tools	N	12T
Tooling size	BMT	55/65
Tool gear speed ratio		1:1
Powered motor max speed	rmp	5000
Powered motor max output torque	NM	40
Gear speed ratio		70:1
Servo motor speed	rmp	3000
Servo motor power	Kw	0.75
Repeatibility accuracy	deg	±1.6〃
Indexing accuracy	deg	±4〃
Type1 motor torque	NM	8
Type1 motor Gear speed ratio		1:2
Type2 motor torque(optional)	NM	16
Type2 motor gear speed ratio(optional)		1:1
Ball screw diameter x pitch	mm	40×5
Max speed in Y direction	m/min	10
Nominal stroke	mm	±70
Max feed force in Y direction	KN	18
Hydraulic brake max oil pressure	kgf/cm²	80
Position accuracy	um	≤20
N.W.	Kg	500
