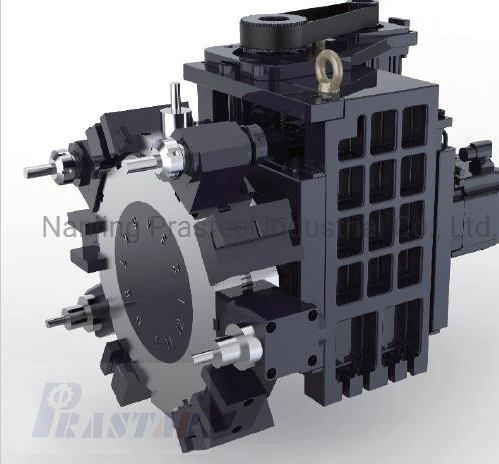

TCS.YC-20
Prastar
8466931000
Technical Parameter
MODEL | TCS.YC-20 | |
Center height | mm | 100 |
Number of tools | N | 12T |
Tooling size | BMT | 55/65 |
Tool gear speed ratio | 1:1 | |
| Powered motor max speed | rpm | 5000 |
| Powered motor max output torque | NM | 40 |
Gear speed ratio | 70:1 | |
Servo motor speed | rpm | 3000 |
Servo motor power | Kw | 0.75 |
Repeatibility accuracy | deg | ±1.6 |
Indexing accuracy | deg | ±4 |
motor torque | NM | 8 |
motor Gear speed ratio | 1:2 | |
Ball screw diameter x pitch | mm | 40×5 |
Max speed in Y direction | m/min | 10 |
Nominal stroke | mm | ±70 |
Max feed force in Y direction | KN | 18 |
Hydraulic brake max oil pressure | kgf/cm² | 80 |
Position accuracy | um | ≤20 |
N.W. | Kg | 330 |
