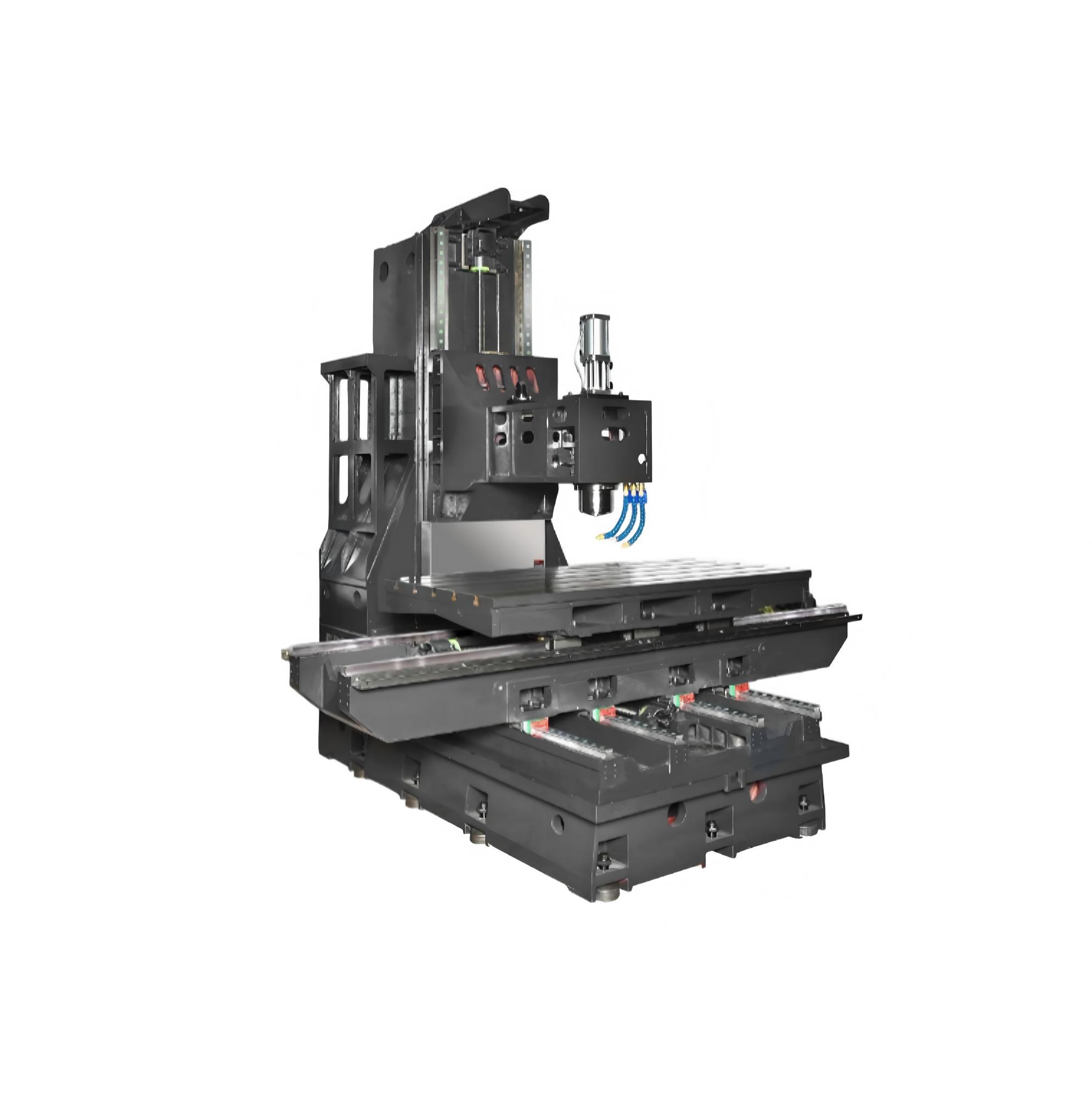

PL1490LD/PL1590LD/PL1690LD
Prasteel
| Main Configuration | Unit | PL1490LD | PL1590LD | PL1690LD | |
| Three-axis travel | X-axis travel | mm | 1400 | 1400 | 1500 |
| Y-axis travel | mm | 900 | 900 | 900 | |
| Z-axis travel | mm | 750 | 750 | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 | |||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 | |||
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-900 Φ155 Long nose :120-870 | |||
| Distance from spindle center to column guide surface | mm | 950 | 950 | 957 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15/*Φ155:15-18.5 | ||
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | |||
| Worktable | Worktable size | mm | 1900x900 | ||
| Maximum worktable load | kg | 1000 | 1000 | 1000 | |
| T-Slots (number - size x spacing) | 5 -22x165 | 5-22x165 | 5-22x165 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 | 20 | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | 20 | 20 | |
| Rapid traverse on Z-Axis | M/min | 20 | 12 | 20 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 4pcs 45mm Linear Rails 8 Sliding Blocks | ||||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | Z-Axis Hard box | Z-Axis 45mm Linear Rails 6 Sliding Blocks | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40x10 | Φ40x10 | Φ40x10 | ||
| Other Specifications | Three-Axis couplings | / | / | / | |
| Three-Axis screw bearings | / | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | / | ||
| Tool changing cylinder | / | / | / | ||
| Electric lubricator | / | / | / | ||
| Machine weight (Approx.) | T | 7.4 | 7.7 | 7.5 | |
| Machine footprint (length x width x height) | mm | 3390x2860x3080 | 3390x2860x3080 | 3530x2860x3080 | |
