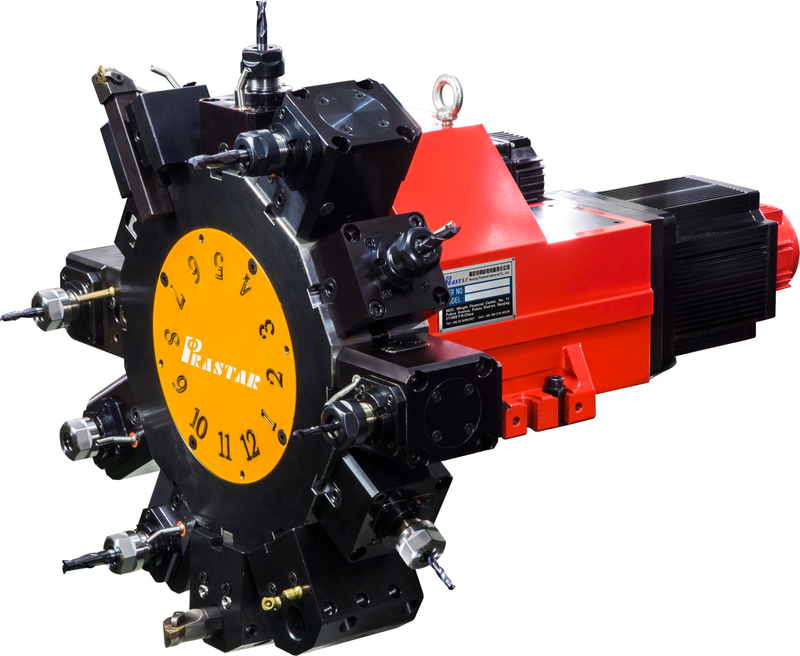

Live tooling disc turret TCSD-80-12T

With two pcs curvic coupling and hydraulic locking system guarantee the high rigidity, suitable for heavy machining
Max. speed of power tool holder is 5000/6000 rpm
BMT tooling system DIN1809
Availability:
Quantity:
  • TCSD-80-12T

Technical Parameter

MODEL

TCSD-80

Center height

mm

80

Number of tools

N

12T

Tooling size

BMT

45

Tool gear speed ratio


1:1

Powered motor max speed

rmp

5000

Powered motor max output torque

NM

25

Gear speed ratio


50:1

Servo motor speed

rmp

3000

Servo motor power

Kw

0.75

Rotating time (tool to tool)

s

0.5

Rotating time(including locking)

s

0.6

Total indexing time for 180°

s

0.8

Total indexing time for 180° (including locking)

s

0.9

Curvic coupings type


2piece

Hydraulic working pressure

 kgf/cm²

30-35

Flow rate

L/min

20

Repeatibility accuracy

deg

±1.6〃

Indexing accuracy

deg

±4〃

N.W.(without tool holder)

Kg

120
