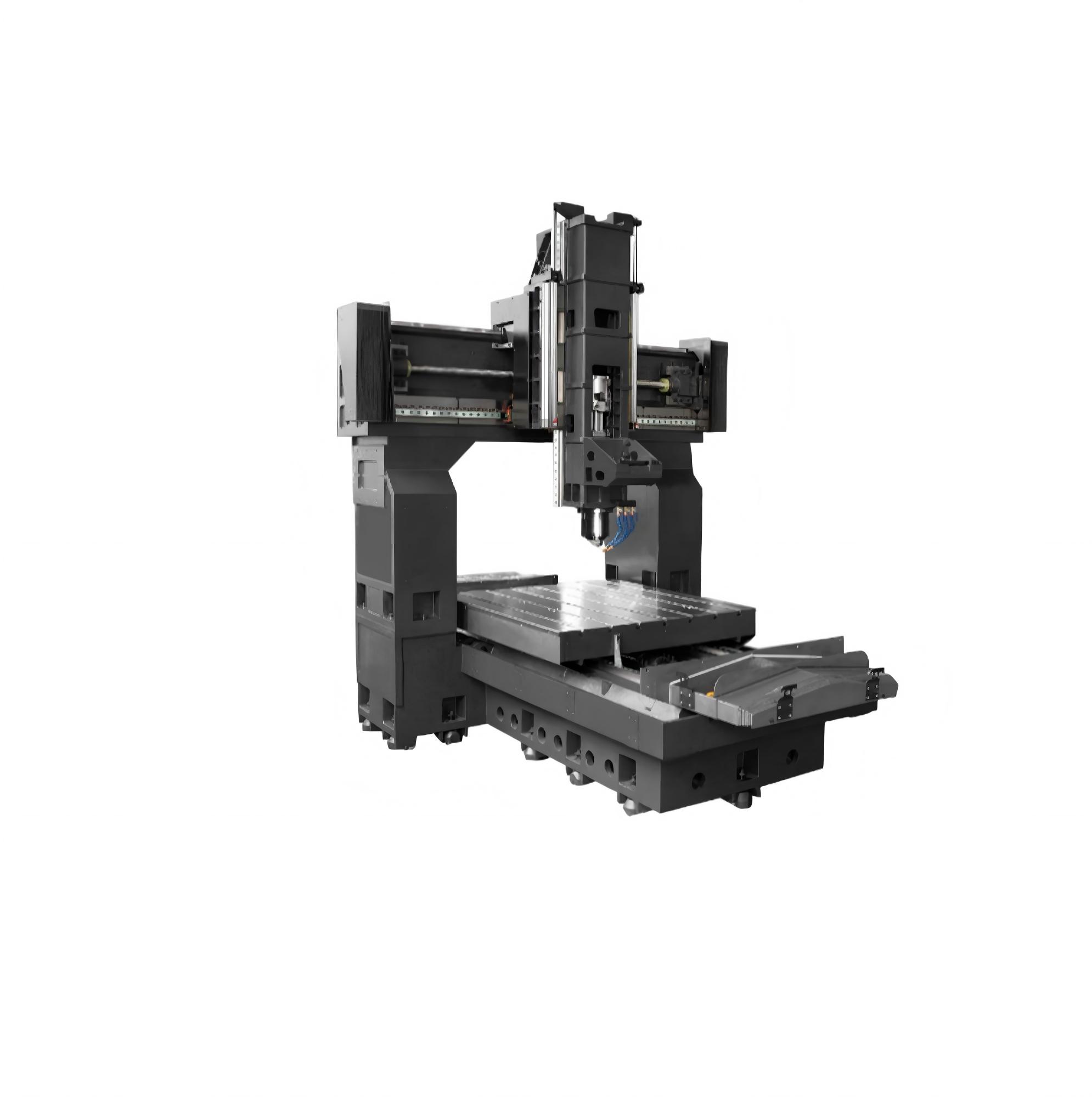

PL1816
Prasteel
| Specification | Unit | PL1816 | |
| Worktable surface dimensions (width x length) | mm | 1400x1700 | |
| Worktable travel in the X-axis direction | mm | 1800 | |
| Spindle slide travel in the Y-axis direction | mm | 1700 | |
| Spindle travel in the vertical Z-axis direction | mm | 800 | |
| Gantry width | mm | 1650 | |
| Distance from worktable to column base (door height) | mm | 1080 | |
| Distance from spindle nose to worktable surface | mm | 100~900 | |
| T-slots on worktable (number - size x spacing) | mm | 7-22x 200 | |
| Counterweight for Z-axis | mm | Double-acting balancing cylinder | |
| Spindle (Taiwanese/Japanese/Domestic) | mm | BT50-0190-6000 | |
| X/Y-axis roller guides: Taiwan HIWIN RGH45 / YTN MSR45 | x/8,y/5 | ||
| Z-axis roller guides: Taiwan HIWIN RGH45 / YTN MSR45 | z/10 | ||
| Ball Screw Specifications (HIWIN/YTN) | X-axis | 55 x12 | |
| Y-axis | 55 x12 | ||
| Z-axis | 50 x10 | ||
| X/Y/Z axis couplings | / | ||
| X/Y/Z axis ball screw bearings | / | ||
| Recommended three-phase servo motors for X/Z axes (> Torque N·m) | N.m | X:40Y:30Z:30 | |
| Machine tool dimensions (length x width x height) | mm | 3690x2770 x4020 | |
| Approximate worktable load capacity | T | 3 | |
| Approximate machine weight | T | 15 | |
| Specification | Unit | PL1816 | |
| Worktable surface dimensions (width x length) | mm | 1400x1700 | |
| Worktable travel in the X-axis direction | mm | 1800 | |
| Spindle slide travel in the Y-axis direction | mm | 1700 | |
| Spindle travel in the vertical Z-axis direction | mm | 800 | |
| Gantry width | mm | 1650 | |
| Distance from worktable to column base (door height) | mm | 1080 | |
| Distance from spindle nose to worktable surface | mm | 100~900 | |
| T-slots on worktable (number - size x spacing) | mm | 7-22x 200 | |
| Counterweight for Z-axis | mm | Double-acting balancing cylinder | |
| Spindle (Taiwanese/Japanese/Domestic) | mm | BT50-0190-6000 | |
| X/Y-axis roller guides: Taiwan HIWIN RGH45 / YTN MSR45 | x/8,y/5 | ||
| Z-axis roller guides: Taiwan HIWIN RGH45 / YTN MSR45 | z/10 | ||
| Ball Screw Specifications (HIWIN/YTN) | X-axis | 55 x12 | |
| Y-axis | 55 x12 | ||
| Z-axis | 50 x10 | ||
| X/Y/Z axis couplings | / | ||
| X/Y/Z axis ball screw bearings | / | ||
| Recommended three-phase servo motors for X/Z axes (> Torque N·m) | N.m | X:40Y:30Z:30 | |
| Machine tool dimensions (length x width x height) | mm | 3690x2770 x4020 | |
| Approximate worktable load capacity | T | 3 | |
| Approximate machine weight | T | 15 | |
