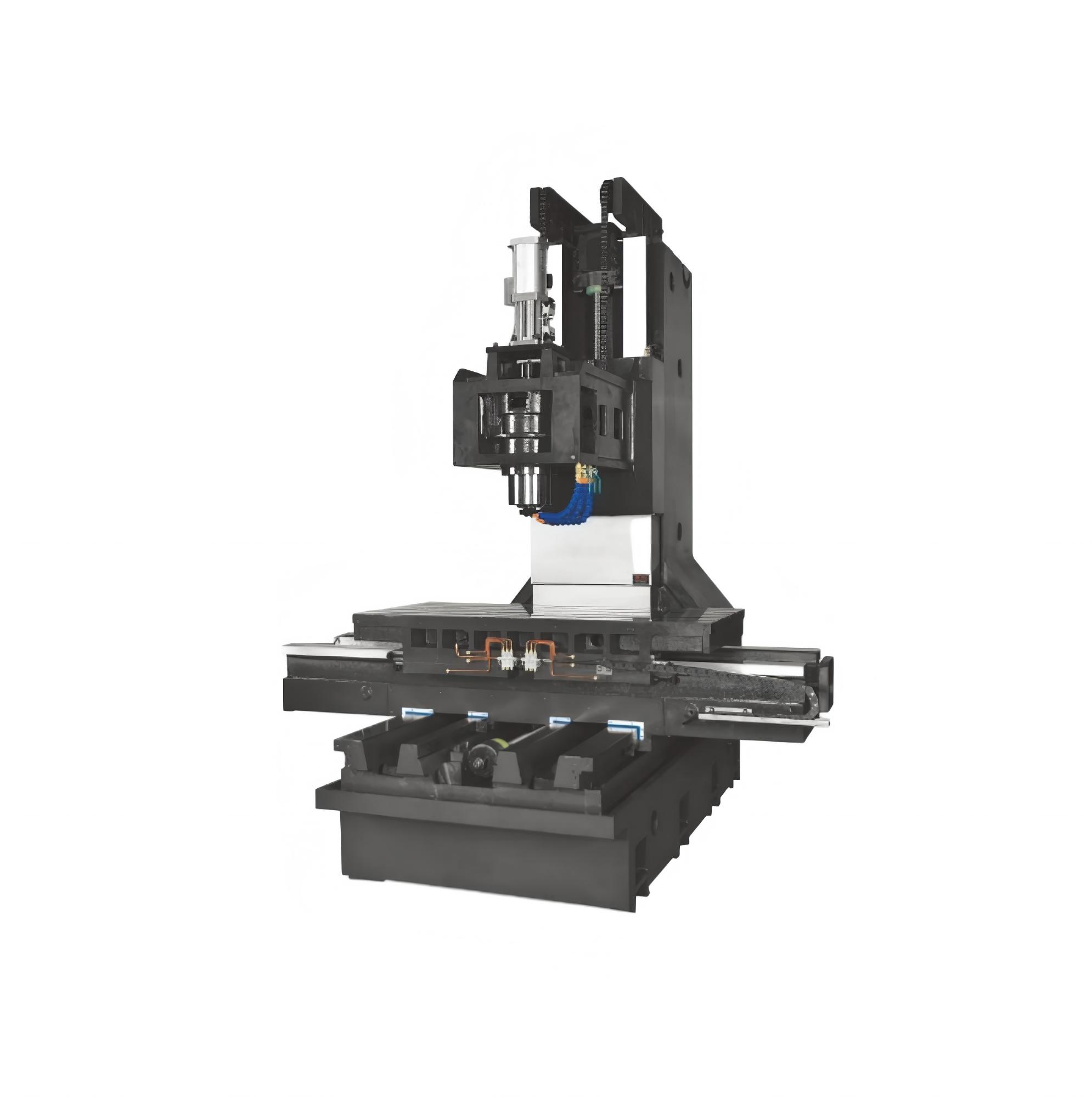

PL1265
Prasteel
| Main Configuration | Unit | PL1265 | PL1265 Gear head | |
| Three-axis travel | X-axis travel | mm | 1200 | 1200 |
| Y-axis travel | mm | 650 | 650 | |
| Z-axis travel | mm | 650 | 620 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 | ||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 | ||
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-800 Φ155 Long nose : 150-800 | 80-700 | |
| Distance from spindle center to column guide surface | mm | 698 | 700 | |
| Gear head | / | BT50-160 | ||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | ||
| Worktable | Worktable size | mm | 1380x600 | 1380x600 |
| Maximum worktable load | kg | 900 | 900 | |
| T-Slots (number - size x spacing) | 5 -18x110 | 5-18x110 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | 20 | |
| Rapid traverse on Z-Axis | M/min | 20 | 20 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis / Y-Axis / Z-Axis Hard rail | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40x10 /*Φ40x12 | |||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 5.7 | 6.4 | |
| Machine footprint (length x width x height) | mm | 3420x2370x2540 | 3240x2370x2540 | |
| Main Configuration | Unit | PL1265 | PL1265 Gear head | |
| Three-axis travel | X-axis travel | mm | 1200 | 1200 |
| Y-axis travel | mm | 650 | 650 | |
| Z-axis travel | mm | 650 | 620 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 | ||
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000 /*8000 | ||
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-800 Φ155 Long nose : 150-800 | 80-700 | |
| Distance from spindle center to column guide surface | mm | 698 | 700 | |
| Gear head | / | BT50-160 | ||
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:20 Z:20 | ||
| Worktable | Worktable size | mm | 1380x600 | 1380x600 |
| Maximum worktable load | kg | 900 | 900 | |
| T-Slots (number - size x spacing) | 5 -18x110 | 5-18x110 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20 | 20 |
| Rapid traverse on Y-Axis | M/mim | 20 | 20 | |
| Rapid traverse on Z-Axis | M/min | 20 | 20 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis / Y-Axis / Z-Axis Hard rail | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40x10 /*Φ40x12 | |||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 5.7 | 6.4 | |
| Machine footprint (length x width x height) | mm | 3420x2370x2540 | 3240x2370x2540 | |
