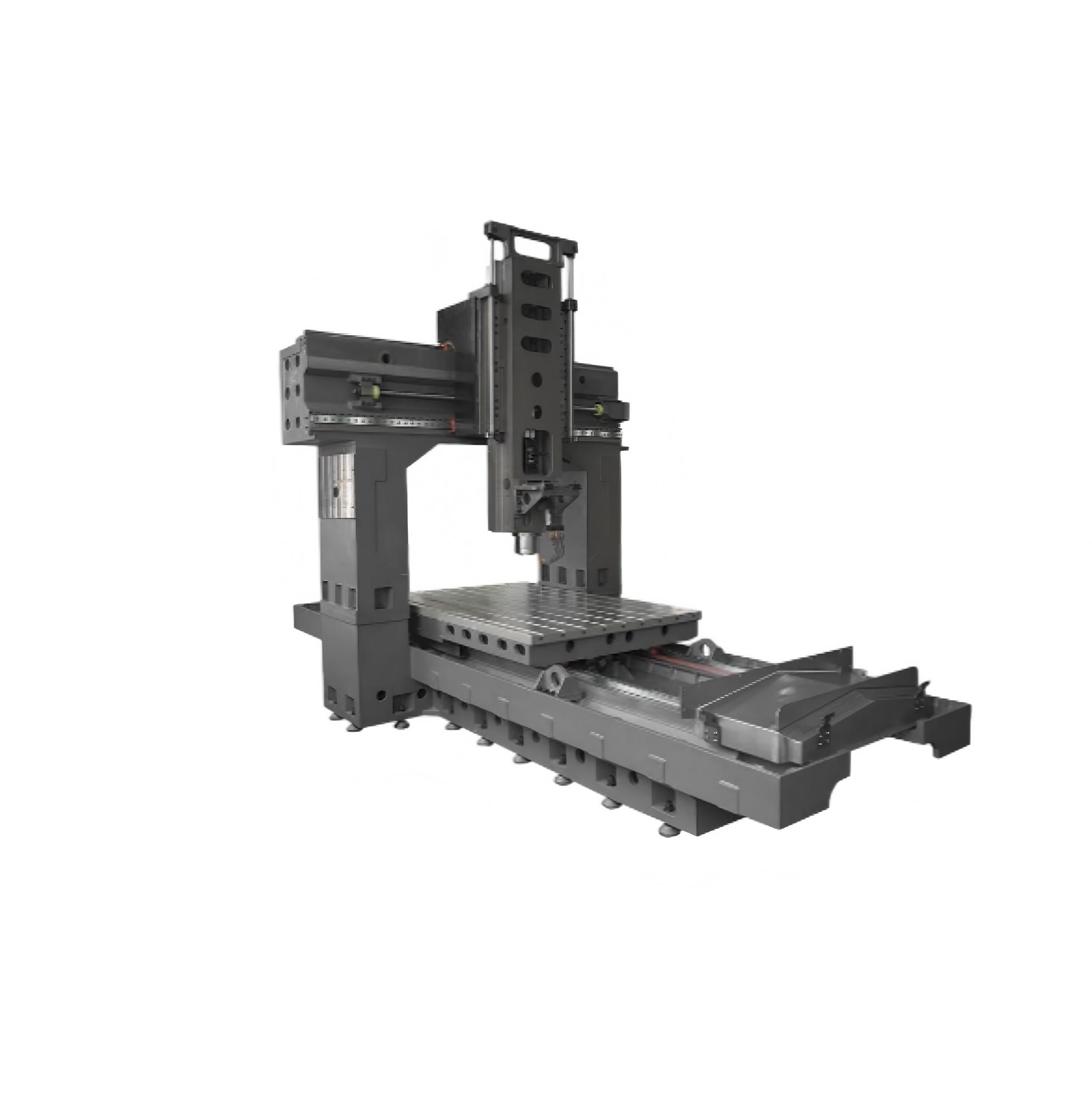

PL-LP2518
Prasteel
| Item | Specification | Unit | PL-LP2016 | PL-QL2016 | PL-LP2516 | PL-LP2518 | PL-QLP2518 | |
| Main Specifications | Worktable surface dimensions (width x length) | mm | 1300 x 2000 | 1400 x 2100 | 1300 x 2500 | 1600 x 2500 | 1600 x 2700 | |
| Worktable travel in the X-axis direction | mm | 2000 | 2000 | 2500 | 2500 | 2500 | ||
| Spindle slide travel in the Y-axis direction | mm | 1650 | 1700 | 1650 | 1800 | 1900 | ||
| Spindle travel in the vertical Z-axis direction | mm | 800 | 800 | 800 | 1000 | 800 | ||
| Gantry width | mm | 1660 | 1700 | 1660 | 1800 | 1900 | ||
| Distance from worktable to column base (door height) | mm | 1100 | 1080 | 1100 | 1300 | 1080 | ||
| Distance from spindle nose to worktable surface | mm | 250 ~1050 | 200 ~1000 | 250 ~1050 | 150 ~1150 | 200 ~1000 | ||
| T-slots on worktable (number - size x spacing) | mm | 7-22x170 | 7-22x200 | 7-22x170 | 9-22x180 | 9-22x180 | ||
| Spindle drive method | Belt | BT50-190 | BT50-190 | BT50-190 | BT50-190 | BT50-190 | ||
| ZF reducer + belt | rmp | 6000 | 6000 | 6000 | 6000 | 6000 | ||
| Gear head (Wiemarth) | 6000 | 6000 | 6000 | 6000 | 6000 | |||
| Rapid traverse feed rate | 15 | 15 | 15 | 15 | 15 | |||
| Cutting feed rate | 10 | 10 | 10 | 10 | 10 | |||
| Ball screw specifications/pitch for X/Y/Z axis | X:6310Y:5010Z:5010 | X:5010Y:5010Z:5010 | X:6312Y:5010Z:5010 | X:6312Y:5010Z:5010 | X:6312Y:5010Z:5010 | |||
| Guide way specifications/number of sliders for X/Y/Z axis | X-axis: Roller guide 55/6 sliders Y-axis: Roller guide 55/4 sliders Z-axis: Rectangular slide way | X-axis: Roller guide 55/8 sliders Y-axis: Roller guide 55/4 sliders Z-axis: Rectangular slide way | ||||||
| Servo motor drive method and transmission ratio for X/Y/Z axes | Direct drive for X/Y/Z | Direct drive for X/Y/Z | Direct drive for X/Y/Z | Direct drive for X/Y/Z | Direct drive for X/Y/Z | |||
| Recommended spindle motor | 22kw | 22kw | 22kw | 22kw | 22kw | |||
| Recommended three-phase servo motors for X/Z axes (> Torque N·m) | N.m | X:38Y:30Z:30 | X:38Y:30Z:30 | X:38Y:30Z:30 | X:38Y:30Z:30 | X:38Y:30Z:30 | ||
| Machine tool dimensions (length x width x height) | mm | 5590x3630x3830 | 5600x3300x3300 | 6600x3400x3500 | 6700x4030x3900 | 6840x3600x3300 | ||
| Approximate worktable load capacity | T | 4 | 4 | 5 | 7 | 5.5 | ||
| Approximate machine weight | T | 16 | 13.5 | 18 | 21 | 16 | ||
