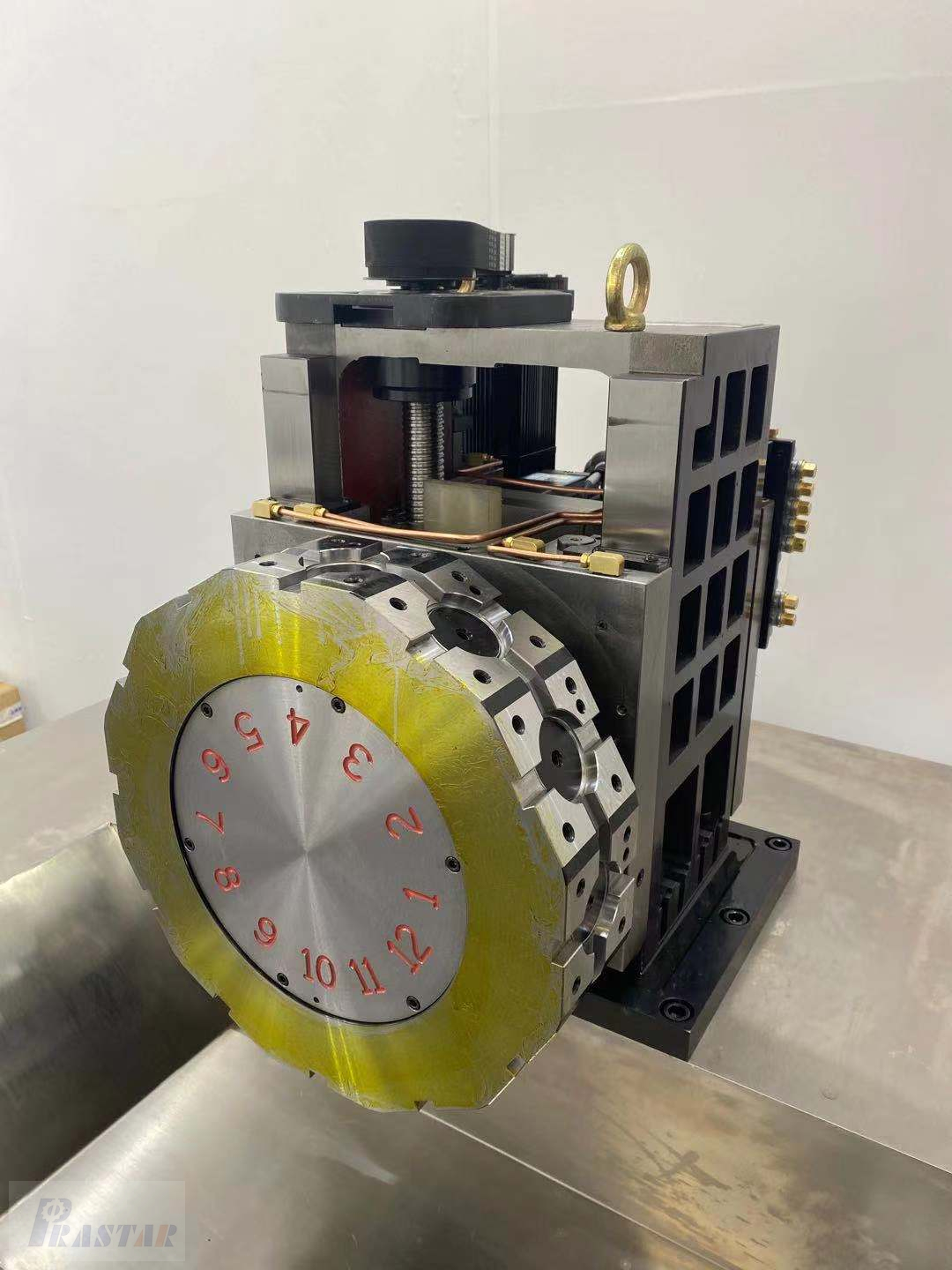

Y-axis live tooling disc turret TCSDYF-100-12

New prodcut,integrated Y-axis power turret
With hard,high rigidity guideway.Turret combined with Y axis. Can be used on flat or slant bed CNC lathe
Patented locking mechanism can guarantee best rigidity for turning and milling, either with normal or power tool holders
Long stroke, BMT tooling system, allow turning and milling,can do turning, milling,drilling,tapping, keyway
Availability:
Quantity:
  • TCSDYF-100-12
  • Prastar
  • 8466931000

Technical Parameter

MODEL

TCSDYF-100

Center height

mm

100

Number of tools

N

12T

Tooling size

BMT

65

Tool gear speed ratio


1:1

Powered motor max speedrpm
5000
Powered motor max output torqueNM40

Gear speed ratio


70:1

Servo motor speed

rpm

3000

Servo motor power

Kw

0.75

Repeatibility accuracy

deg

±1.6

Indexing accuracy

deg

±4

Type1 motor torque

NM

8

Type1 motor Gear speed ratio


1:2

Type2 motor torque(optional)

NM

16

Type2 motor gear speed   ratio(optional)


1:1

Ball screw diameter x pitch

mm

40×5

Max speed in Y direction

m/min

10

Nominal stroke

mm

±70

Max feed force in Y direction

KN

18

Hydraulic brake max oil pressure

kgf/cm²

80

Position accuracy

um

≤20

N.W.

Kg

330
