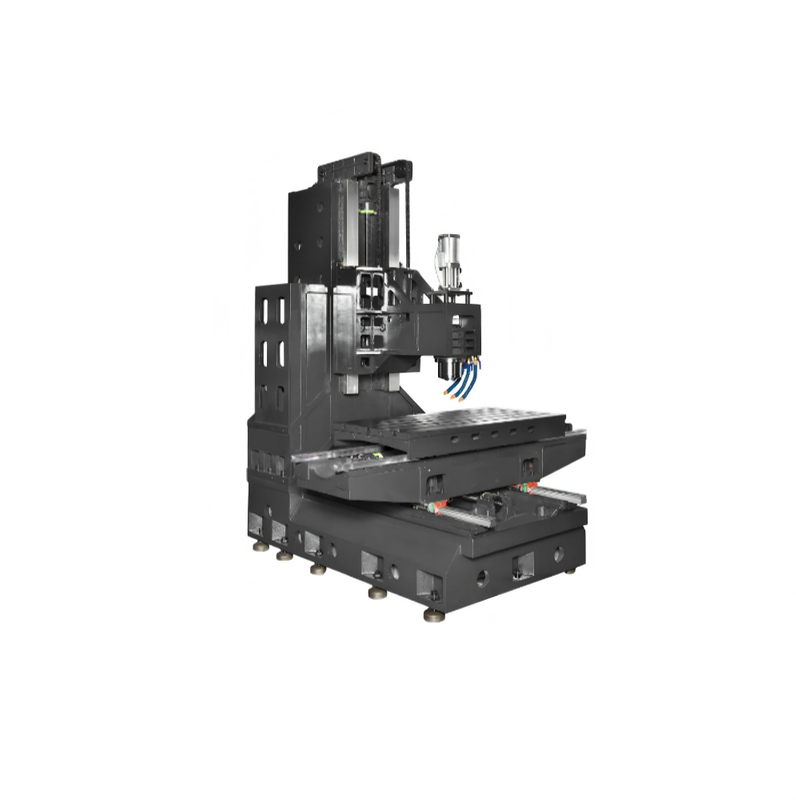

PL1380LQ/PL1380LQ2
Prasteel
| Main Configuration | Unit | PL1380LQ | PL1380LQ2 | |
| Three-axis travel | X-axis travel | mm | 1300 | 1300 |
| Y-axis travel | mm | 800 | 800 | |
| Z-axis travel | mm | 750 | 700 | |
| Spindle | Spindle specifications | BT40-Φ150 | ||
| Spindle speed | rmp | Φ150-8000/*12000 | ||
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 140-840 | Φ150 Long nose : 130-830 | |
| Distance from spindle center to column guide surface | mm | 845 | 850 | |
| Selected Motor Power | Recommended spindle motor | Kw | 11-15 | |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | ||
| Worktable | Worktable size | mm | 1500x800 | 1500x800 |
| Maximum worktable load | kg | 1000 | 1000 | |
| T-Slots (number - size x spacing) | 5 -18x145 | 5-18x145 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 20/30 | 20/30 |
| Rapid traverse on Y-Axis | M/mim | 20/30 | 20/30 | |
| Rapid traverse on Z-Axis | M/min | 20/30 | 15 | |
| Cutting feed rate | mm/min | 1-8000 | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks | |||
| Z-Axis 45mm Linear Rails 6 Sliding Blocks | Z-Axis Hard box | |||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40x10 | Φ40x10 | ||
| Other Specifications | Three-Axis couplings | / | / | |
| Three-Axis screw bearings | / | / | ||
| X, Y, Z Axis telescopic covers | / | / | ||
| Tool changing cylinder | / | / | ||
| Electric lubricator | / | / | ||
| Machine weight (Approx.) | T | 6.2 | 6.4 | |
| Machine footprint (length x width x height) | mm | 3620x2580x2625 | ||
