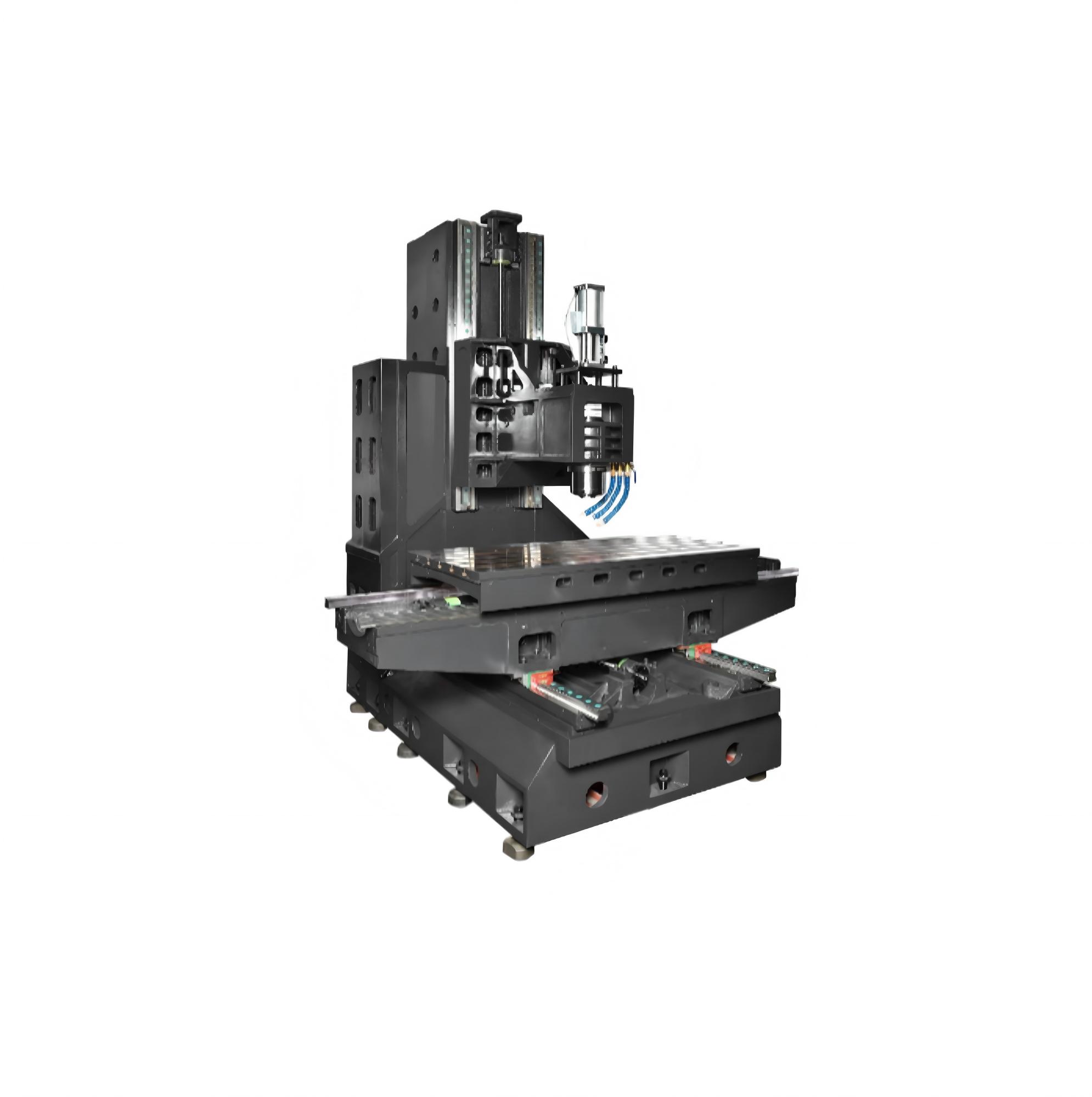

PL1375LC
Prasteel
| Main Configuration | Unit | PL1375LC | |
| Three-axis travel | X-axis travel | mm | 1300 |
| Y-axis travel | mm | 750 | |
| Z-axis travel | mm | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000/8000/*Φ190-6000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-850 Φ155 Long nose : 120-820 | |
| Distance from spindle center to column guide surface | mm | 809 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15-18.5 /*Φ190:18.5 |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | |
| Worktable | Worktable size | mm | 1450x700 |
| Maximum worktable load | kg | 1200 | |
| T-Slots (number - size x spacing) | 5 -18x115 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 24 |
| Rapid traverse on Y-Axis | M/mim | 24 | |
| Rapid traverse on Z-Axis | M/min | 24 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks Z-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×20 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 6 | |
| Machine footprint (length x width x height) | mm | 3500x2500x3100 | |
| Main Configuration | Unit | PL1375LC | |
| Three-axis travel | X-axis travel | mm | 1300 |
| Y-axis travel | mm | 750 | |
| Z-axis travel | mm | 750 | |
| Spindle | Spindle specifications | BT40-Φ150 /*BT50-Φ155 /*BT50-Φ190 | |
| Spindle speed | rmp | Φ150-8000/*12000 /*Φ155-6000/8000/*Φ190-6000 | |
| Distance from spindle nose to table surface | mm | Φ150 Long nose : 150-850 Φ155 Long nose : 120-820 | |
| Distance from spindle center to column guide surface | mm | 809 | |
| Selected Motor Power | Recommended spindle motor | Kw | Φ150:11-15 /*Φ155:15-18.5 /*Φ190:18.5 |
| Recommended X/Y/Z axis motors | N.m | X/Y:30 Z:30 | |
| Worktable | Worktable size | mm | 1450x700 |
| Maximum worktable load | kg | 1200 | |
| T-Slots (number - size x spacing) | 5 -18x115 | ||
| Rapid traverse | Rapid traverse on X-Axis | M/min | 24 |
| Rapid traverse on Y-Axis | M/mim | 24 | |
| Rapid traverse on Z-Axis | M/min | 24 | |
| Cutting feed rate | mm/min | 1-8000 | |
| X/Y/Z axis ways (Ball/Roller) (Hiwin/TBI, Taiwan) | X-Axis 45mm Linear Rails 6 Sliding Blocks Y-Axis 45mm Linear Rails 4 Sliding Blocks Z-Axis 45mm Linear Rails 4 Sliding Blocks | ||
| X/Y/Z Axis Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | Φ40×20 | ||
| Other Specifications | Three-Axis couplings | / | |
| Three-Axis screw bearings | / | ||
| X, Y, Z Axis telescopic covers | / | ||
| Tool changing cylinder | / | ||
| Electric lubricator | / | ||
| Machine weight (Approx.) | T | 6 | |
| Machine footprint (length x width x height) | mm | 3500x2500x3100 | |
