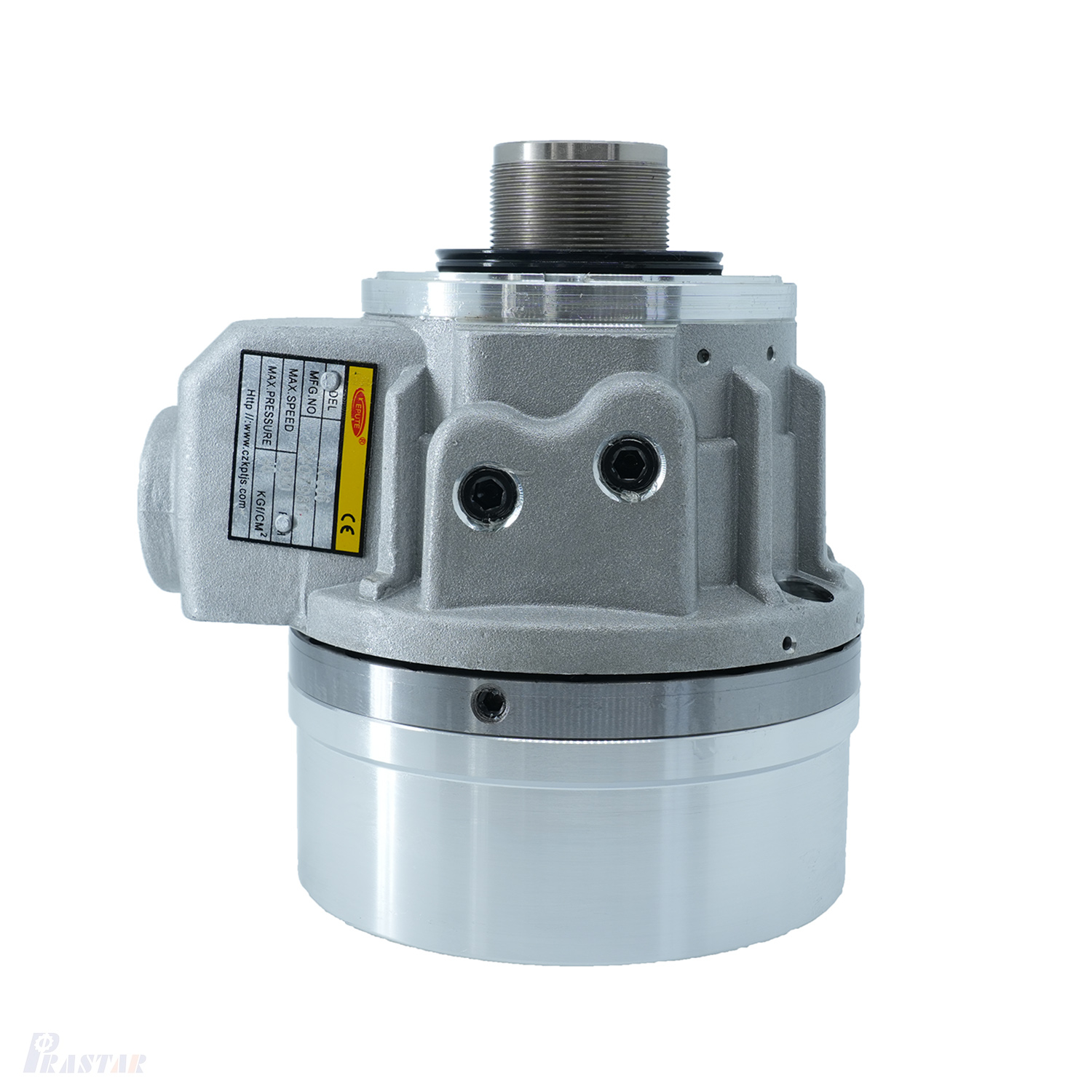

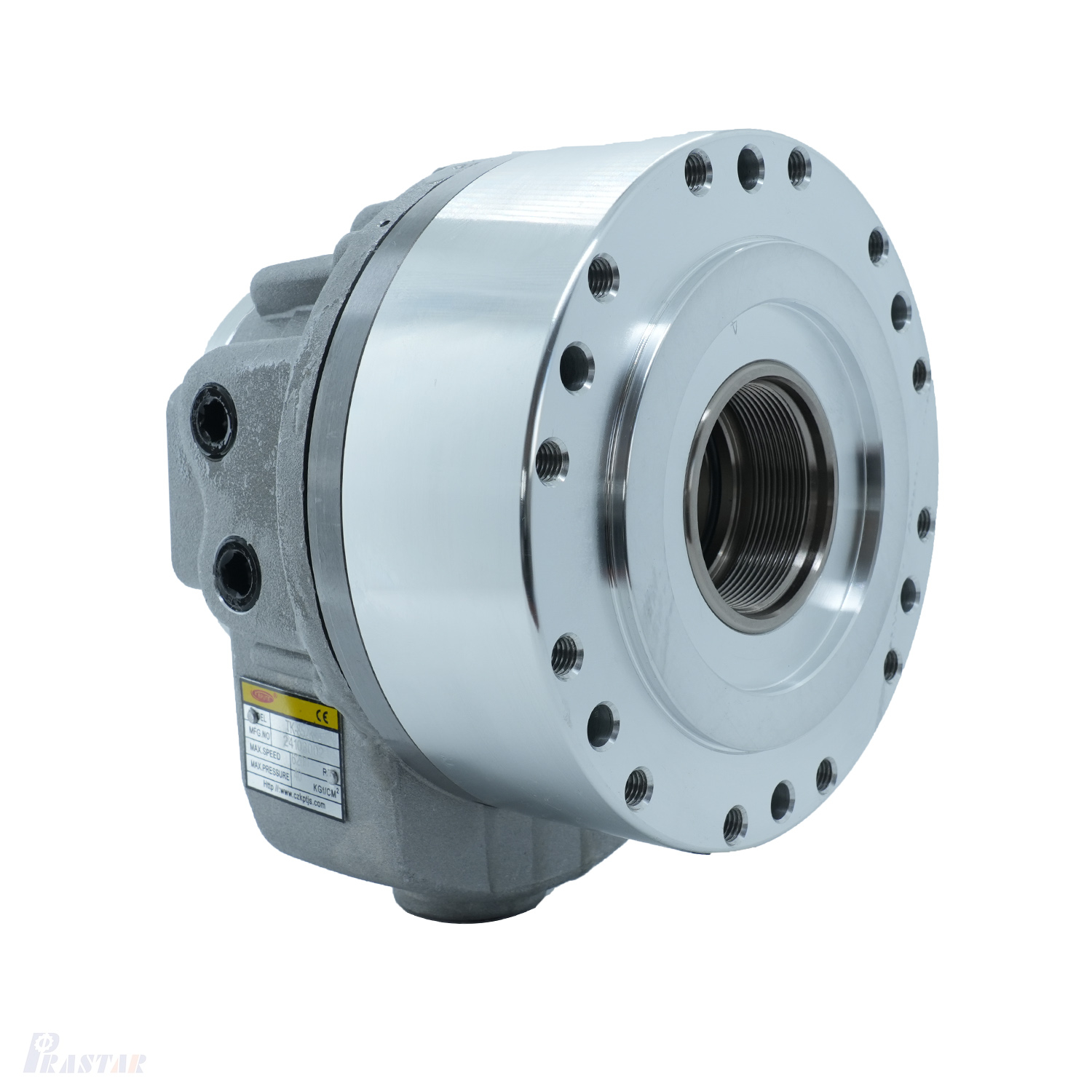

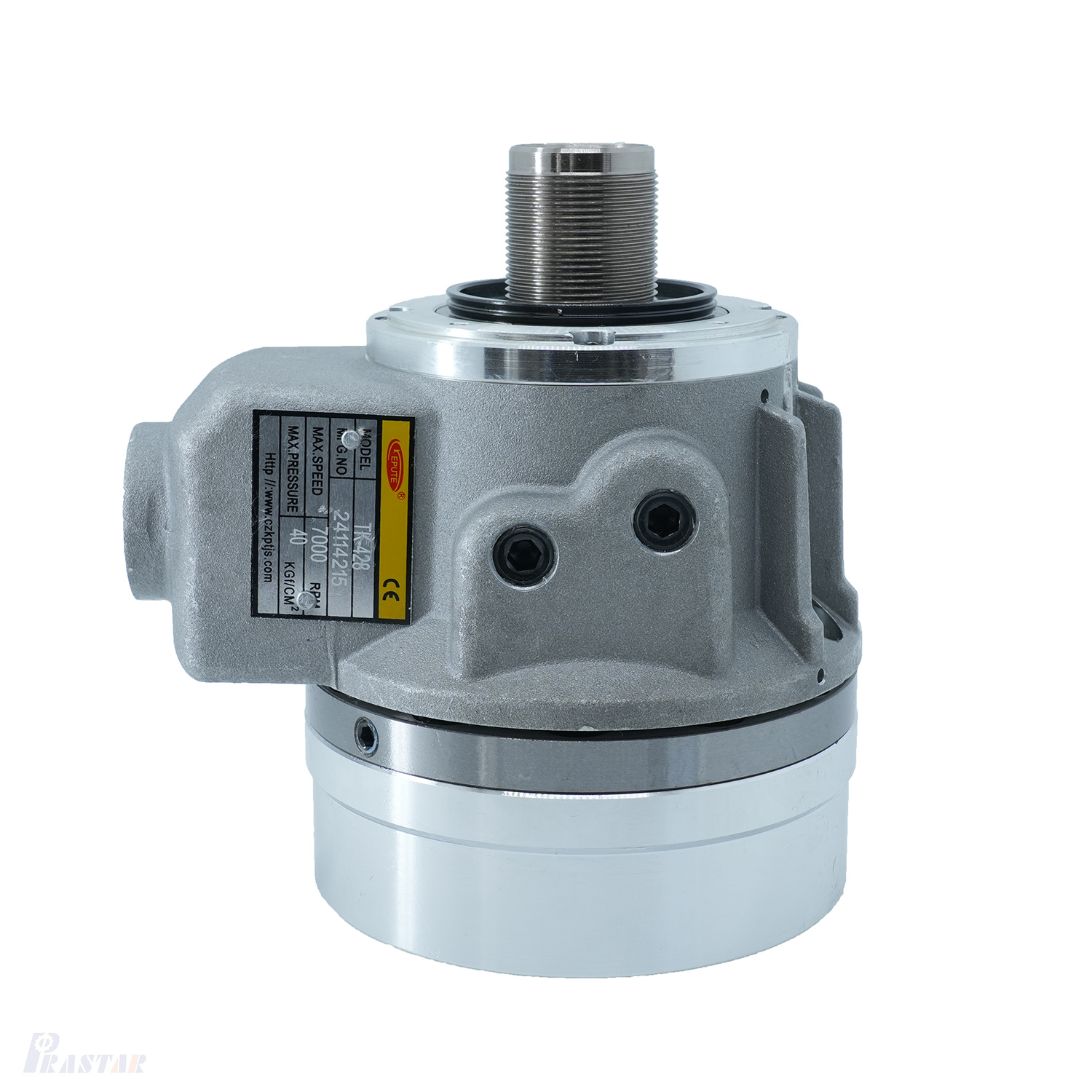

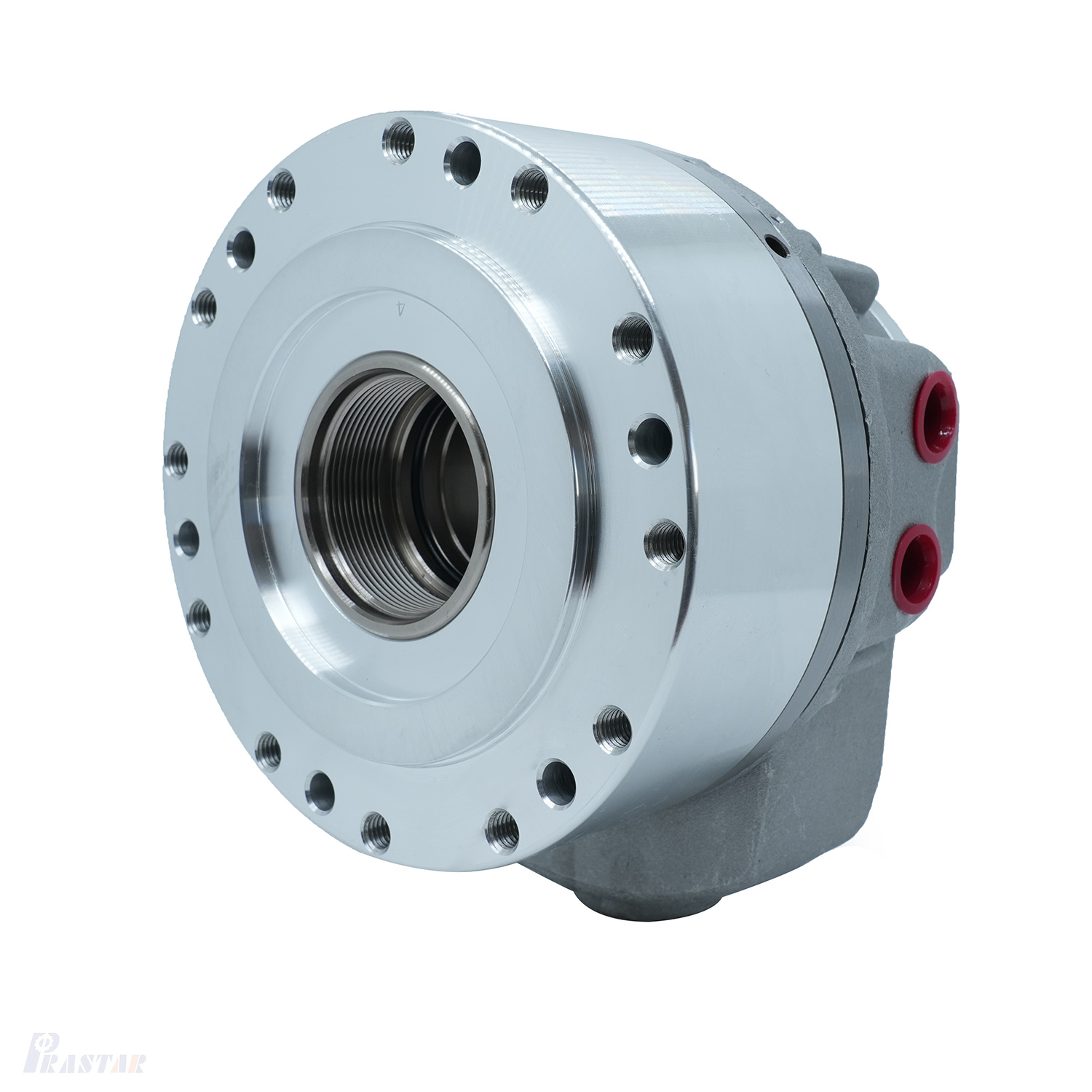

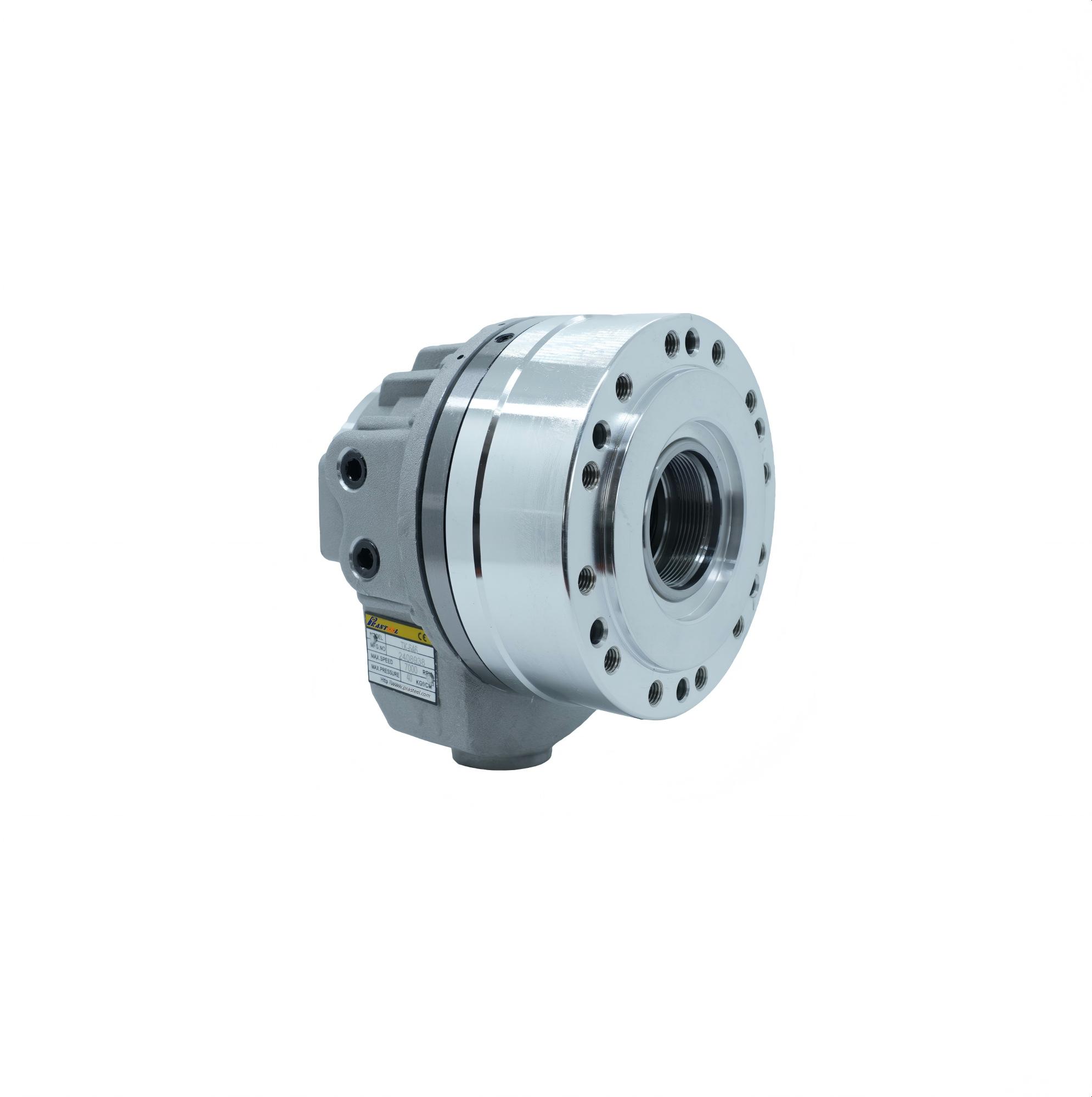

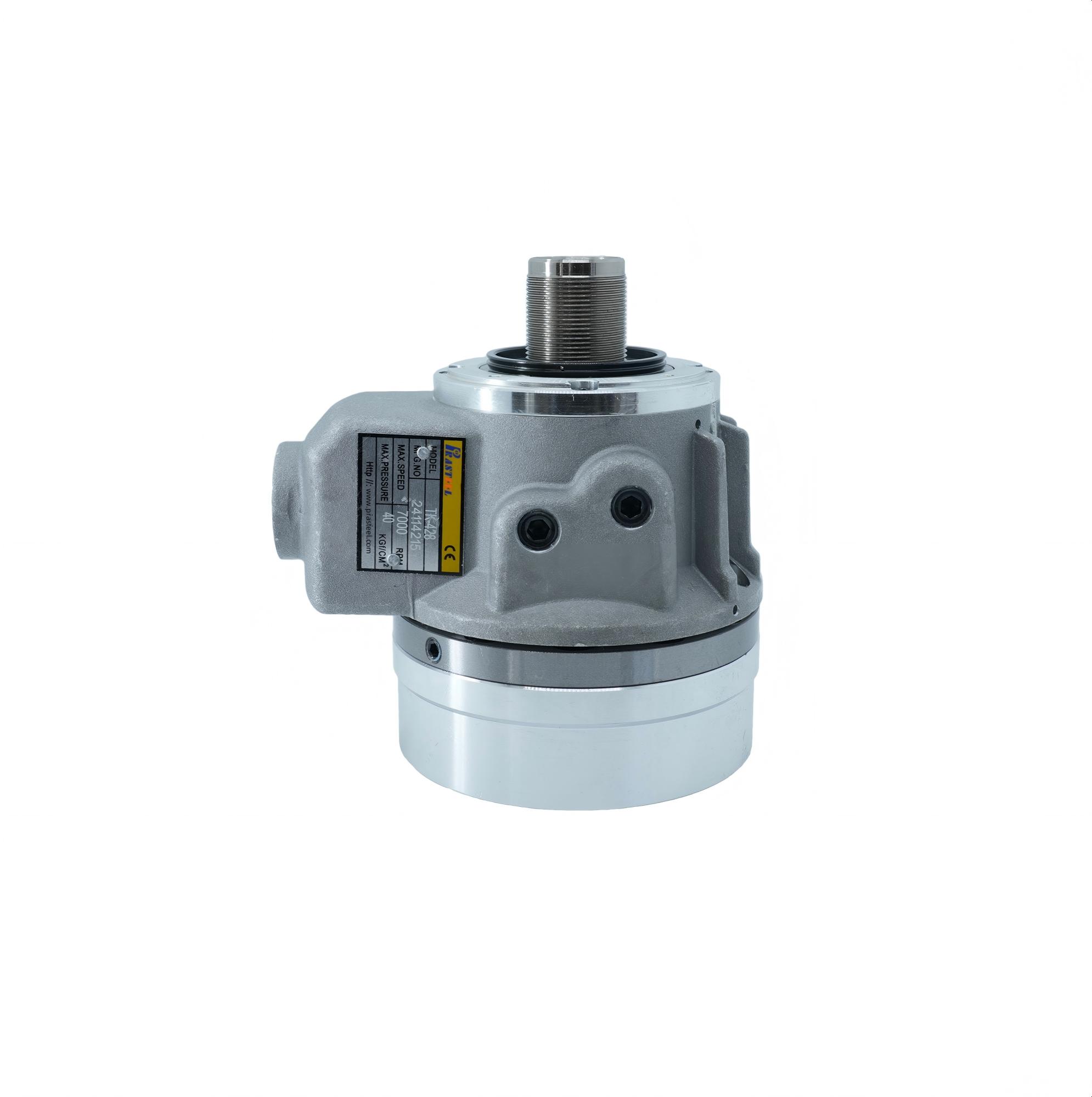

Ultra thin hollow rotary oil hydraulic Cylinder

1. Ultra-thin, large hole rotary oil hydraulic cylinder with total length of only two-thirds of the original type.
2. When installing,fix it though rear locking.
Availability:
Quantity:
Inquire Add to Basket

  • TK

  • Prasteel

WPS图片拼图



Size parameter



   Model

 A

I.D


  B


  C


  D

 E

 h7


 F

         G1         G2


 H


  J


 K


   L1


L2


   M1


M2


M3
Max Min Max Min
TK428 90 126 100 112 80 40 10





  0

 23 13 53 88 135 M6x60 14 M33x1.5 25





 15
TK536 105 142 115 124 100 48 15 27 12 65 94 150 M8x70 14 M42x1.5 25
TK646 125 165 140 140 120 65 15 28 13 58 96 141 M8x65 15 M55x2 25
TK646(S) 125 165 130 147 100 65 15 28 13 68 86 153 M8x75 15 M55x2 30
TK852 150 185 170 165 130 70 20 30 10 73 102 164 M8x75 15 M60x2 30
TK1075(S) 175 215 190 195 160 95 25 39 14 84 131 181 M10x90 20 M85x2 35




Model


   N1


N2


  O

O1

H8

O2

H8


  P


Q1


Q2

R

g7


 T


 U


V


W1


W2


X1


  X2


Y1


  Y2
TK428 M34x1.5 25 PT1/4 30 28 89 7 28 32 65 86 2 63 80 43 M4x8 76 M4x7
TK536 M44x1.5
 28 PT1/4 38 36 104 7 34 42 73 98 2 66 106 54 M5x8 83 M5x6
TK646 M52x1.5 24 PT3/8 50 46 96 7 36 50 90 116 2 79 119 63 M6x8 98 M5x6
TK646(S) M52x1.5
 24 PT3/8 50 46 108 7 36 50 90 116 2 79 119 63 M6x8 98 M5x6
TK852 M58x1.5
 25 PT1/2 55 52 113 8 40 56 97 128 2 82 133 72 M6x8 110 M5x6
TK1075(S) M84x2 30 PT1/2 80 75 126 10 46 81 125 163 2 98 160 98 M6x8 155 M6x8


Performance  parameters




    Spec.


      Piston area cm2


    min(r.p.m)


     MPa(kgf/cm2)

           GD2

         kg.m2


    lit./min.



       kg



   Model


Press  side


Pull  side


Highest turnover number


Maximun working pressure

           GD2

          kg.m2

 Total volume of oil drainage


   Weight
  TK428     53.2     50.5         8000          3.5（35）            0.03         2.0         5
  TK536     70.7     62.8         8000





         4.0（40）

            0.05         2.5       7.4
  TK646     99.1     88.0         7000            0.06         3.0       9.7
 TK646(S)     99.1     88.0         7000            0.06         3.0       9.7
  TK852   135.3   125.0         6500            0.11         3.9      11.8
TK1075(S)   179.5   163.5         5000            0.24         4.2      21.5
