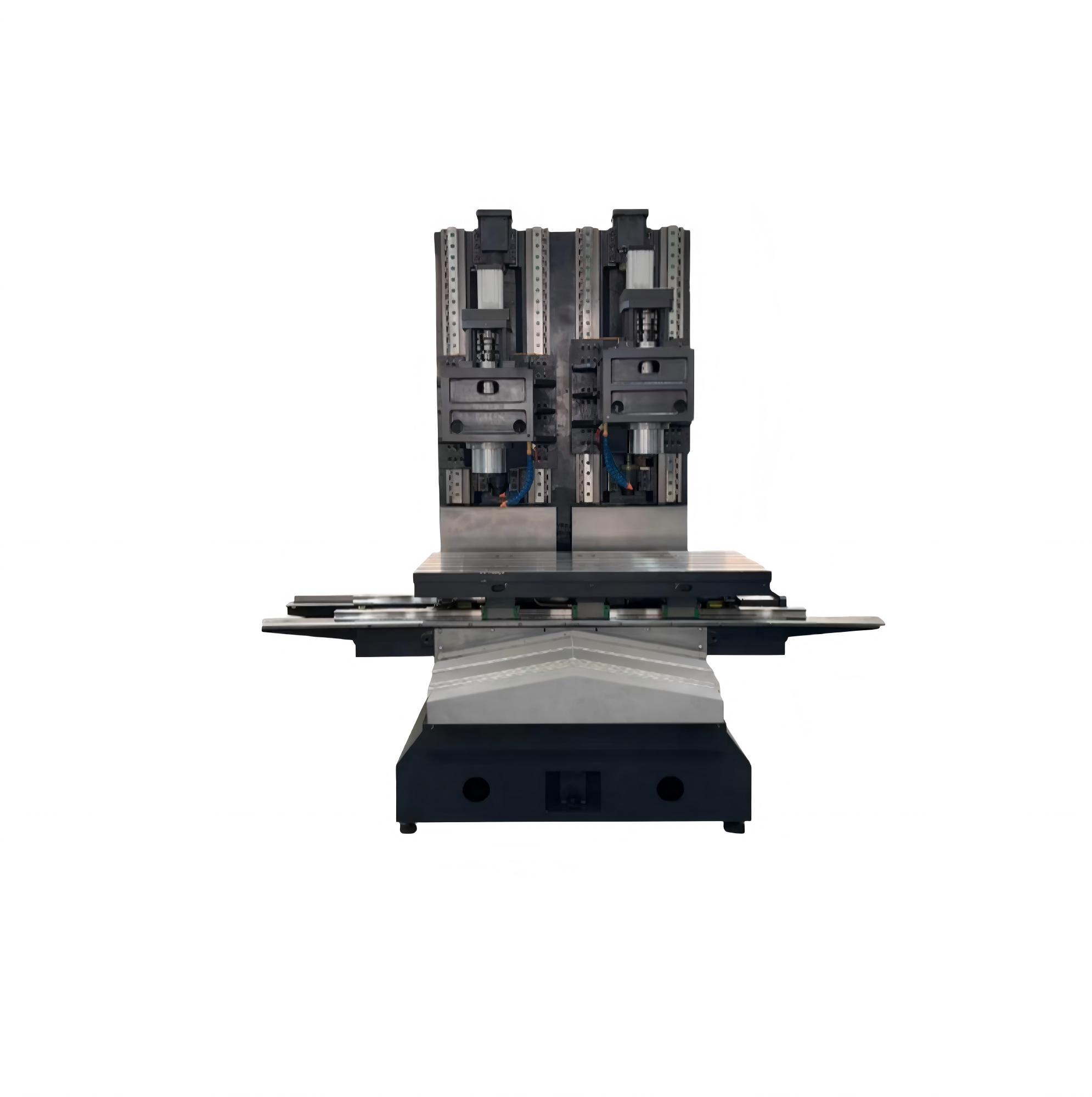

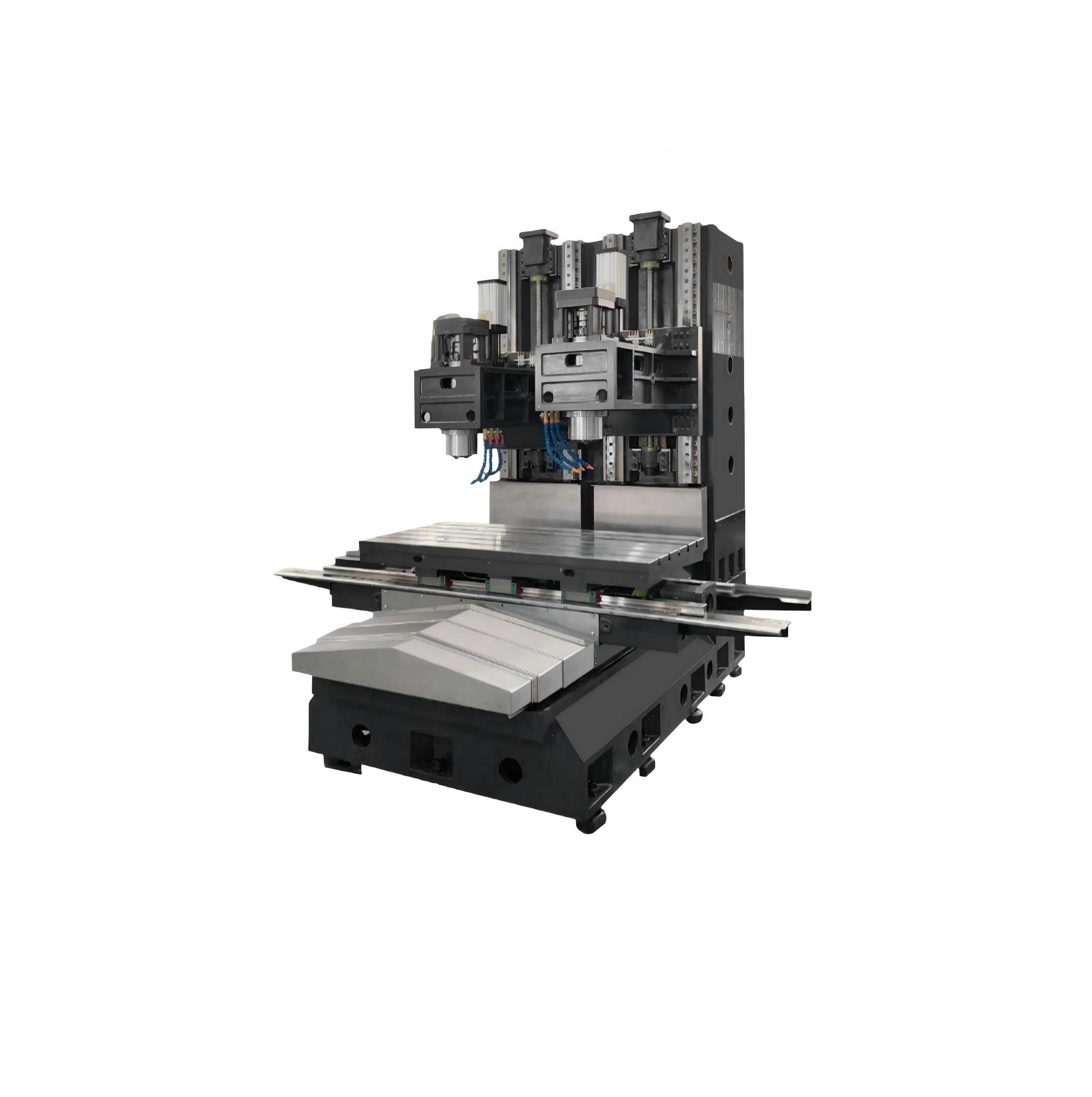

PL24W
Prasteel
| Main Configuration | Unit | PL24W | |
| Three-axis Travel | X-axis Travel | mm | 800 |
| Y-axis Travel | mm | 670 | |
| Z-axis Travel | mm | 750 | |
| Distance Between Dual Spindles | mm | 670 | |
| Single Spindle Left and Right Centering Travel (Worktable Center) | mm | 130 | |
| Spindle | Spindle | BT40-Φ150 | |
| Spindle Speed | rmp | 8000 | |
| Distance from Spindle Nose to Table Surface | mm | 200-950 | |
| Distance from Spindle Center to Column Guide Surface | mm | 722 | |
| Selected Motor Power | Recommended Spindle Motor | Kw | 7.5-11 |
| Recommended X/Y/Z Axis Motors | Nm | X/Y:20 Z:20 | |
| Worktable | Worktable Size | mm | 1400×650 |
| T-Slots (Number - Size x Spacing) | mm | 5-18×110 | |
| Maximum Worktable Load | Kg | 600 | |
| Rapid Traverse | Rapid Traverse on X-Axis | M/min | 24 |
| Rapid Traverse on Y-Axis | M/min | 24 | |
| Rapid Traverse on Z-Axis | M/min | 24 | |
| X/Y/Z Axis Ways (Ball/Ball Screw) (Hiwin/TBI, Taiwan) | X-Axis with 45mm Linear Rails and 6 Sliding Blocks Y-Axis with 45mm Linear Rails and 4 Sliding Blocks Z-Axis with 45mm Linear Rails and 6 Sliding Blocks | ||
| XYZ Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | X/Y/Z: Φ 40×12 | ||
| Other Specifications | Three-Axis Couplings | / | |
| Three-Axis Screw Bearings | / | ||
| X, Y, Z Axis Telescopic Covers | / | ||
| Tool Changing Cylinder | / | ||
| Electric Lubricator | / | ||
| Machine Weight (Approx.) | T | 5.5 | |
| Machine Footprint (Length x Width x Height) | mm | 2550×2350×2600 | |
| Main Configuration | Unit | PL24W | |
| Three-axis Travel | X-axis Travel | mm | 800 |
| Y-axis Travel | mm | 670 | |
| Z-axis Travel | mm | 750 | |
| Distance Between Dual Spindles | mm | 670 | |
| Single Spindle Left and Right Centering Travel (Worktable Center) | mm | 130 | |
| Spindle | Spindle | BT40-Φ150 | |
| Spindle Speed | rmp | 8000 | |
| Distance from Spindle Nose to Table Surface | mm | 200-950 | |
| Distance from Spindle Center to Column Guide Surface | mm | 722 | |
| Selected Motor Power | Recommended Spindle Motor | Kw | 7.5-11 |
| Recommended X/Y/Z Axis Motors | Nm | X/Y:20 Z:20 | |
| Worktable | Worktable Size | mm | 1400×650 |
| T-Slots (Number - Size x Spacing) | mm | 5-18×110 | |
| Maximum Worktable Load | Kg | 600 | |
| Rapid Traverse | Rapid Traverse on X-Axis | M/min | 24 |
| Rapid Traverse on Y-Axis | M/min | 24 | |
| Rapid Traverse on Z-Axis | M/min | 24 | |
| X/Y/Z Axis Ways (Ball/Ball Screw) (Hiwin/TBI, Taiwan) | X-Axis with 45mm Linear Rails and 6 Sliding Blocks Y-Axis with 45mm Linear Rails and 4 Sliding Blocks Z-Axis with 45mm Linear Rails and 6 Sliding Blocks | ||
| XYZ Ball Screws, Grade C3 (Hiwin/TBI, Taiwan) | X/Y/Z: Φ 40×12 | ||
| Other Specifications | Three-Axis Couplings | / | |
| Three-Axis Screw Bearings | / | ||
| X, Y, Z Axis Telescopic Covers | / | ||
| Tool Changing Cylinder | / | ||
| Electric Lubricator | / | ||
| Machine Weight (Approx.) | T | 5.5 | |
| Machine Footprint (Length x Width x Height) | mm | 2550×2350×2600 | |
