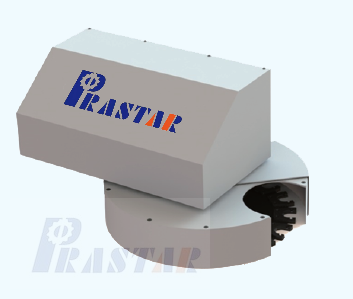

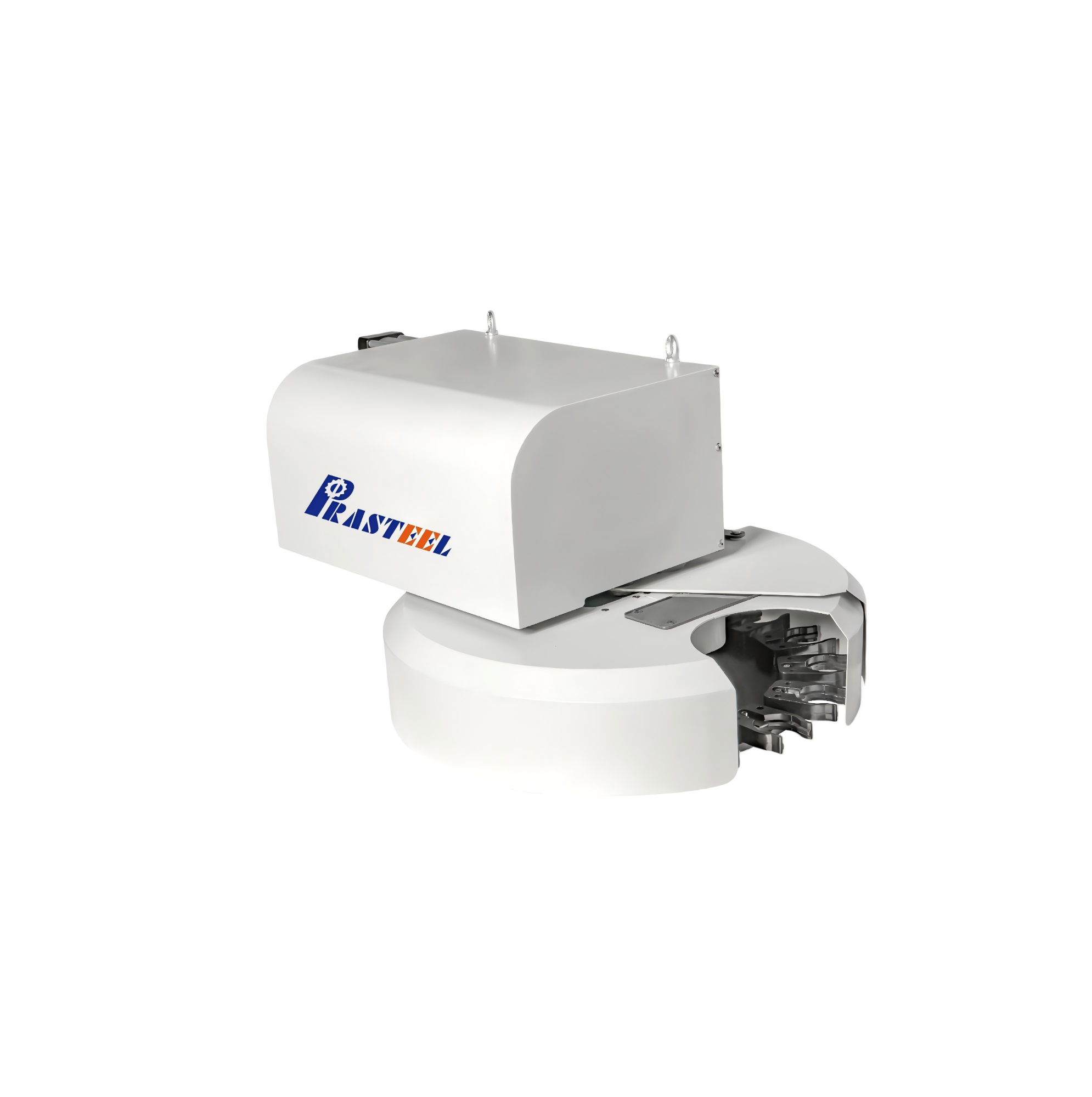

Hat Type Tool Magazine BT30-12T

1.Lightweight, aluminum alloy cutterhead, reduce load
2.The Geneva wheel segmentation mechanism is adopted, and the segmentation accuracy is high
3.Linear bearings are used for cutterhead sliding, which has low friction and long service life
4.Spring clamping arm, clamping tool, easy clamping, simple maintenance
Availability:
Quantity:
Inquire Add to Basket

  • BT30-12T

  • Prasteel

Pocket  SpecBT30/CAT30/DIN30/HSK40 BT40/CAT40/DIN40/HSK63BT50/CA50/DIN50/HSK100
Tool  Capacity8T/10T/12T/16T/20T/24T8T/10T/12T/16T/20T/24T            8T/16T/20T

Max.Tool  Diameter

With  Adjacent  Pocket  Full/Empty(mm)

              100/180                100/200              140/280
Max.Tool   Weight(kg)                   5                    8                    15
Tool  Selection  Time(sec/50hz)     0.4 sec/tool position       0.5 sec/tool position      0.8 sec/tool position
