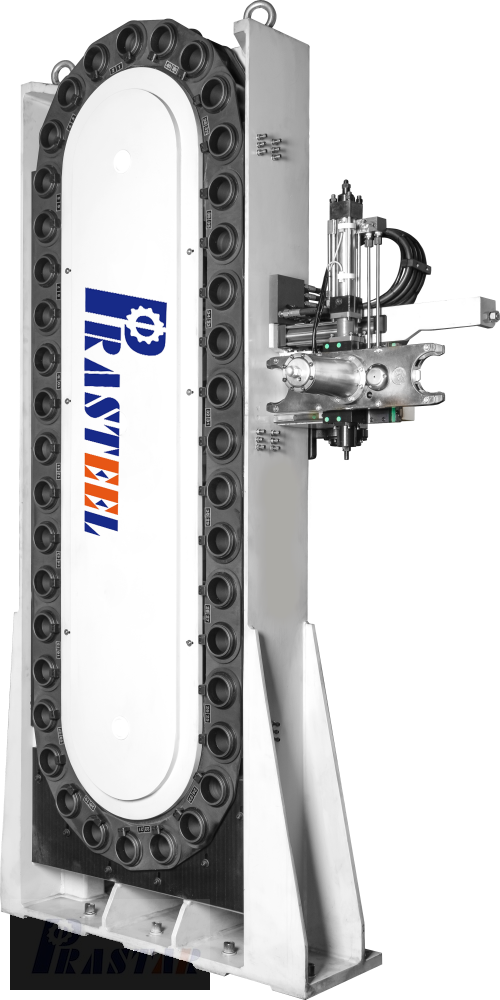

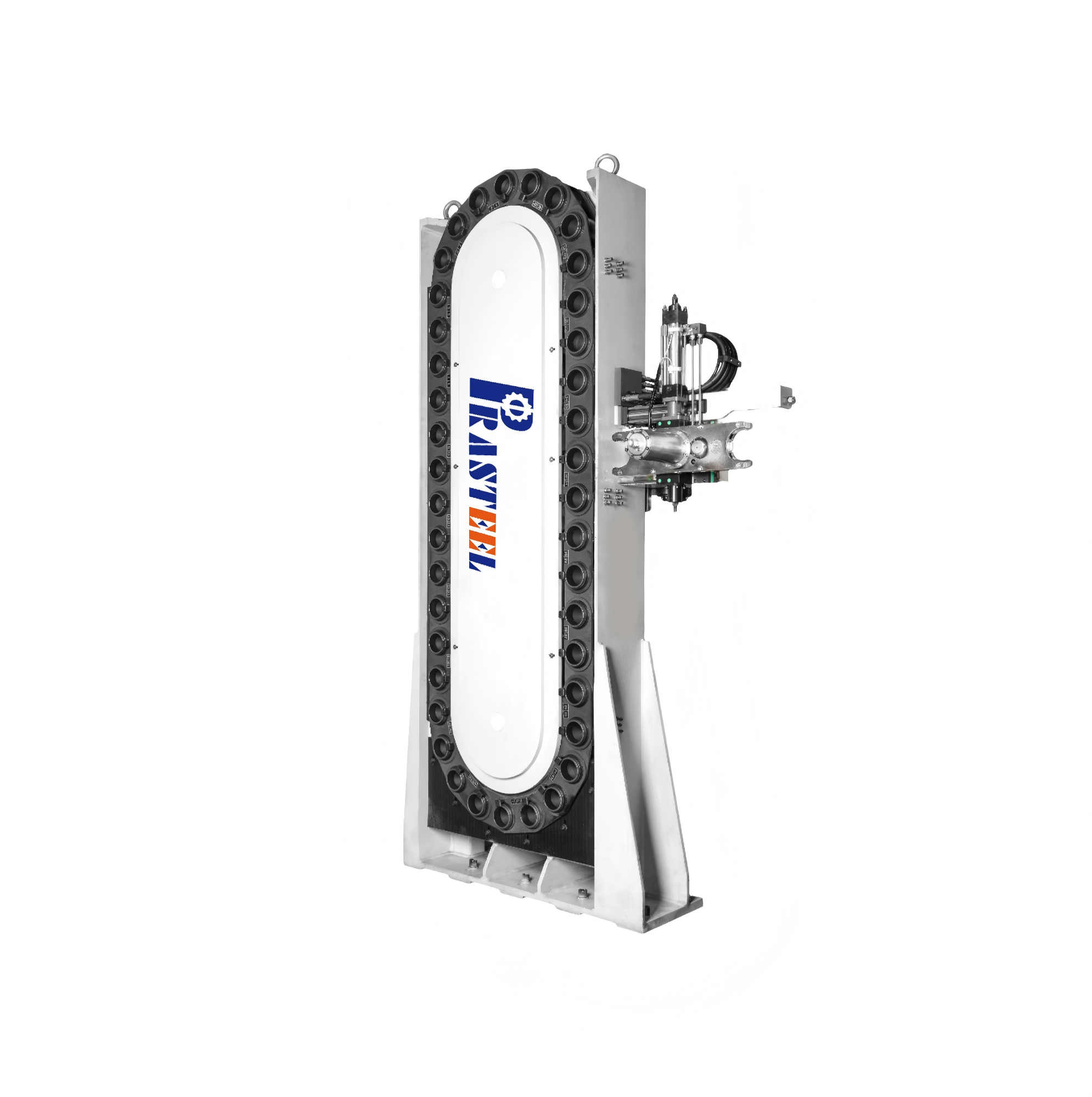

Chain Plate Hydraulic Swing Arm Tool Magazine 40T

Availability:
Quantity:
Inquire Add to Basket

  • 40T

  • Prasteel

Pocket  Spec              BT50/CA50/DIN50/HSK100
Tool  Capacity                                40T

Max.Tool  Diameter

With Adjacent Pocket Full/Empty(mm)

                            125/250
Max.Tool  Weight(kg)                                25
Tool  Change  Time(sec/50hz)                            3(ATC)
Magazine  Speed(sec/tool)                              0.85
Tool  Management  Mode
                           Random
Tool  Change  SelectionHydraulic  Rock  and  Gear  Machanism
